Preparations
22
5.4. Countercooling
Notice:
Securely attach all tubing to prevent slipping.
Observe the laws and regulations of the water distribution company valid in the
location where the unit is operated.
For applications near the ambient temperature, the
cooling coil must be connected to the water mains.
 Using tubing, connect the cooling coil (25a) to the tap
water supply, and lead the tap water in a sink
through the return connector (25b).
25a
25b

A specific water flow rate of 100 ml/minute is
sufficient to compensate for the characteristic
temperature.

For applications near ambient temperature
(20 °C), the cooling water temperature should at
least be 5 °C below the working temperature.
Installation cooling coil for

MB-13A, MB-19A, MB-13, MB-17, MB-19
Order no. 8 970 180

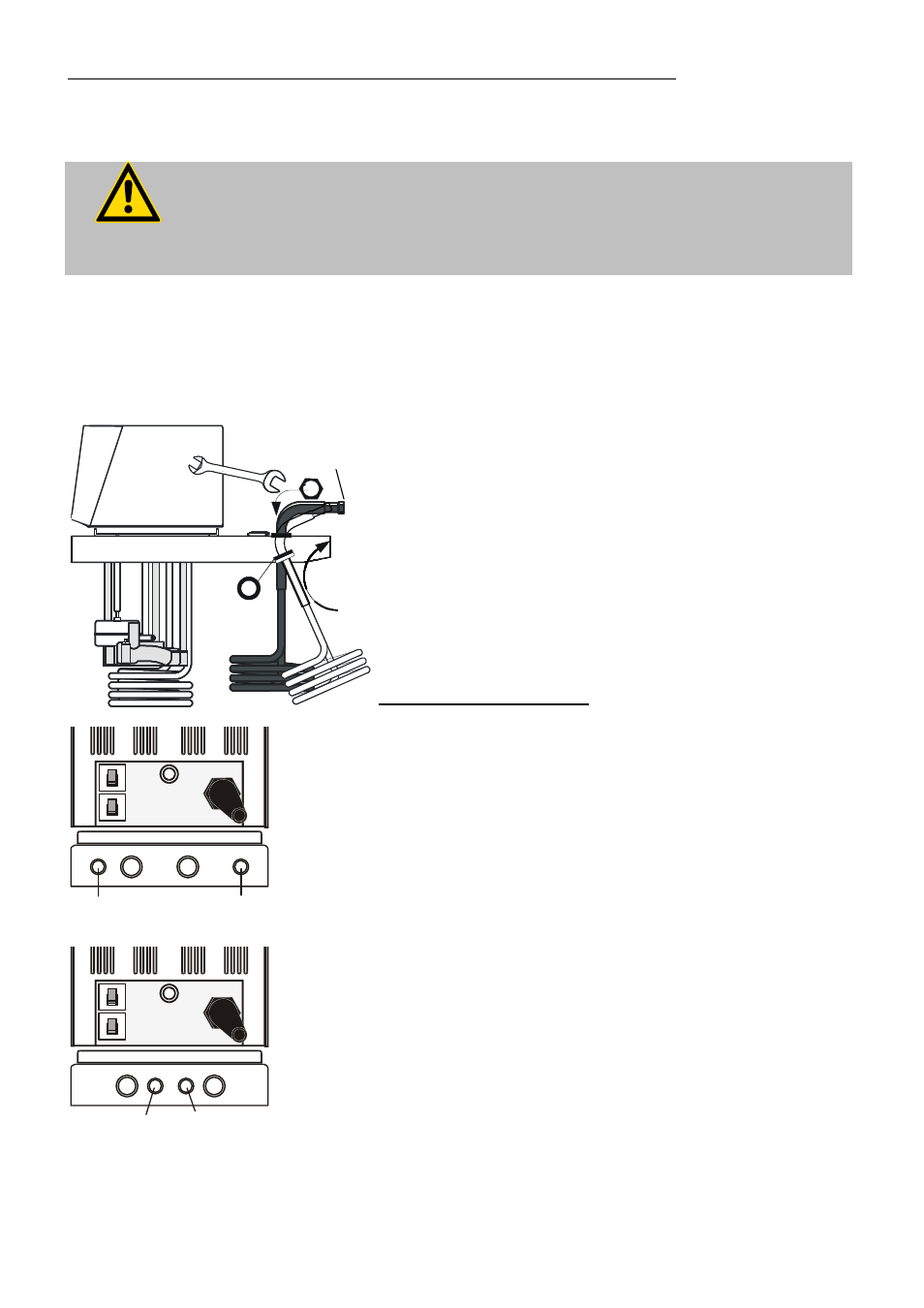

Mounting the cooling coil:
Fix the cooling coil to the bridge.
15
A
M
P
15
A
M
P
25a 25b
15
A
M
P
15
A
M
P
25a 25b
Cooling coil
 MB-5A / MB-7A / MB-5M
Cooling coil
 MB-5
