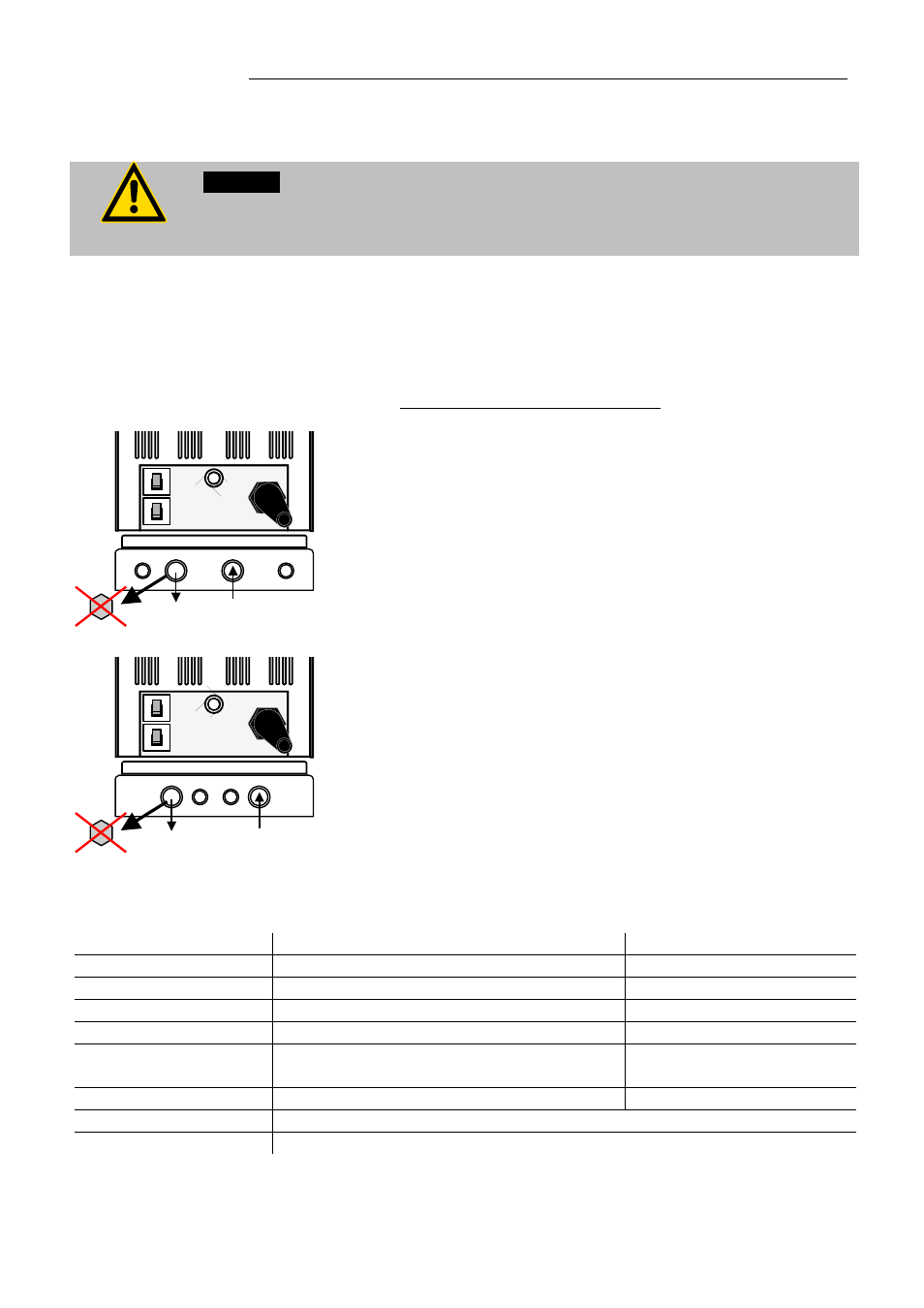

5.2. Temperature application to external systems
Caution: Securely attach all tubing to prevent slipping.
If the circulator is operated without external system, close the pump connector
(24a) with the cap nut.
15
A
M
P
15
A
M
P
24a 24b
15
A
M
P
15
A
M
P
24a 24b
The circulator is used for temperature application to
external, closed systems (loop circuit) with
simultaneous temperature application in the circulator
bath.
Connecting the external system
 Unscrew the collar nuts from the pump connector
(24a).
 Slide the tubing onto the pump connectors for feed
(24a) and return flow (24b).
 MB-5A / MB-7A / MB-5M
 MB-5
5.1.1. Tubing
Recommended tubing:
Order No. Length Temperature range
8 930 008 1 m CR
®
tubing 8 mm inner dia. -20 °C to 120 °C
8 930 010 1 m CR
®
tubing 10 mm inner dia. -20 °C to 120 °C
8 930 108 1 m Viton tubing 8 mm inner dia. -50 °C to 200 °C
8 930 110 1 m Viton tubing 10 mm inner dia. -50 °C to 200 °C
8 930 410 1 m Insulation for tubing 8 mm or
10 mm inner dia.
-50 °C to 100 °C
8 970 480 2 tubing clamps. size 1, tubing 8 mm inner dia.
8 970 481 2 tubing clamps. size 2, tubing 10 or 12 mm inner dia.
