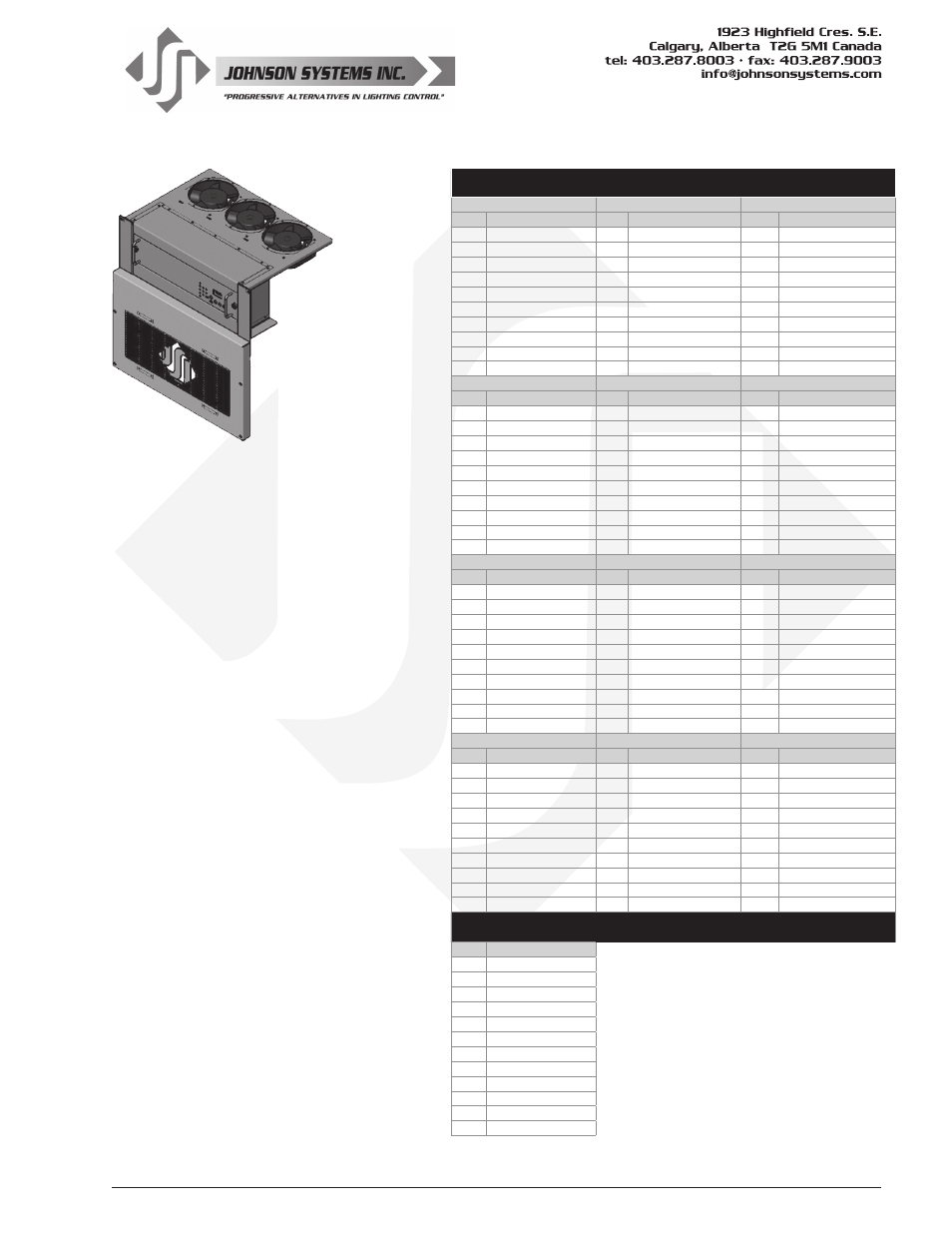

CD-3000-SV Dimmer Control Cable Pinout
#1 Top Columns
#2 Top Columns
#3 Top Columns
PIN FUNCTION
PIN FUNCTION
PIN FUNCTION
1
Dimmer 1
1
Dimmer 3
1
Dimmer 5
2
Dimmer 2
2
Dimmer 4
2
Dimmer 6
3
Dimmer 13
3
Dimmer 15
3
Dimmer 17
4
Dimmer 14
4
Dimmer 16
4
Dimmer 18
5
Dimmer 25
5
Dimmer 27
5
Dimmer 29
6
Dimmer 26
6
Dimmer 28
6
Dimmer 30
7
Dimmer 37
7
Dimmer 39
7
Dimmer 41
8
Dimmer 38
8
Dimmer 40
8
Dimmer 42
9
V+
9
V+
9
V+
10
NC
10
NC
10
NC
#4 Top Columns
#5 Top Columns
#6 Top Columns
PIN FUNCTION
PIN FUNCTION
PIN FUNCTION
1
Dimmer 7
1
Dimmer 9
1
Dimmer 11
2
Dimmer 8
2
Dimmer 10
2
Dimmer 12
3
Dimmer 19
3
Dimmer 21
3
Dimmer 23
4
Dimmer 20
4
Dimmer 22
4
Dimmer 24
5
Dimmer 31
5
Dimmer 33
5
Dimmer 35
6
Dimmer 32
6
Dimmer 34
6
Dimmer 36
7
Dimmer 43
7
Dimmer 45
7
Dimmer 47
8
Dimmer 44
8
Dimmer 46
8
Dimmer 48
9
V+
9
V+
9
V+
10
NC
10
NC
10
NC
#1 Bottom Columns
#2 Bottom Columns
#3 Bottom Columns
PIN FUNCTION
PIN FUNCTION
PIN FUNCTION
1
Dimmer 49
1
Dimmer 51
1
Dimmer 53
2
Dimmer 50
2
Dimmer 52
2
Dimmer 54
3
Dimmer 61
3
Dimmer 63
3
Dimmer 65
4
Dimmer 62
4
Dimmer 64
4
Dimmer 66
5
Dimmer 73
5
Dimmer 75
5
Dimmer 77
6
Dimmer 74
6
Dimmer 76
6
Dimmer 78
7
Dimmer 85
7
Dimmer 87
7
Dimmer 89
8
Dimmer 86
8
Dimmer 88
8
Dimmer 90
9
V+
9
V+
9
V+
10
NC
10
NC
10
NC
#4 Bottom Columns
#5 Bottom Columns
#6 Bottom Columns
PIN FUNCTION
PIN FUNCTION
PIN FUNCTION
1
Dimmer 55
1
Dimmer 57
1
Dimmer 59
2
Dimmer 56
2
Dimmer 58
2
Dimmer 60
3
Dimmer 67
3
Dimmer 69
3
Dimmer 71
4
Dimmer 68
4
Dimmer 70
4
Dimmer 72
5
Dimmer 79
5
Dimmer 81
5
Dimmer 83
6
Dimmer 80
6
Dimmer 82
6
Dimmer 84
7
Dimmer 91
7
Dimmer 93
7
Dimmer 95
8
Dimmer 93
8
Dimmer 94
8
Dimmer 96
9
V+
9
V+
9
V+
10
NC
10
NC
10
NC
CD-3000-SV Power Connector Pinout
PIN FUNCTION
1
Phase C
2
Phase B
3
Phase A
4
Neutral
5
No Connect
6
Ground
7
O/T N.C. (V+)
8
O/T N.C.
9
O/T N.O.
10 O/T N.C. (COM)
11 No Connect
12 No Connect
