WWW.JOHNSONSYSTEMS.COM 9

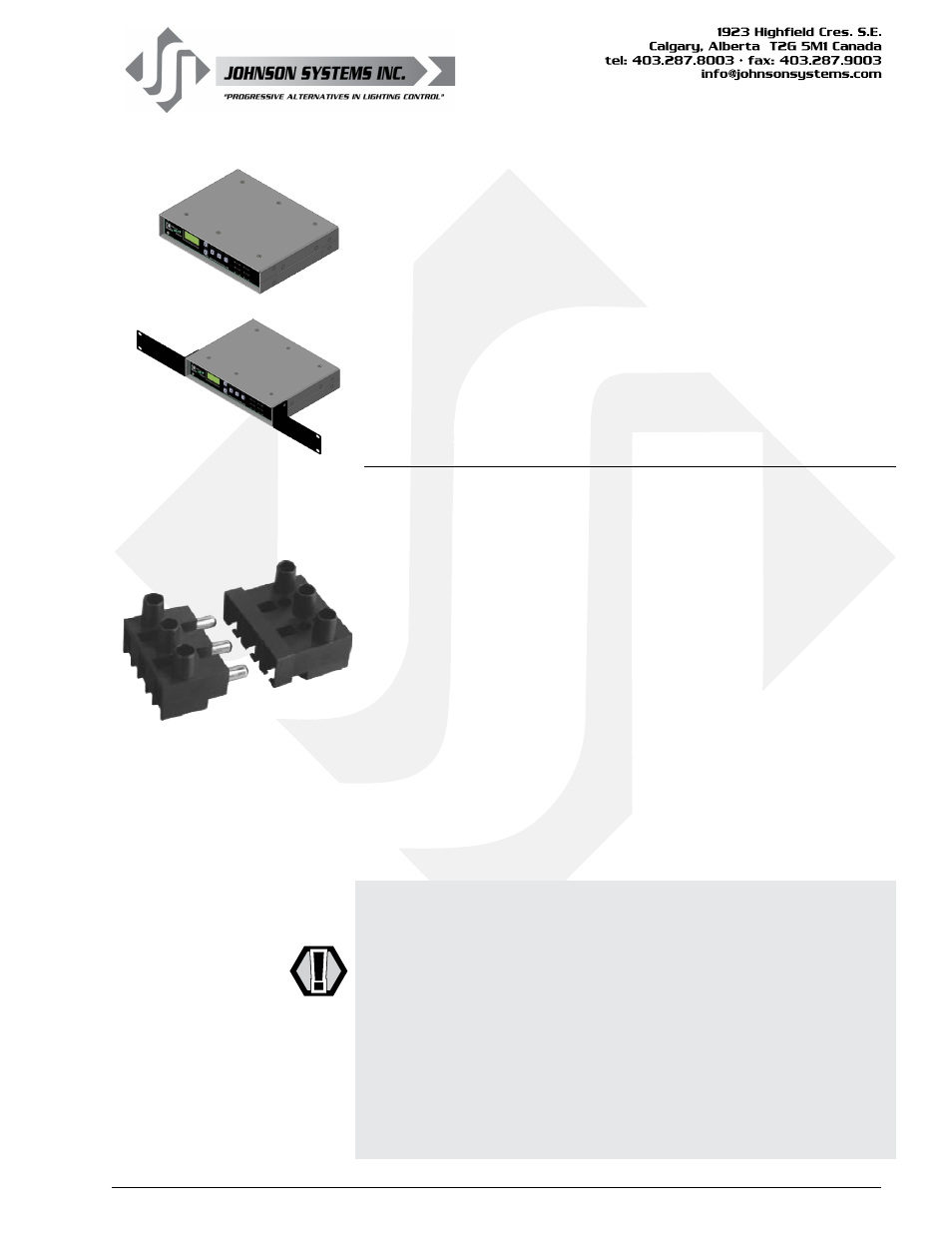

Models: DMX-6PM-XLR, DMX-6PM-TB, DMX-6PM-RJ45
For portable or permanent installation applications. Set on a flat surface in
just about any indoor location. Rubber feet on the bottom of the enclosure
help keep the enclosure in place.
Models: DMX-6PM-XLR-RM, DMX-6PM-TB-RM, DMX-6PM-RJ45-RM
For 19 " rack mount applications. Two (2) 19" rack mounting brackets are
provided. To install the brackets, use a #2 Philips screwdriver to remove the
four (4) (two (2) per side) mounting screws on the front-left side and front-
right side, and fasten the brackets in place using the same mounting screws.
Install the unit in a 19" rack using standard rack mounting hardware (not
included).
Power Supply Input Connections
Models: DMX-6PIM, DMX-6PIM-FM
AC Power Supply Input: 100-240VAC, 1P3W, 20A (MAX), 50/60Hz.
With the lid removed, the AC power supply input termination area is located
at the top of the enclosure. A break-away style terminal block is provided for
the AC power supply input connections. Two (2) 1.109" knockouts (suitable
for 0.75" conduit) are located on the top of the enclosure. The top-left
knockout location is recommended for the AC wire (conduit) entry. Unplug
the terminal block to terminate the three (3) wires. Use a 1/8" flathead
screwdriver to torque the power terminals to the specification provided below.
Once the wire termination is complete, plug the terminal block back in and
ensure it is fully seated. Verify all wiring terminations and secure the lid
before powering up.
• AC power supply connections: HOT (LINE), NEU (NEUTRAL),
GND (GROUND)
• Use wire size #18 to #12 AWG (stranded or solid core) copper wire only,
rated for 167°F (75°C) minimum.
• Strip insulation length to 0.25" (6.4mm).
• Torque power terminals (HOT, NEU, GND) to 4.5 IN-LBS (0.5 NM).
WARNING: AC power supply input requires an external disconnect
(circuit breaker)!
WARNING: AC wiring termination must be completed by qualified
personnel only!
WARNING: For connection use copper wire only, rated for
167°F (75°C) minimum.
WARNING: Ensure all AC power supply connections are tightened to
the torque specification provided, before turning on the AC
power supply!
WARNING: Ensure the enclosure lid is secure before turning on
the AC power supply!
