WWW.JOHNSONSYSTEMS.COM 4

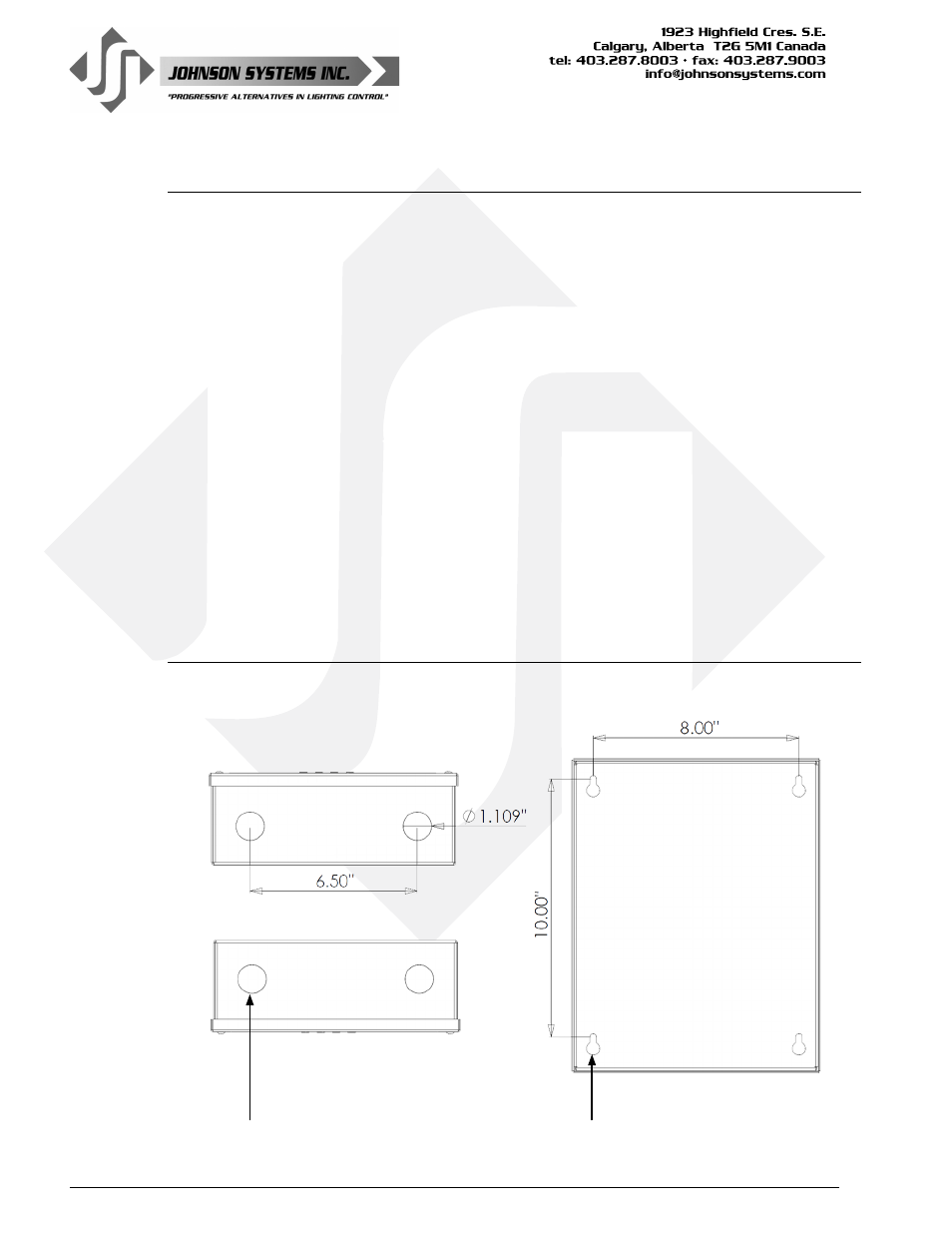

(4) Knockouts For Wire/Conduit Entry (4) Mounting Keyholes For 1/4" (6mm) Hardware
Characteristics
• Power Supply Requirements
• DMX-6PM (all models) = 12VDC (adapter included).
• DMX-6PIM (installation version) = 90 to 264VAC, 47-63HZ, 1Ø 3 wire.
• Environment
• Temperature Range: 23°F (-5°C) to 104°F (40°C) ambient.
• Humidity Range: 0% to 90% non-condensing.
• Isolation
• 2,500 Vrms minimum per DMX input.
• Auto-resetting 240V polyswitch fusing of all DMX inputs and output.
• Physical
• DMX-6PM (All models) = 9 " x 7 " x 1.75 " (23 cm x 18 cm x 4.4 cm).
• DMX-6PIM (Installation box version) = 9.5 " x 12 " x 3.4 " (24 cm x 30 cm x 8.6 cm).
• DMX-6PIM-FM (Flush Mount cover for above) = 11.7 " x 14.2 " (30 cm x 36 cm).
• Weight
• DMX-6PM (Portable/table top version) = 3.6 lbs. (1.6 Kg).
• DMX-6PIM (Installation box version) = 7.4 lbs. (3.3 Kg).
• Material
• 18-gauge steel CRS.
• Finish
• Hammer texture black powder coat.
Drawings & Details
Models: DMX-6PIM, DMX-6PIM-FM
