Models: DMX-6PM-RJ45, DMX-6PM-RJ45-RM

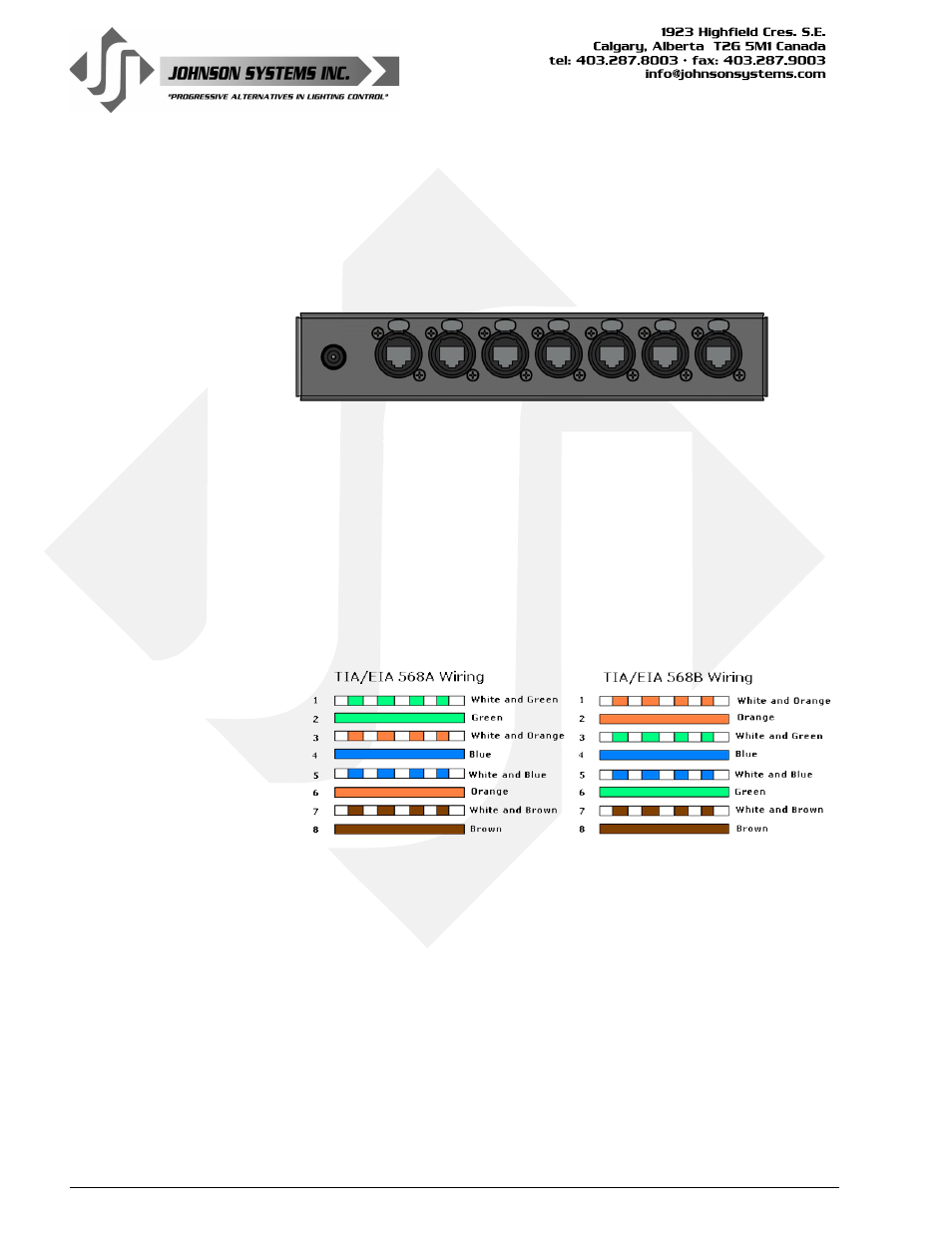

DMX is connected via RJ45 (etherCON) type connectors, located on the rear
panel of the enclosure. There are seven (7) female connectors for the DMX
inputs and output. For connection, use conventional Ethernet cables (CAT5 or
CAT5e) terminated in either EIA/TIA 568A or 568B wiring standards. Neutrik
etherCON cable connectors may be installed to lock the connectors in place.
RJ45 Connection Details (Pinout)
Pin 1 = DMX Data+
Pin 2 = DMX Data-
Pin 3 = Not Used / No Connection
Pin 4 = Not Used / No Connection
Pin 5 = Not Used / No Connection
Pin 6 = Not Used / No Connection
Pin 7 = DMX Shield / Common
Pin 8 = DMX Shield / Common
