10 Description
If the hardware handshake cannot be deactivated, then the RS-232 cable can be
used as follows:
3 - STATUS
Status LED
4 - ANALOG OUT
Analog outputs (for logging leakage rate and backing pressure)
Electrical insulation (max. 60 V DC, 25 V AC against GND)
Connection plug arrangement
The analog outputs can be freely configured.
► For other layouts, see installation manual for mass spectrometer module
LDS3000.

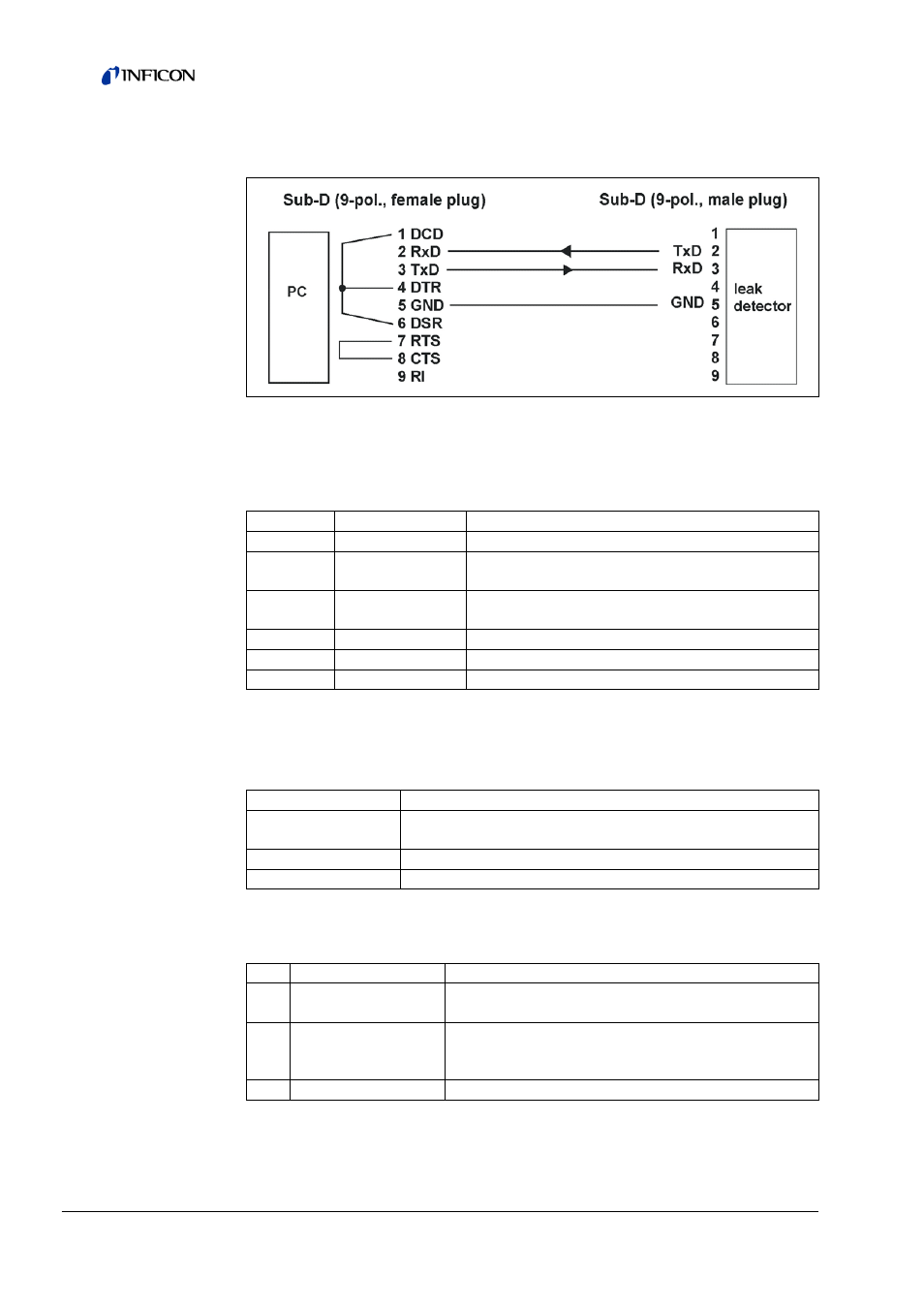

Fig: 3 Connection with RS-232 cable (in case hardware handshake cannot be
deactivated)
Color Status Meaning
Red illuminates Unit not functional or defective
Red flashes
Not ready for operation, communication to mass
spectrometer module is not available
Cyan illuminates
Ready for operation; communication to mass
spectrometer module available
Green Flashes quickly Boot loader active, ready for software update
Green Flashes slowly Data reception on RS232
Yellow Flashes slowly Data reception on RS485
Voltage range 0 ... 10 V
Precision
±15 mV offset, additional ±1% from measurement (current
output voltage) as linearity error (at 25 °C)
Resolution typ. 2.5 mV
Load > 10 kΩ
Pin Name Factory setting mass spectrometer module
1 ANALOG-OUT 1
Leak rate mantissa
1 ... 10 V; linear; in used unit
2 ANALOG-OUT 2
Leak rate exponent
1 ... 10 V; 0.5 V / decade; step function;
1 V = 1 x 10
-12
; in used unit
3 ANALOG-OUT-GND -
