Assembly Instructions

INCRA Wheel Kit

1

Assembly Instructions for the INCRA Wheel Kit

Fig. 1 Wheel Kit

w w w. i n c r a . c o m

(1) Front Wheel Connector Bracket
(1) Front Wheel Pedestal
(1) Front Wheel Foot Pedal
(1) Front Wheel Caster
(2) Leg Wheel Bracket
(2) Leg Wheel

(8)

1/4

-20 x

1/2

Hex Bolt

(2)

1/4

-20 x 2

1/4

Hex Bolt

(6)

5/16

-18 x

1/2

Hex Bolt

(2)

5/16

-18 x 3

3/4

Hex Bolt

(8)

1/4

-20 Square Nut

(2)

1/4

-20 Locking Nut

(6)

5/16

-18 Hex Nut

(2)

5/16

-18 Locking Nut

(11)

1/4

” Flat Washer

(4)

1/4

” Lock Washer

(4)

1/4

id x

1/4

Thick Nylon Washer

(4)

5/16

id x

3/16

Thick Nylon Washer

Parts List:

Step 1. Assemble Leg Wheels.
First, loosley install two sets of

1/4

-20 x

1/2

bolts,

1/4

-20 square

nuts and

1/4

” washers in each wheel bracket as shown in

Fig. 2.

Second, install a rubber wheel in the lower hole on each wheel
bracket using the

1/4

-20 x 2

1/4

hex bolt,

1/4

-20 locking nut,

1/4

steel washer and

1/4

” thick Nylon washers as shown in

Fig. 2.

Be sure that the two

1/4

” thick Nylon washers are against the hub

of the wheel and positioned INSIDE the wheel bracket.

Install,

but do not fully tighten the locking nut on the 2

1/4

hex bolts

at this time.

Step 2. Install Leg Wheels on Legs.

Orientation: When mounting the stand to offset tables, the two

leg wheels should be located under the end of the table WITH

the router cutout in it. For center mount router tables, the two

leg wheels can be on either end of the table.

Remove the levelers from the two legs on which the wheels will

be installed. As shown in

Fig. 3, slide the (2) square nuts and

the long hex bolt head on each wheel assembly into the T-slot

on the leg extrusion. Adjust the vertical position of each wheel

for stability, then firmly tighten all bolts. Tighten the locking nut

enough to remove all side play between the wheel and the

inside of the wheel bracket, but still loose enough for the wheel
to pivot freely.

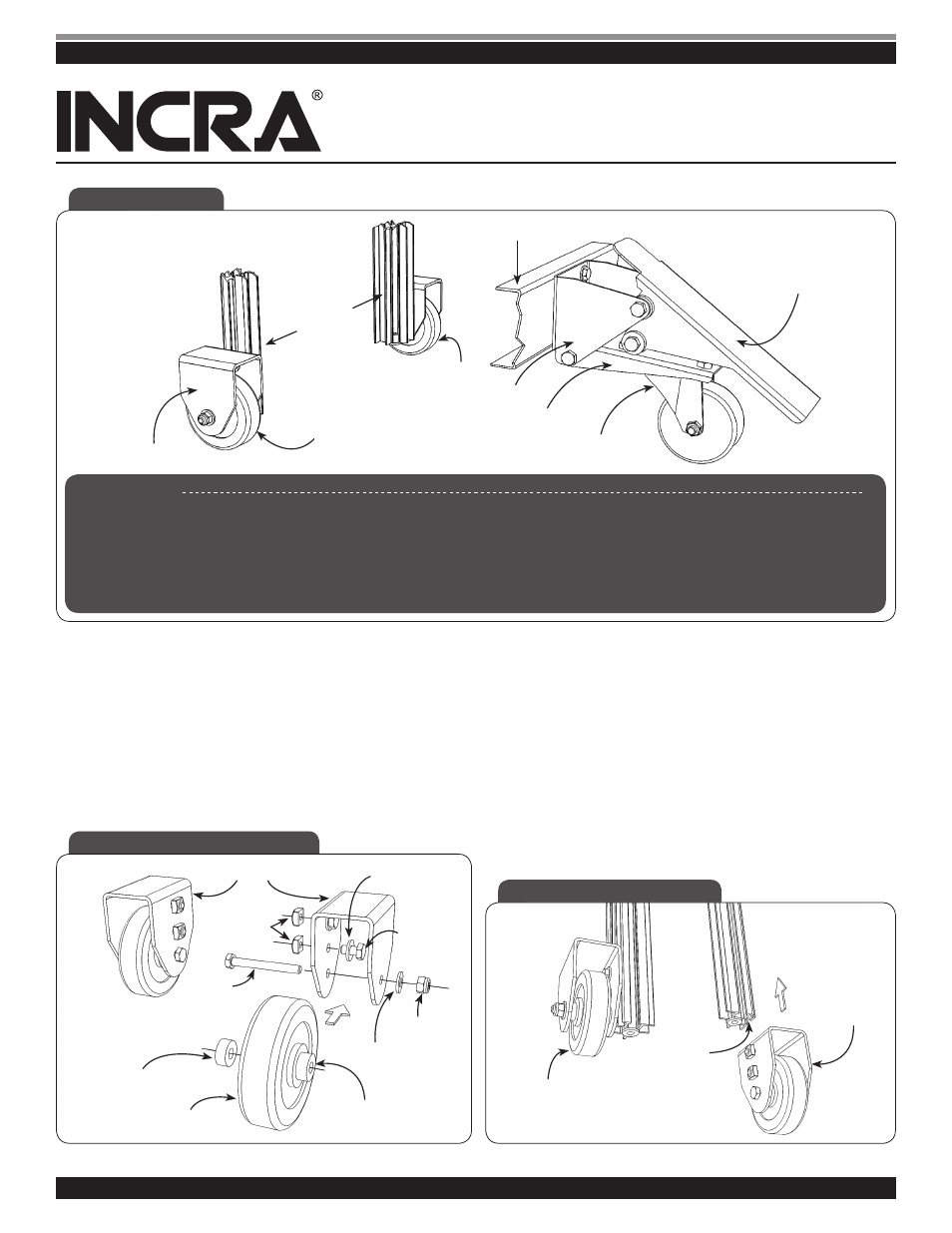

Fig. 2 Assemble Leg Wheels

Fig. 3 Install Leg Wheels

Table Stand Legs

Leg Wheel (2)

Wheel Stringer on Table Stand

Leg Wheel Bracket (2)

Front Wheel Foot Pedal

Front Wheel Caster

Front Wheel Pedestal

Front Wheel Connector Bracket

Leg Wheel Bracket

Wheel

1/4

-20

Square Nut

1/4

-20 x 2

1/4

Hex Bolt

1/4“

Thick Nylon Washer

1/4“

Thick Nylon Washer

1/4“

Washer

1/4

-20

Locking Nut

1/4

-20 x

1/2

Hex Bolt (4)

1/4“

Washer (4)

Outfeed Wheel

Assembly

Capture Square

Nuts & Hex Bolt

in T-Slot on Leg

Infeed Wheel

Assembly

Leg Wheel (2)
