INCRA CleanSweep Adaptor

Note: The instructions below will replace Step 3 of the CleanSweep’s Owner’s Manual. Just assemble the Clean-
Sweep through Step 2 of the CleanSweep Manual, then follow the instructions below. Finish the CleanSweep
assembly by picking up with Step 4 of the CleanSweep Manual.

MADE IN THE

USA

Attaching the CleanSweep Adaptor

The CleanSweep Adaptor is designed to provide a variety of functions. First and foremost it permits use of the CleanSweep
Downdraft Dust Collection Cabinet with router tables that do not have a rabbeted “lip” or “ledge” to support and level the router
plate. These table types often use corner mounted levelers or some other means to support the plate. The CleanSweep Adaptor
permits continued use of the corner mounted levelers but can also be used to augment or replace existing levelers with it’s built
in (10) plate levelers. The CleanSweep Adaptor is NOT required for INCRA Router Tables and will only work with tables that have
an opening sized to fit the standard 9-1/4” x 11-3/4” router plate or lift.

C

LEAN

S

WEEP

Downdraft Dust Collection Cabinet

Downdraft Dust Collection Cabinet

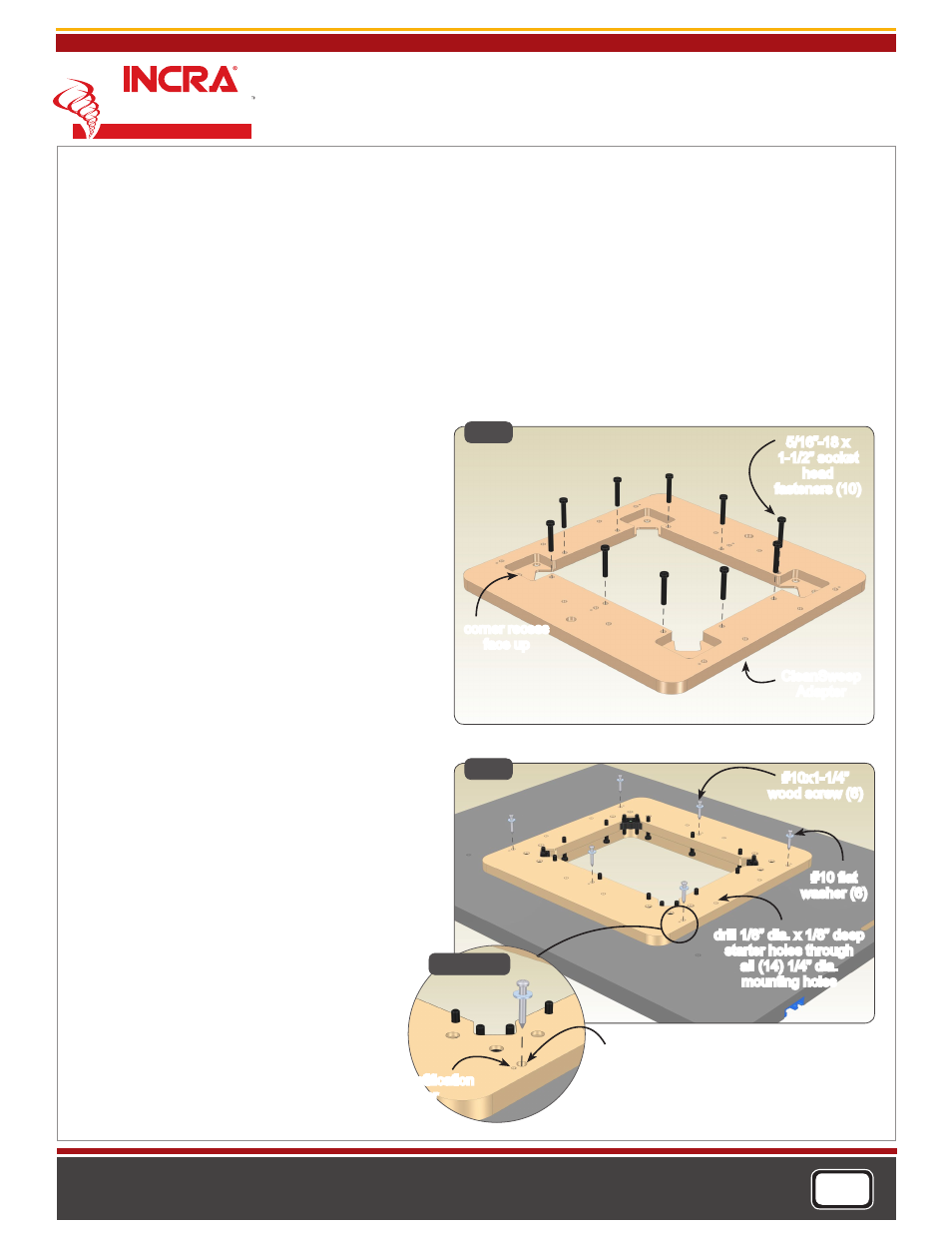

1. Set the adaptor on your benchtop with the (4)
corner recesses face up and using the supplied 5/32”
straight hex tool and your power drill/driver, thread the
(10) 5/16-18 x 1-1/2” Socket head fasteners into the
(10) holes around the inside perimeter of the adaptor,
Fig 1. Screw the fasteners in until they just start to pro-
trude through the opposite face of the adaptor.

2. Remove any existing router plate or router lift and
router from your router table then turn the table up-
side down for ease of assembly. You can leave the (4)
corner mounted levelers in place but remove any addi-
tional leveling accessories provided by the router table
manufacturer. Lower the adaptor onto the table so
that the socket head fasteners set inside your table’s
plate opening and the corner levelers (if applicable)
nest into the recesses on the adaptor. Drill 1/8” diame-
ter starter holes to a depth of ONLY about 1/8” in your
router table through each of the (14) 1/4” diameter
mounting holes in the adaptor. Attach the adaptor us-
ing (6) #10 x 1-1/4” wood screws with washers through
the (6) holes that have a small diameter 1/8” diameter
hole next to them,

Fig 2 and Detail 2A. The small hole

is only for the purpose of identifying the correct (6)
holes for mounting the adaptor.

Fig.1

5/16”-18 x

1-1/2” socket

head

fasteners (10)

corner recess

face up

Fig.2

#10x1-1/4”

wood screw (6)

drill 1/8” dia. x 1/8” deep

starter holes through

all (14) 1/4” dia.

mounting holes

CleanSweep

Adapter

#10 flat

washer (6)

use larger 1/4” dia.

hole for mounting

Detail 2A

1/8” hole for identification

of (6) adapter

mounting holes
