Tighten the forward black thumbscrew
Tighten the thumbscrew located at the forward end
of the outfeed gold carriage. This locks the infeed and
outfeed carriages together.
Lock the carriage clamp in place
Pull the carriage clamp up to lock the carriage in
place and pivot the flip clip back to its original position.
Loosen the rear black thumbscrew next
to the hairline cursor.
11
Outfeed Fence Adjustment
Most offset fence operations can be accomplished with an
infeed fence adjustment, but on occasion you may wish to
fine-tune the outfeed fence without altering the infeed
fence position. Here’s how it is done. See Fig. 18 as you
read the steps.
Tighten the rear black thumbscrew
It’s located next to the hairline cursor. This
thumbscrew locks the position of the infeed carriage.
Place carriage clamp in micro adjust
mode and loosen forward black
thumbscrew
Pivot the flip clip under the carriage clamp and unlock the
clamp. Now loosen the black thumbscrew located at the
forward end of the outfeed (gold) carriage.
Micro adjust the outfeed fence position
Set the red dial on the micro adjust knob located at
the rear end of the outfeed (gold) carriage to read zero.
Rotate the knob clockwise to move the outfeed fence
forward. If you find it necessary to micro adjust the fence
backward from the original zero scale reading you must
rotate both micro adjust knobs (black and red)
counterclockwise by the same amount.
2
3
4 1

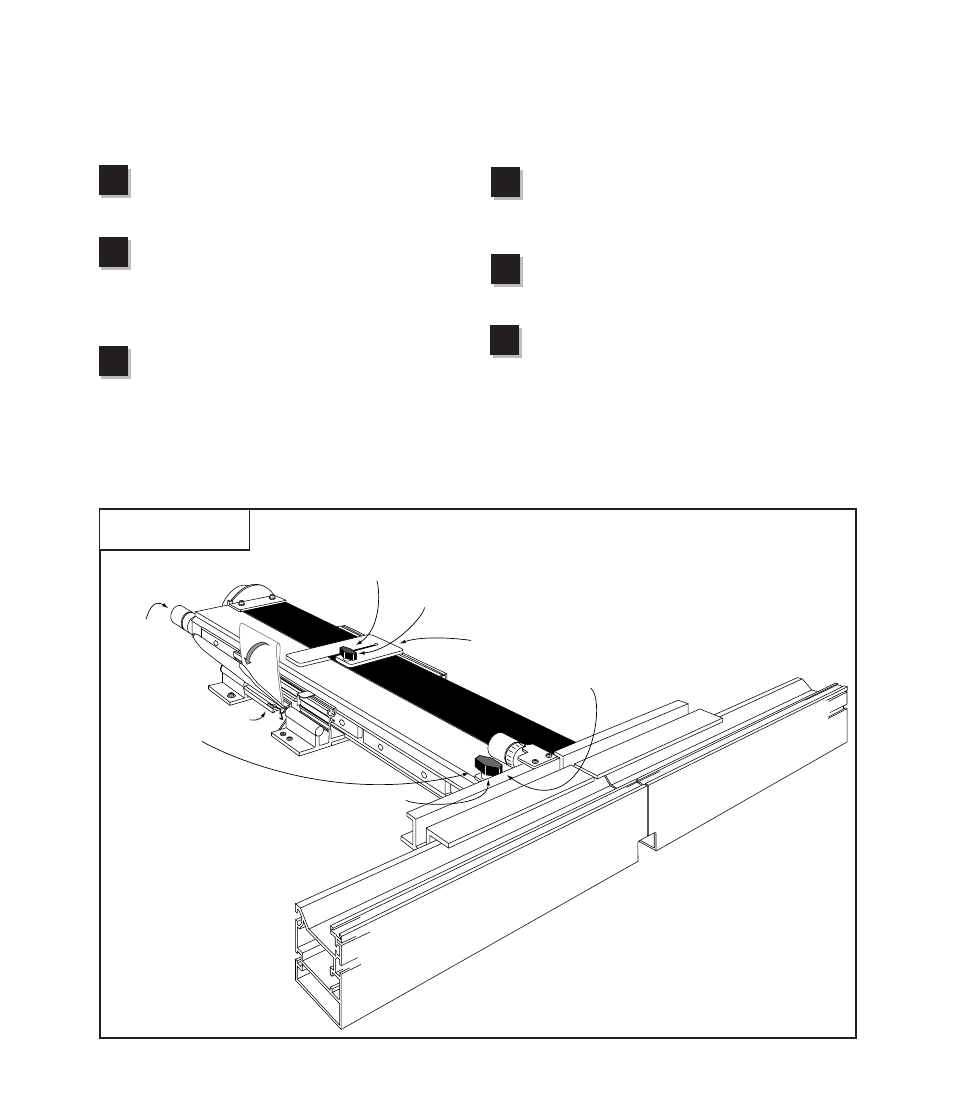

Fig. 18
Outfeed fence adjustment
First:
Tighten rear black thumbscrew
Second:
Place carriage clamp in micro
adjust mode and loosen forward
black thumbscrew
Third:
Turn knob with
red dial
Fourth:
Tighten forward black thumbscrew
Fifth:
Lock carriage clamp
Sixth:
Loosen rear black thumbscrew
5
6
Rear black thumbscrew
Forward black
thumbscrew
