GeoDesy FSO Next series User Manual
Page 18
GeoDesy Kft.
H-1116 Budapest, Kondorfa str. 6

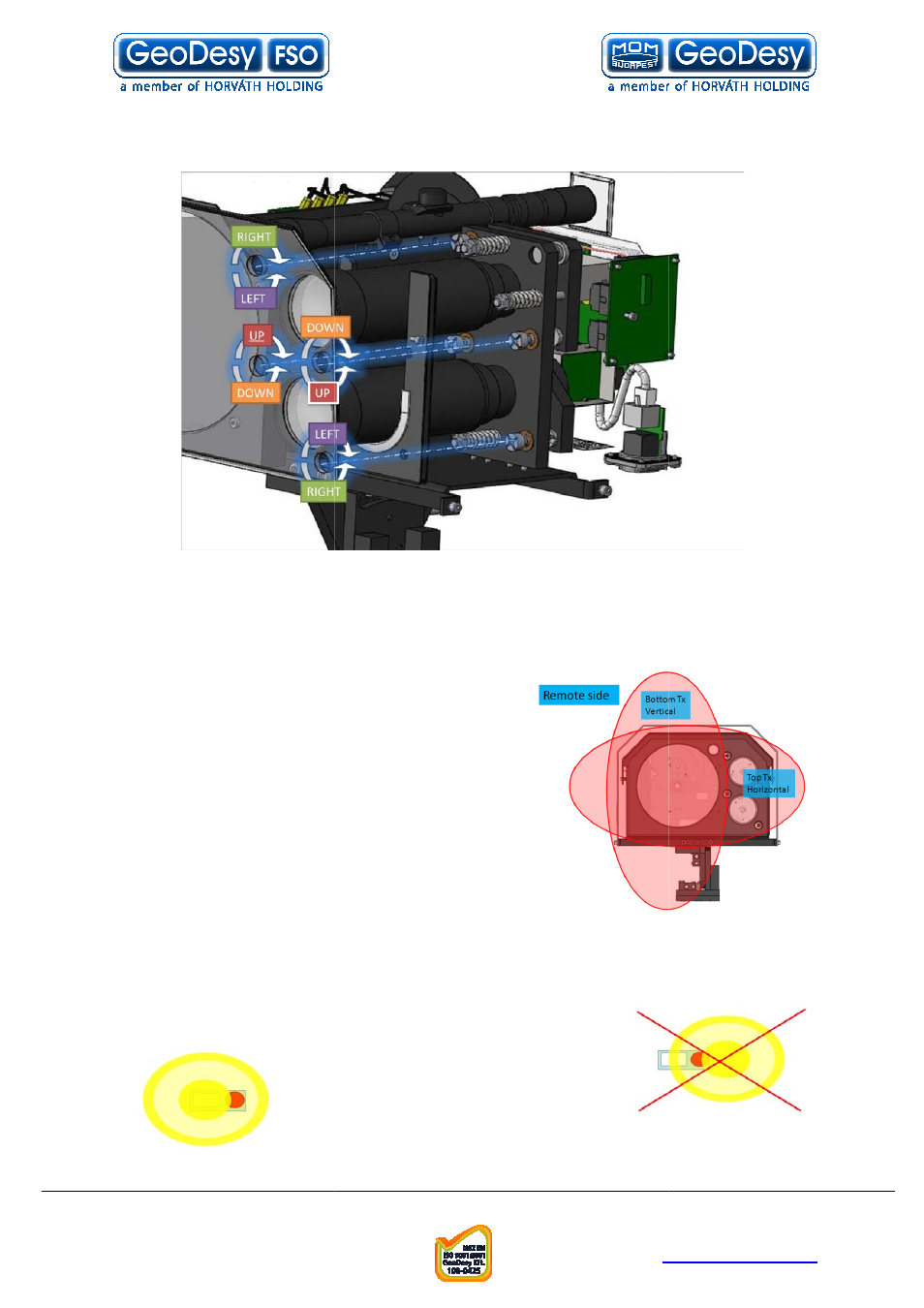

The transmitters can be moved both in vertical and horizontal directions. See image:
Important to note that we need a minimum 35cm cross screw driver. When the
screws are fitted the transmitters should be covered in the least necessary grade.
The fine adjustment should be done by Geodesy
only. Unauthorized access might cause permanent damage, or calibration
error to the laserhead.
Note: Geodesy FSO shall not be responsible for any failures from improper handling
of the device. If any other screw than the coarse lockers or the fine adjustment is
moved, might decrease the stability of the installation.
Trick for the reliable alignment
Please note that the beam has a powerfull ring on the side of the head and easily can be
set to this ring but this is far not as big as the core
part of the beam. So every time you have an
alignment please make sure that when you see the
maximum LED s or a relativly high recei
Keep on moving to determine where the core part of
the beam is. This can be done easily by looking at
the received level you will see that the received level moves up then it will start move
down than up again. During this time you just had the
you have any doubt on how to do the alignment please contact your distributor for further
help. Or contact GeoDesy FSO technical support.
Telefon: 06
. 6-8.
E-mail: info@geodesy
http://www.
18
The transmitters can be moved both in vertical and horizontal directions. See image:
note that we need a minimum 35cm cross screw driver. When the
screws are fitted the transmitters should be covered in the least necessary grade.
The fine adjustment should be done by Geodesy-FSO trained engineers
cause permanent damage, or calibration
Note: Geodesy FSO shall not be responsible for any failures from improper handling
of the device. If any other screw than the coarse lockers or the fine adjustment is
the stability of the installation.
Trick for the reliable alignment
beam has a powerfull ring on the side of the head and easily can be
set to this ring but this is far not as big as the core
part of the beam. So every time you have an
alignment please make sure that when you see the
maximum LED s or a relativly high received level.
Keep on moving to determine where the core part of
the beam is. This can be done easily by looking at
the received level you will see that the received level moves up then it will start move
down than up again. During this time you just had the head moving into one direction. If
you have any doubt on how to do the alignment please contact your distributor for further
technical support.
Telefon: 06-1-481-2050
Fax.: 06-1-481-2049
http://www.geodesy-fso.com
