5 The mounting bracket
In the following chapter you will find detailed description of the bracket fastenings.
5.1 Mounting brackets for
GeoDesy FSO provides the mounting bracket and all the necessary components

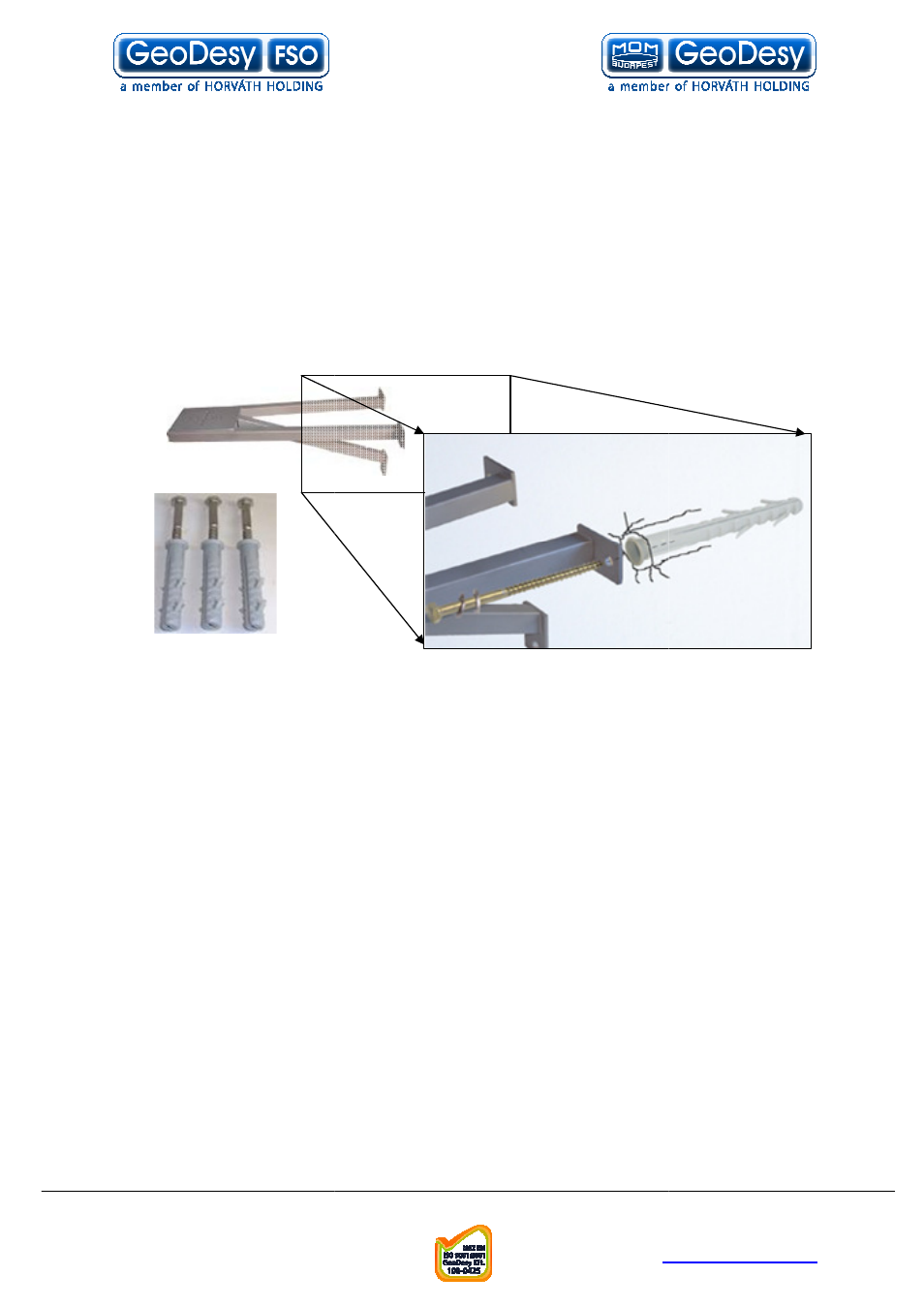

for X series units. A simple fixing technique of this bracket can be seen on the
following figure, required tools are as follows:
- drilling machine
- 10 mm wrench
Bracket sizes:
Length:
Leg Width:
Head Width:
Drill size:
Installation steps:
• Place the bracket on the wall
• Mark the wall with a permanent marker
• Use your 10mm wall drill to drill all of the holes into the wall
• Clean the holes
• Place the wall-plugs into the holes (please note that some times you need to
use hammer to put the wall
careful not to break the wall
• Place the bracket to the wall an line it up to the holes
• Put the screws into the wall
(please see the figure above)
• Tighten up the screws
Packet list for the bracket:
3pcs 8x110 screw for bracket fixing
3pcs 8x100 plastic wall-plug for bracket fixing
Telefon: 06
. 6-8.
E-mail: info@geodesy
http://www.
13
The mounting bracket
you will find detailed description of the bracket fastenings.
Mounting brackets for the X Series
provides the mounting bracket and all the necessary components
units. A simple fixing technique of this bracket can be seen on the
following figure, required tools are as follows:
Length: 463mm
Leg Width: 263mm
Head Width: 130mm
Drill size:
10mm wall drilling
Place the bracket on the wall
with a permanent marker
Use your 10mm wall drill to drill all of the holes into the wall
plugs into the holes (please note that some times you need to
use hammer to put the wall-plugs into the hole, if you have to please be
careful not to break the wall-plug
)
Place the bracket to the wall an line it up to the holes
Put the screws into the wall-plug through the hole on the leg of the bracket
(please see the figure above)
Tighten up the screws
Packet list for the bracket:
s 8x110 screw for bracket fixing
plug for bracket fixing
