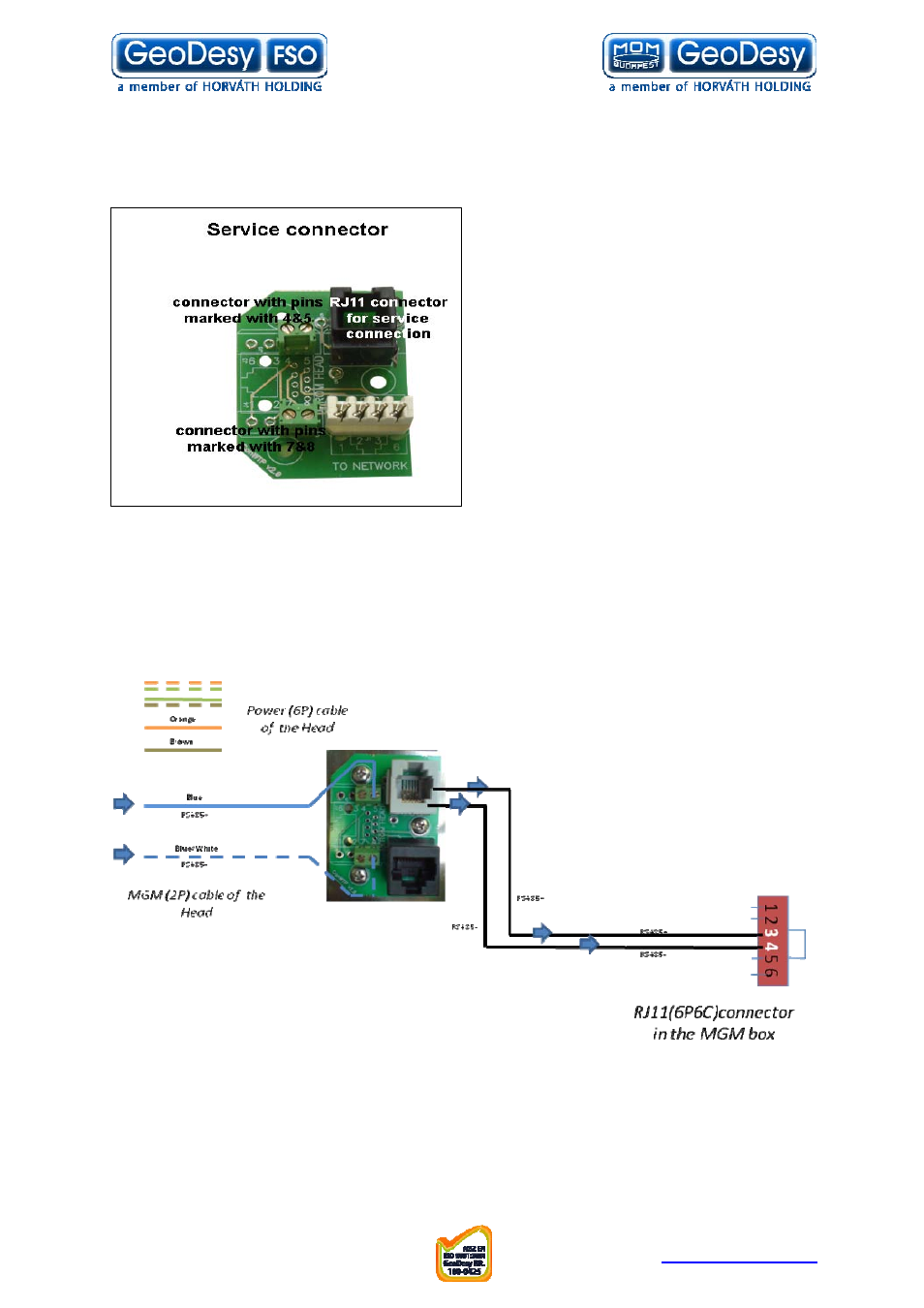

If you have a TC head
Using the RJ11 Sevice Connector and
the two green connectors you can
connect your management indoor unit to
the head.
The necessary signals can be found on
the blue and blue-white wires of the
head power cable. You have to connect
these two wires into two pins of the four
of the two green connectors. These pins
are connected to the pins of the RJ11
Service Connector. The order of
connections is the following:
Pin of the green connector 4
5 7 8
Pin of the RJ11 Service Connector 4 5 3 2
More details about the management please find to see its own Users’ Manual.
(please connect the blue and the blue-white wires to the Pin number 4&7 in case of
The Web-Based GD-View MGM unit)
