9.2.3 Fixing the heads
Your PRONTO head can be fixed to its stand
with an Alignment Base Unit (ABU). On the

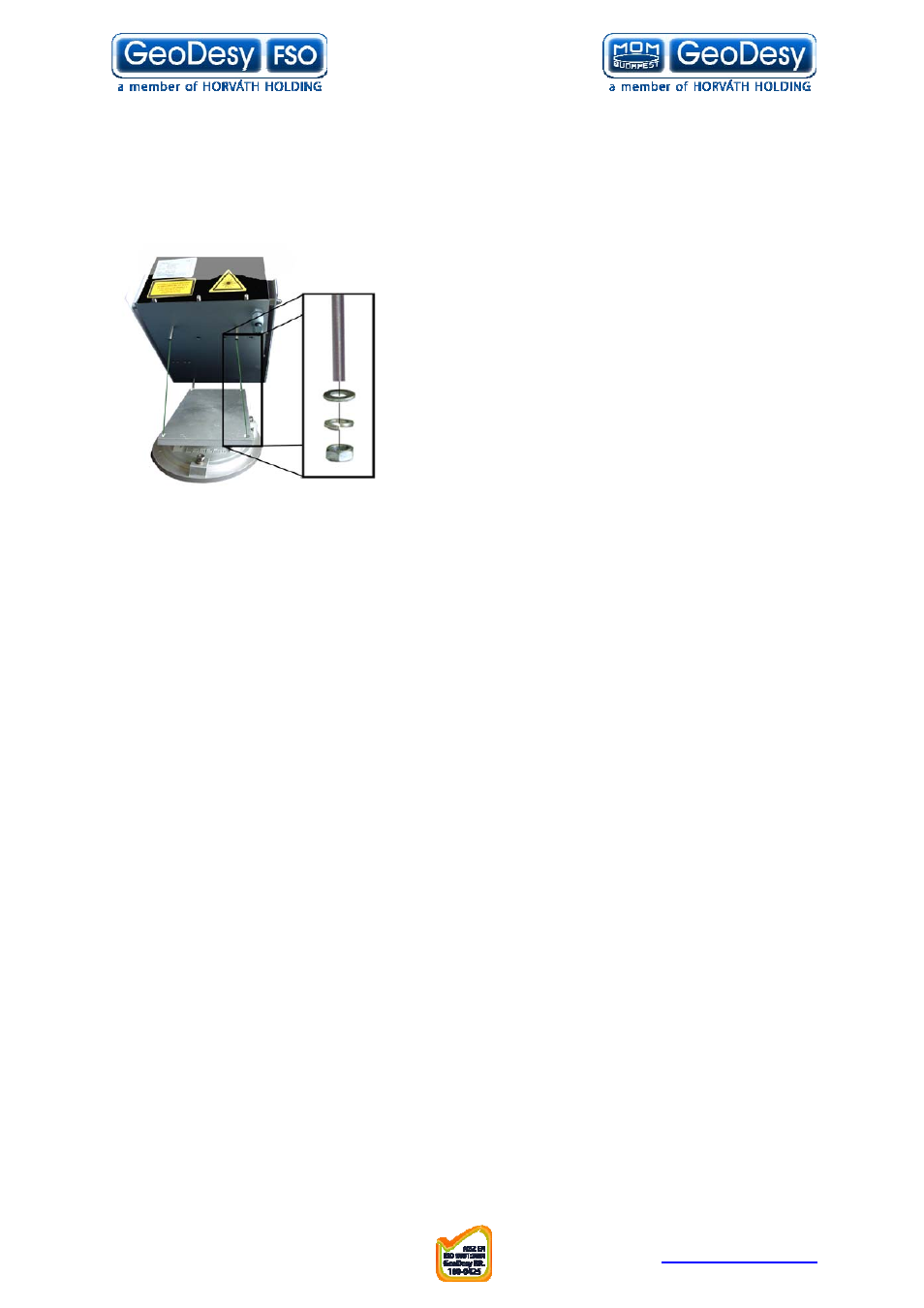

figure you can see an ABU, and a plinth of a
PRONTO unit, and the necessary fixing parts.
The necessary nuts and washers can be found
on the legs of the head. The steps of the fixing
are:
• First, fix the ABU to the stand using the
washers and nuts
• Place the head to the ABU
• Fix the bolts with the nuts, using the
washers
• Tight up all the nuts.
