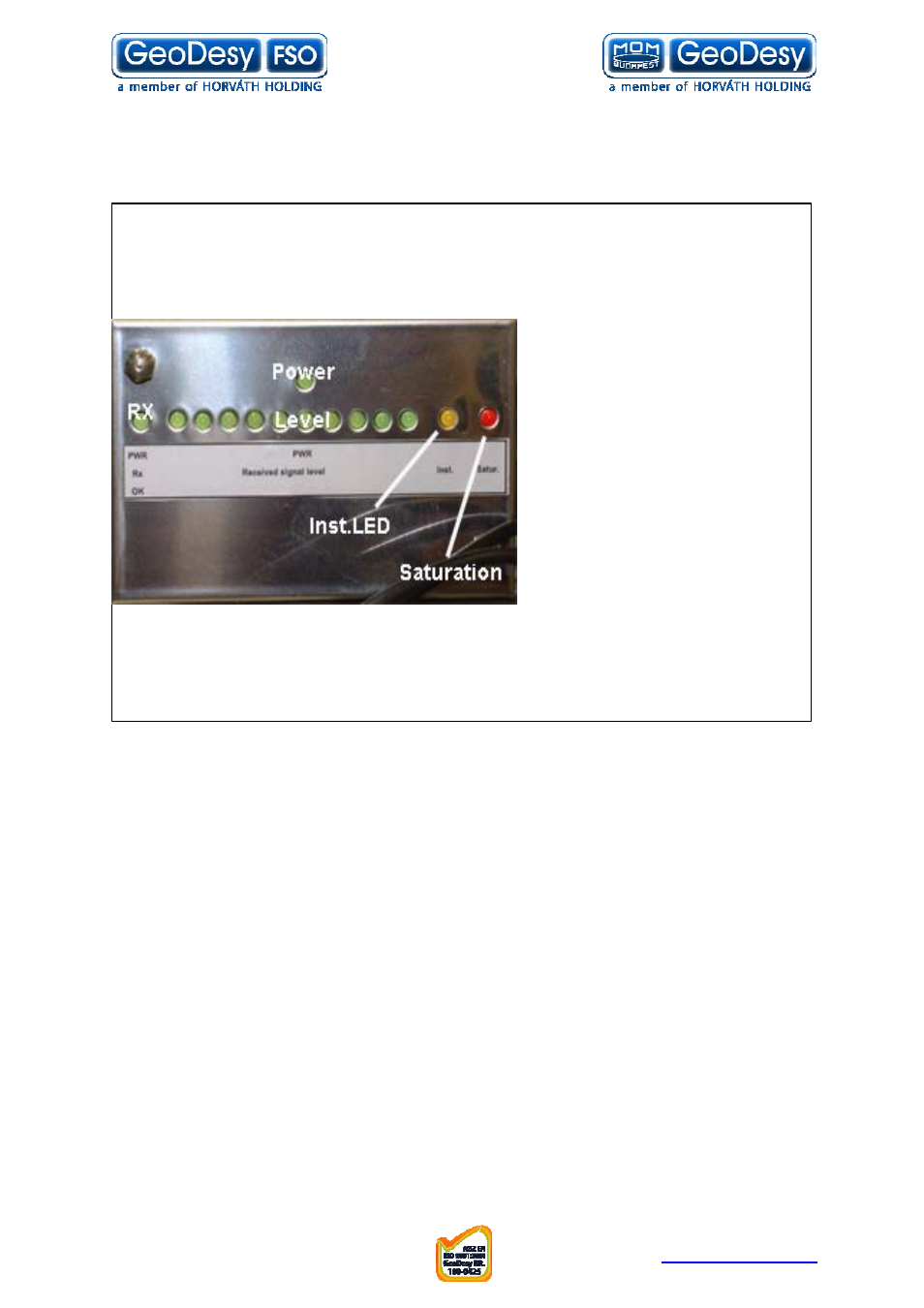

Meanings of the LEDs
Power:
The head is powered up.
-RX :
Only for manufacturing, and
calibration purposes. Not
effecting link functionality
Level LEDs:
The function of these10
green LEDs is to give visual
information about the incoming
light efficiency
Installation LED:
It signs you have the biggest
amount of incoming light
efficiency which is still not
overloads the receiver
Saturation:
Overload (Overloading can cause stop in the communication, and permanently it can
damage the receiver)
After 15mW (or higher) incoming light efficiency
• Open up the heads
