the network have to be in the opposite connector of the previous, and do the same
with the other sides too.

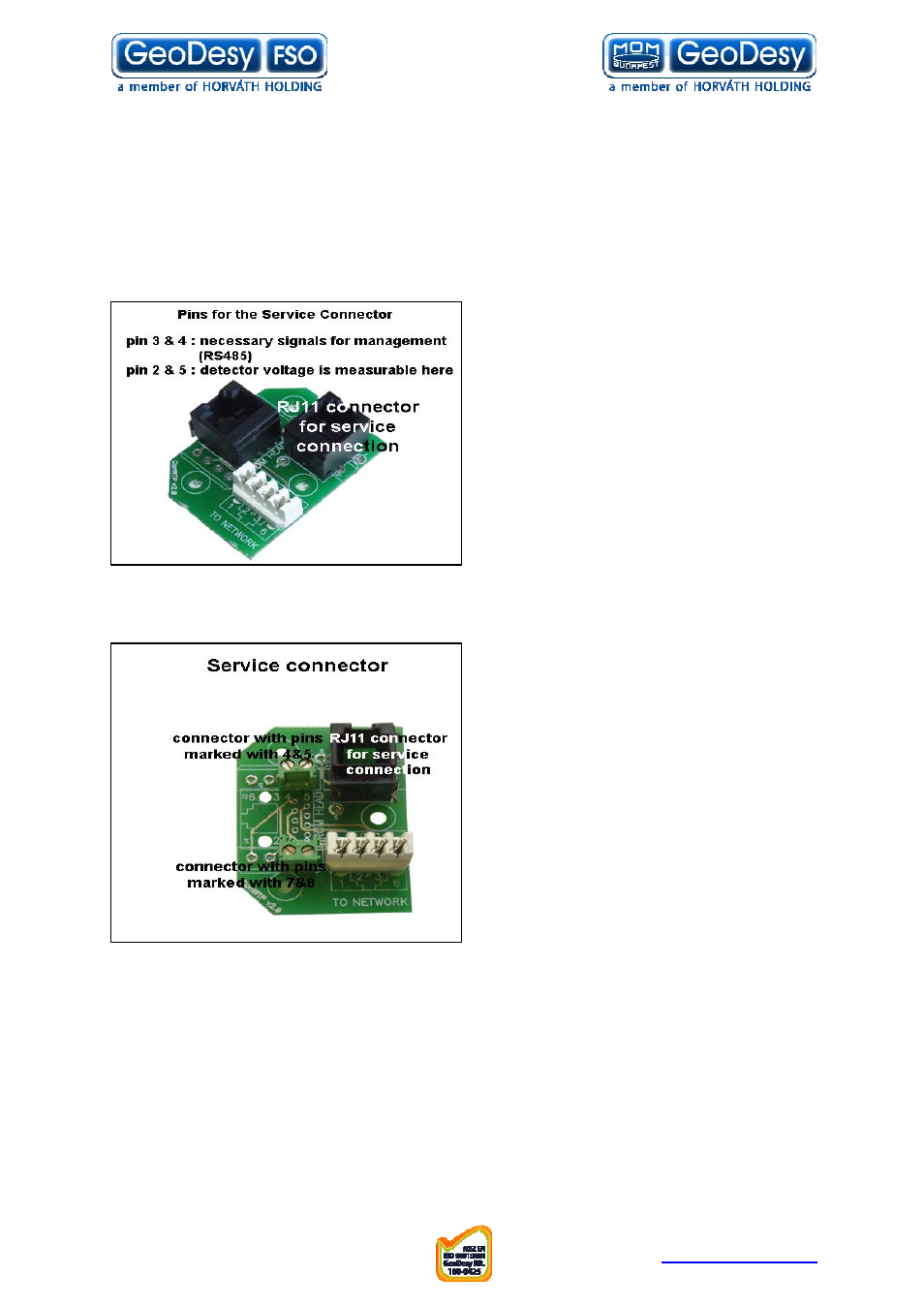

9.2.6 Connecting to the management
If you have a TP head
Using the RJ11 Sevice Connector you
can connect your management indoor
unit to the head, and you can measure
the detector voltage of the receiver of
the head as well.
More details about the management
please find to see its own Users’
Manual.
If you have a TC head
Using the RJ11 Sevice Connector and
the two green connectors you can
connect your management indoor unit to
the head.
The necessary signals can be found on
the blue and brown wires of the head
power cable. You have to connect these
two wires into two pins of the four of the
two green connectors. These pins are
connected to the pins of the RJ11
Service Connector. The order of
connections is the following:
Pin of the green connector 4
5 7 8
Pin of the RJ11 Service Connector 4 5 3 2
More details about the management please find to see its own Users’ Manual.
(please connect the blue and the brown wires to the Pin number 4&7 in case of The
Web-Based GD-View MGM unit)
