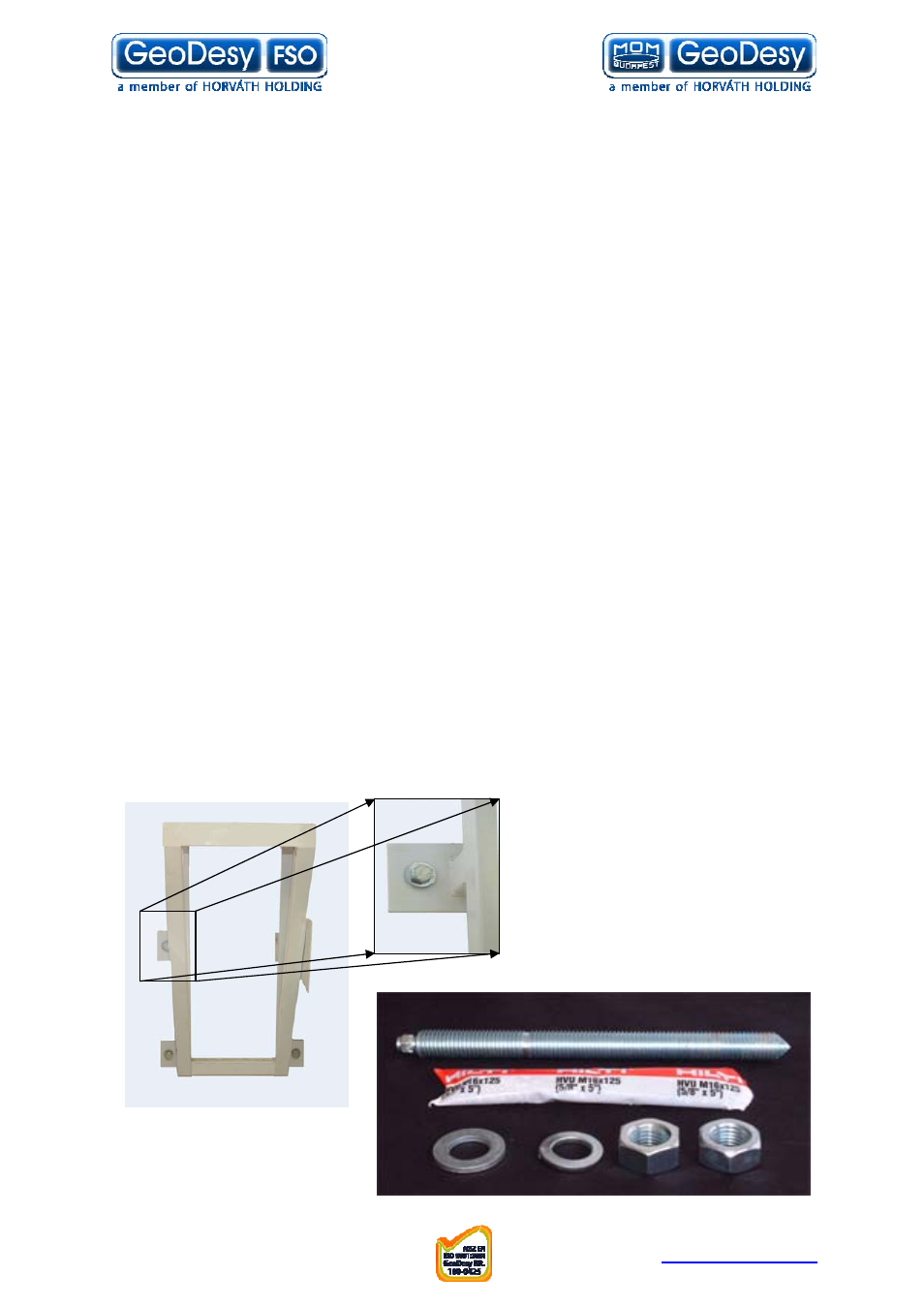

The mounting bracket
For the
GD Series systems the brackets are optional, but they should be fixed with
long term reliable bolts and screws. GeoDesy-FSO has successfully tried and
used “Hilti Anchors” product range. Product codes: HVU; MD; HAS fixing systems.
For more details of usage please contact your local Hilti distributor.
In the following chapter you will find detailed description of the bracket fastenings.
8.1 Fixing High-End product range brackets
The fastening of the
GD Series is very critical point of the installation. Due to the
distance, that can be up to 5 km. We will introduce you the necessary fixing method
however this method can be different depending on the holder frame type and the
surface. Please note that different fixing method must be used with concrete
surfaces and with brick. For the best fits, fastening methods please contact to your
local dealers, or refer to their website. If you have questions about the fixing, contact
GeoDesy-FSO.
There are no two installation sites from the same kind. Sometimes individual design
is required, GeoDesy-FSO provides wide range of Brackets can be found on this
CD, feel free to modify or manufacture them, however the sale of the bracket
drawings is strictly restricted. To help you to design your own brackets GeoDesy-
FSO recommends the following,
Material:DIN1.0034
Colour: white or light silver with reflective painting. (To reduce the movements
caused by the heat expansion)
The material must be treated for long term use, sometimes in extreme rain, snow,
sun, humidity or sand environments to shield against corrosion.
