For the sample we have used a very simple example. The surface is concrete and
the fixing material was Hilti HVU and the screw was Hilti HAS system. The steps are
as follows:
- Push the holder frame against the wall on the desired place
- Mark the place on the wall with permanent marker of pencil
- Drill the holes
- Clean the holes
- Place the small bag into the cleaned hole
- With a drill drive the screw into the hole
through the plastic bag
- Refer to the packaging about the
timing while the glue sets solid
enough to enable you to strain
the screw
- After it sets dry place the
mounting on to the screws
- After it sets dry for fastening fasten the bolts(the fastening power should be
min of 120Nm with a M16 sized bolt)

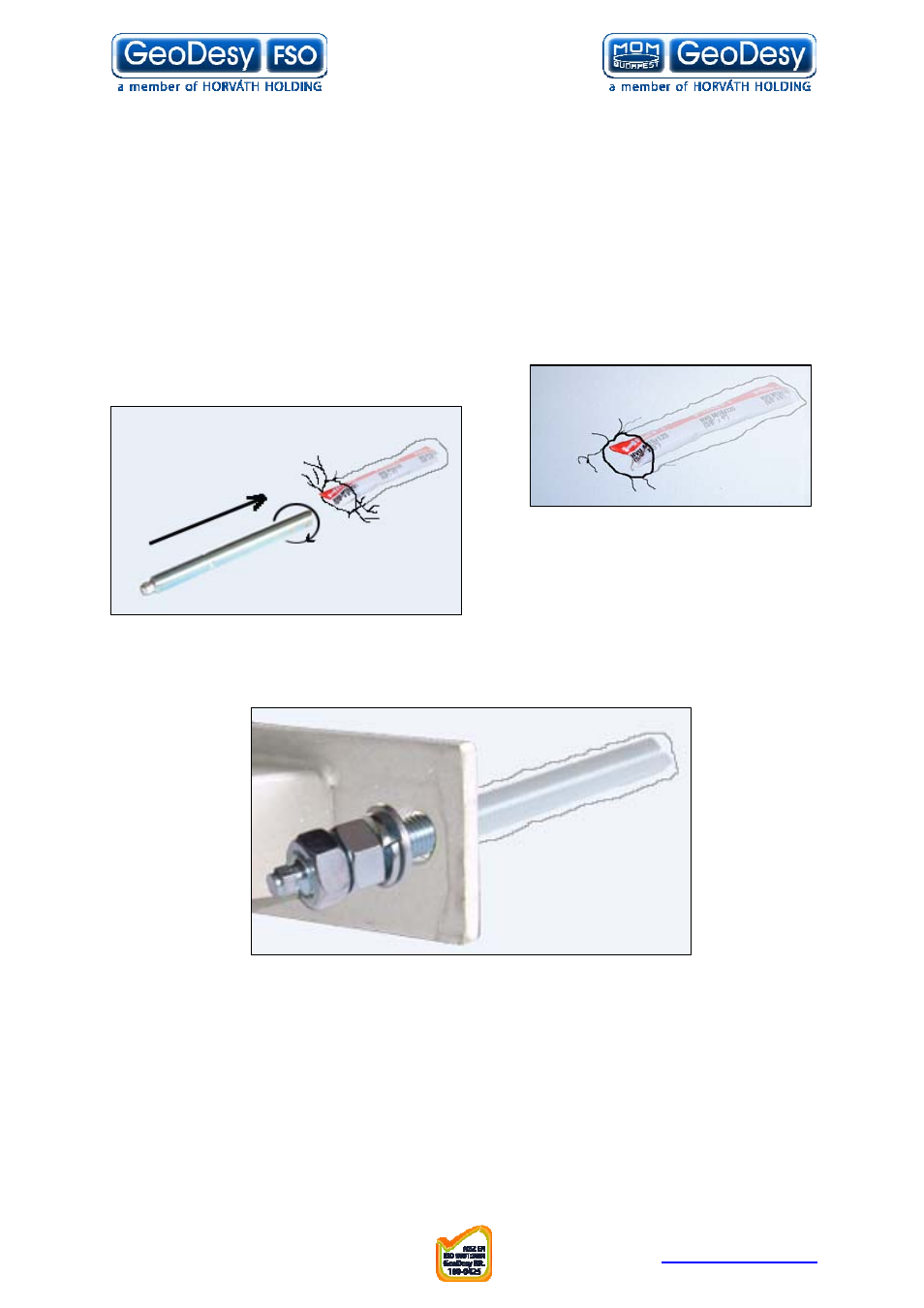

Note: Spacers and spring spacers should be used every time you fix a bracket as
the figure shows above.
