Gast 1534 Series Oilless Vacuum Pumps and Compressors - Manual (Page 8)

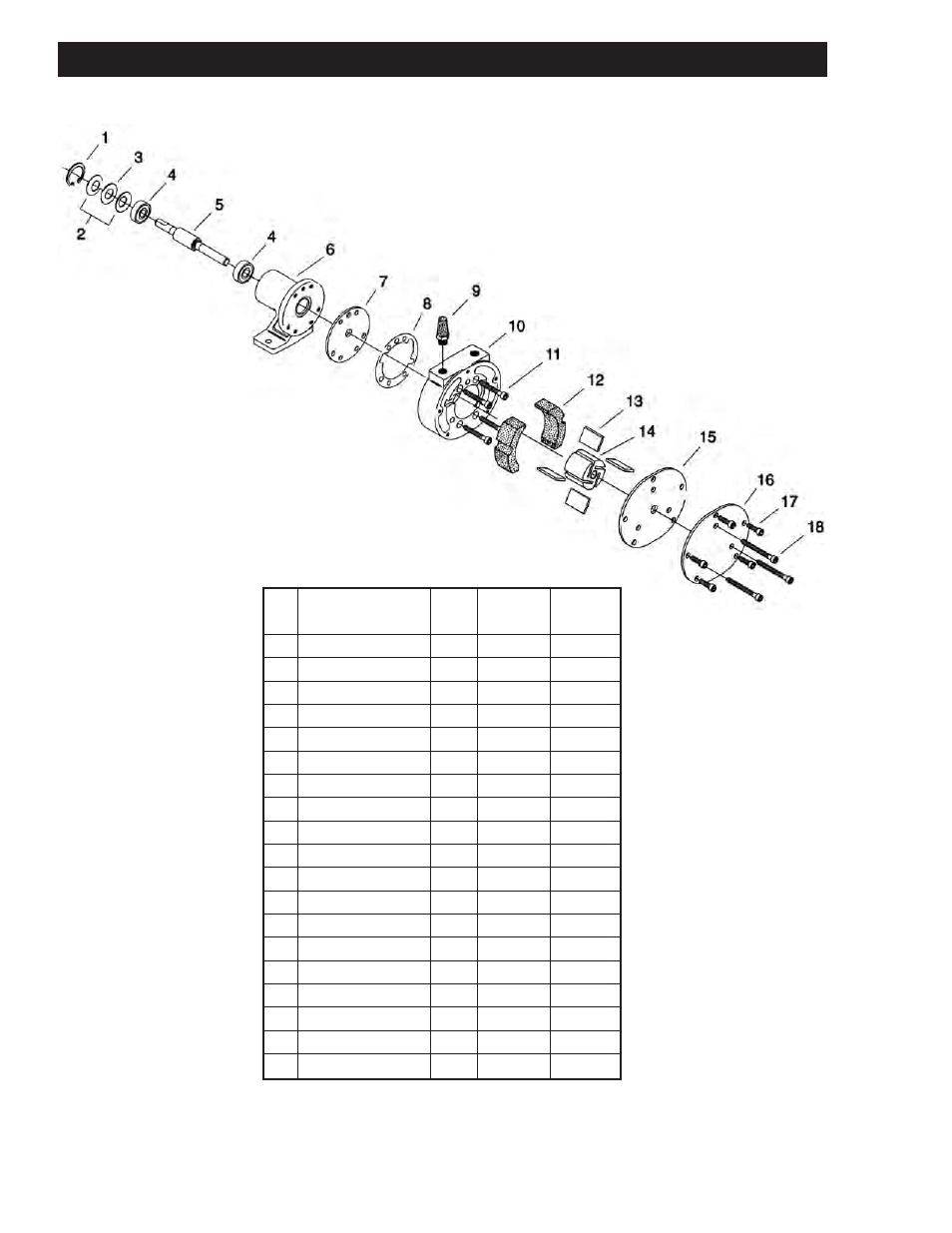

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
*** Item not shown.
∆ Denotes parts included in the Service Kit.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.
REF DESCRIPTION QTY 1034-101 1534-101
1 RETAINER RING 1 AE563 AE563
2 BELLEVILLE SPRING 4 AE664A AE664A
3 SHIM WASHER 2 AE686-1 AE686-1
4 BEARING 2 AF120 AF120
5 SHAFT 1 AD234 AD234
6 END PLATE 1 AG315 AG315
7 INSERT PLATE 2 AG293 AG293
8 GASKET 1 AG296 AG296
9 SILENCER 1 VG2016 VG2016
10 BODY 1 AK649A AK649B
11 BODY BOLT 4 BB426 BB426
12
∆
FOAM 2 AK646 AK646
13
∆
VANES 4 AD979 AD979
14 ROTOR 1 AD978 AD978
15 INSERT PLATE 1 AK648 AK648
16 RETAINER PLATE 1 AK647 AK647
17 PLATE BOLTS 5 BB448 BB448
18 PLATE BOLTS 3 BB427 BB427
*** SERVICE KIT 1 K497 K497
Parts not numbered are
not available individually.
34 SERIES
