Gast 1534 Series Oilless Vacuum Pumps and Compressors - Manual (Page 5)

* Consult the factory.
*** Item not shown.
∆
Denotes parts included in the Service Kit.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.
REF DESCRIPTION QTY 0531-102B 1031-102A 1531-107B
0531-105
1 MOTOR * * * *
2 INSERT PLATE 2 AG293 AG293 AG293
3 GASKET * AG296 AG296 AG296
4 BODY 1 AG303 AG302A AG300
5 BODY BOLT 4 BB425 BB420 BB420
6 ROTOR 1 AF136 AD978 AD978
7
∆
VANES 4 AF138 AD979 AD979
8 RETAINER PLATE 1 AK791 AK791 AK791
9 RETAINER BOLT 3 BB420 BB423 BB423
10 ELBOW, BENT 2 AD987 AD987 AD987
11 MUFFLER 1 AA922H AA922H AA922H
12 FILTER 1 AA922H AA922H AA922H
13 COVER 2 AA965PCL AA965PCL AA965PCL
14 TUB 2 AA739 AA739 AA739
15
∆
GASKET 2 AA932 AA932 AA932
16
∆
FELT 4 AA928 AA928 AA928
17 SUPPORT 2 AA927 AA927 AA927
18 GLASS JAR 2 AA935A AA935A AA935A
*** SERVICE KIT 1 K259 K219 K219

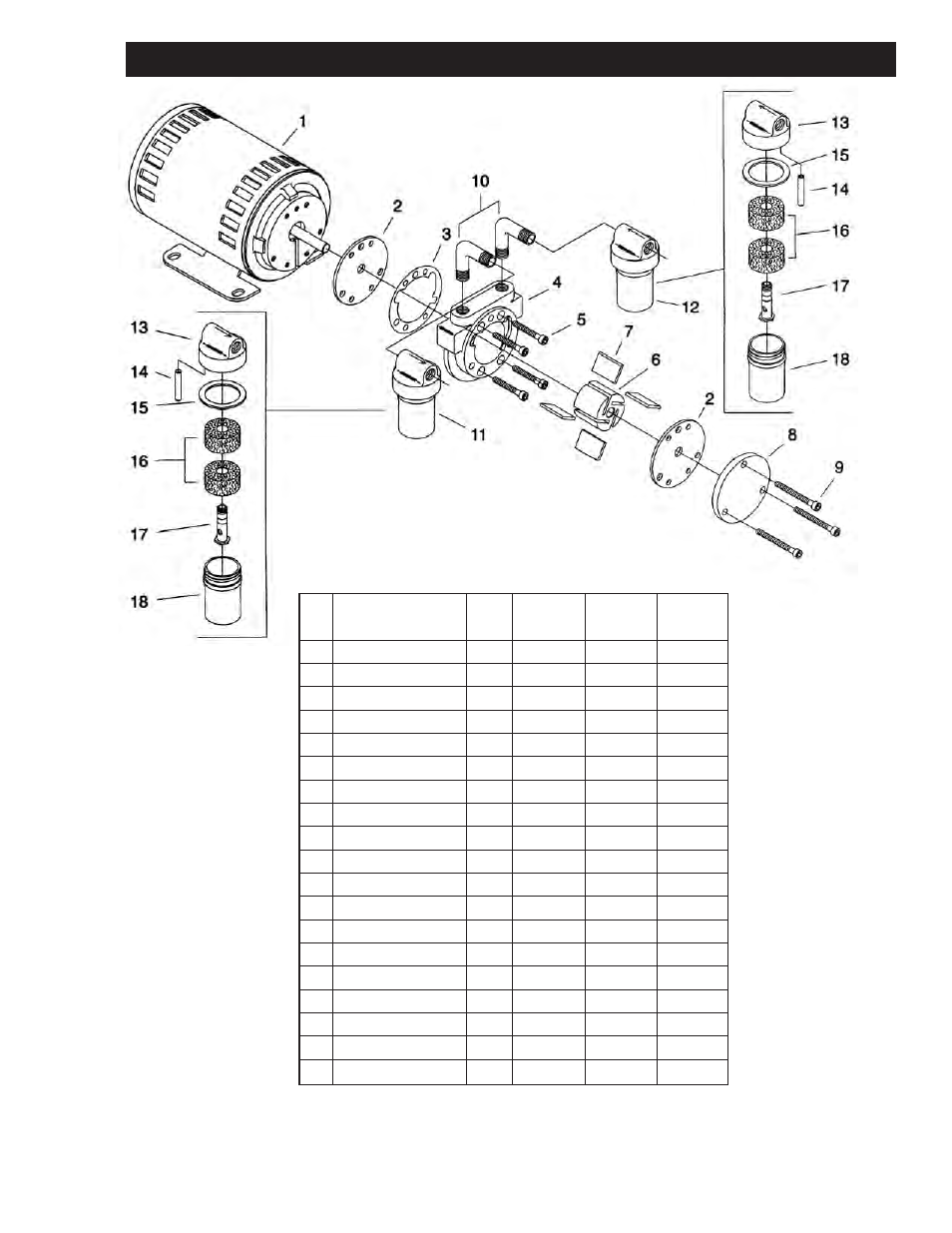

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
Parts not numbered are
not available individually.
31 SERIES
