Gast 1534 Series Oilless Vacuum Pumps and Compressors - Manual (Page 7)

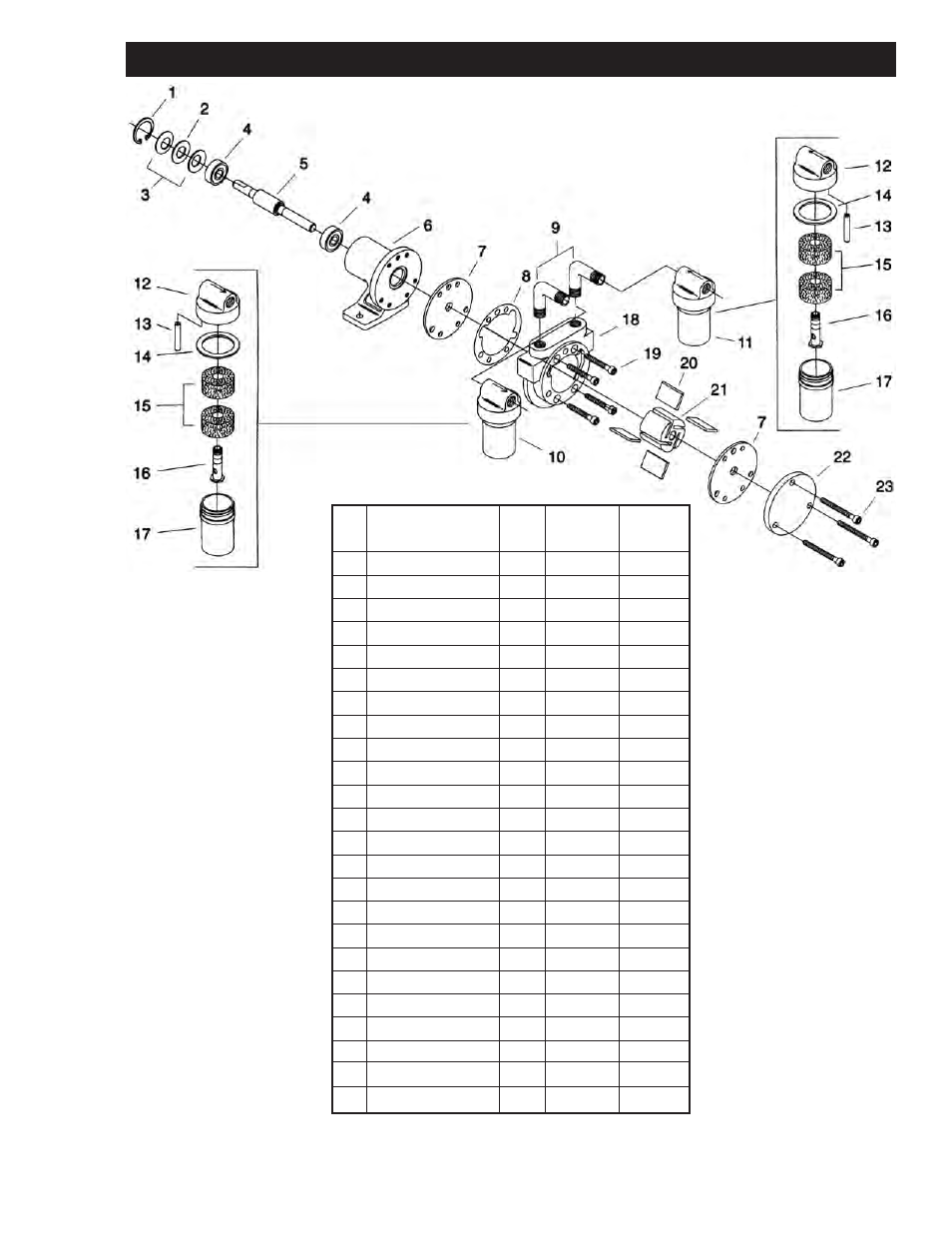

EXPLODED PRODUCT VIEW, PARTS & ORDERING INFORMATION
*** Item not shown.
∆ Denotes parts included in the Service Kit.
Parts listed are for stock models. For specific OEM models, please consult the factory.
When corresponding or ordering parts, please give complete model and serial numbers.
REF DESCRIPTION QTY 1033-102A 1533-102A
1 RETAINER RING 1 AE563 AE563
2 BELLEVILLE SPRING 4 AE664A AE664A
3 SHIM WASHER 2 AE686-1 AE686-1
4 BEARING 2 AF120 AF120
5 SHAFT 1 AD234 AD234
6 END PLATE 1 AG315 AG315
7 INSERT PLATE 2 AG293 AG293
8 GASKET 1 AG296 AG296
9 ELBOWS 2 AD987 AD987
10 MUFFLER 1 AA922H AA922H
11 FILTER 1 AA922H AA922H
12 COVER 2 AA965PCL AA965PCL
13 TUBE 2 AA739 AA739
14
∆
GASKET 2 AA932 AA932
15
∆
FELT 4 AA928 AA928
16 SUPPORT TUBE 2 AA927 AA927
17 GLASS JAR 2 AA935A AA935A
18 BODY 1 AG302A AG300B
19 BODY BOLT 4 BB426 BB426
20
∆
VANES 4 AD979 AD979
21 ROTOR 1 AD978 AD978
22 RETAINER PLATE 1 AK791 AK791
23 PLATE SCREWS 3 BB423 BB423
*** SERVICE KIT 1 K219 K219
Parts not numbered are
not available individually.
33 SERIES
