Mounting Features Cont.
MCS Accessories
The front of the 13-in Low Ergo console box allows the attachment of any Gamber Johnson cup holder (MCS-CUP,
MCS-CUP2, MCS-CUPHOLD2) or extension box (7160-0028).

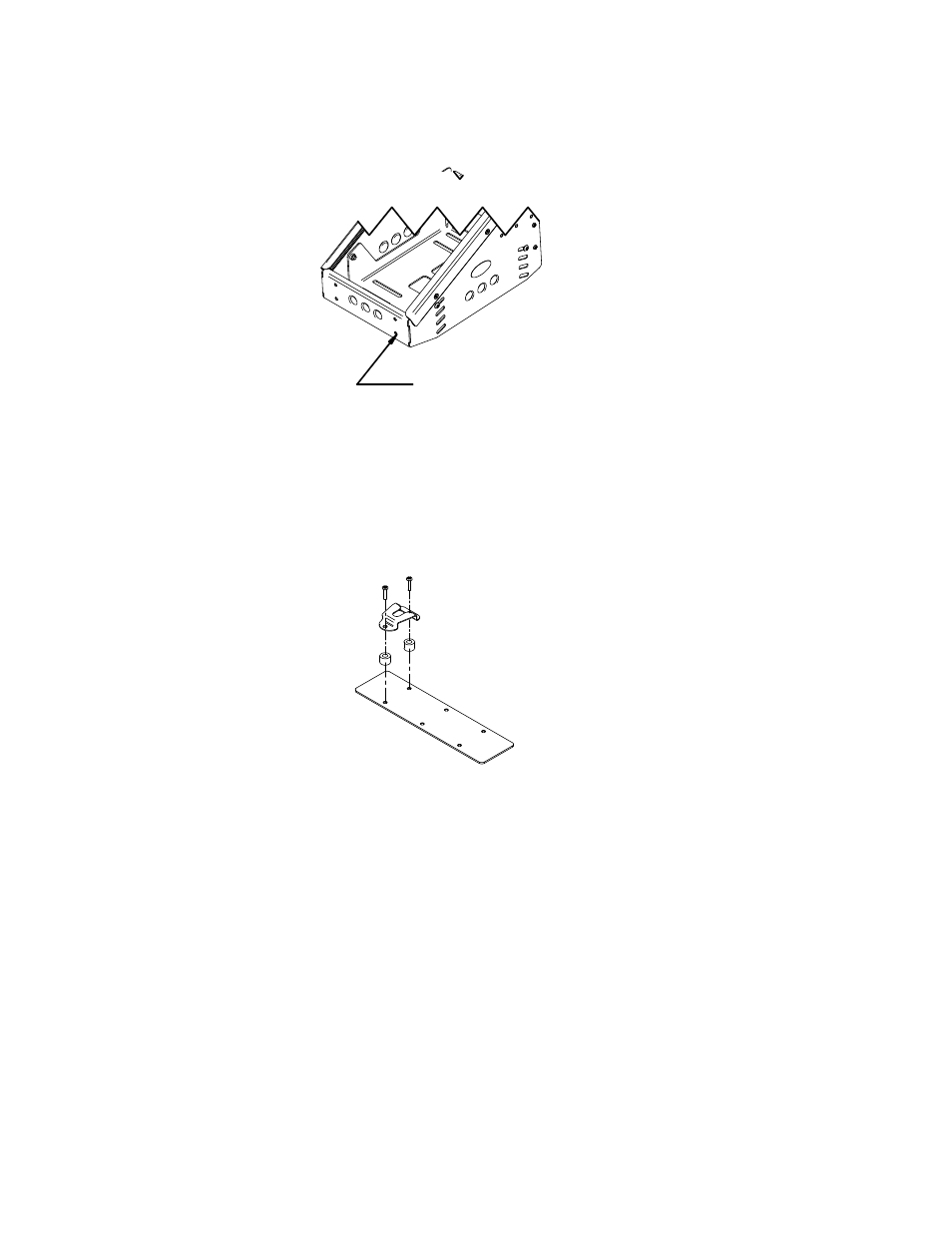

Figure 5: MCS Accessory mounting points
Figure 6: MCS-MICPLT kit assembly
Assembling the MCS-MICPLT
The MCS-MICPLT is a kit that allows a radio microphone to be mounted in the same fashion as all Gamber Johnson
Faceplates. The mic clip itself is not provided with the MCS-MICPLT kit as it is standard that a mic clip is shipped with
most communication devices that use a microphone. Assemble as illustrated in Figure 6.
It is recommended that if using the MCS-MICPLT kit to place the finished assembly in the lowest position on the 13-in
Low Ergo console box. By assembling the kit in this fashion you be able to avoid using the short Faceplate Vertical
Offset (Figure 2).
SHEET 3 OF 3
Cup Holder or Extension Box
