How to use the Locking Swing Arm:
The Locking Swing Arm is designed to accommodate three motions of adjustment.
1. The first motion is a 360 degree swivel that is actuated by the front lever. Pulling out on the
lever releases the gear latch located in the base and allows the mount to swivel. To latch the
arm in place, position the arm in the desired location and release the spring loaded lever.
Wiggle the arm back and forth to make sure the lever has engaged the teeth on the gear.
2. The second motion is the clevis swivel (360 degrees).
3. The third motion is the clevis tilt (0-90 degrees).
Note Do not use this product if the latch mechanism is disabled or missing. The product
should be out of the airbag zone in the latched position when the vehicle is in use.
•The Locking Swing Arm and upper level equipment should not be positioned in the area where
the airbag will be deployed if it is activated. DO NOT position the equipment in front of an
airbag. Equipment positioned in front of an airbag can cause serious injury or death if an airbag
was activated, such as in an accident.
•If installation of the equipment requires that the equipment be placed in front of an airbag,
deactivate the airbag in the vehicle so it cannot be activated in an accident. In order to
secure permission for deactivating the airbag in these circumstances, contact the National
Highway Traffic Safety Administration at 1-800-424-9393 to gain permission to do so. If you have
any questions or need assistance, call Gamber-Johnson at 1-800-456-6868.
2/2

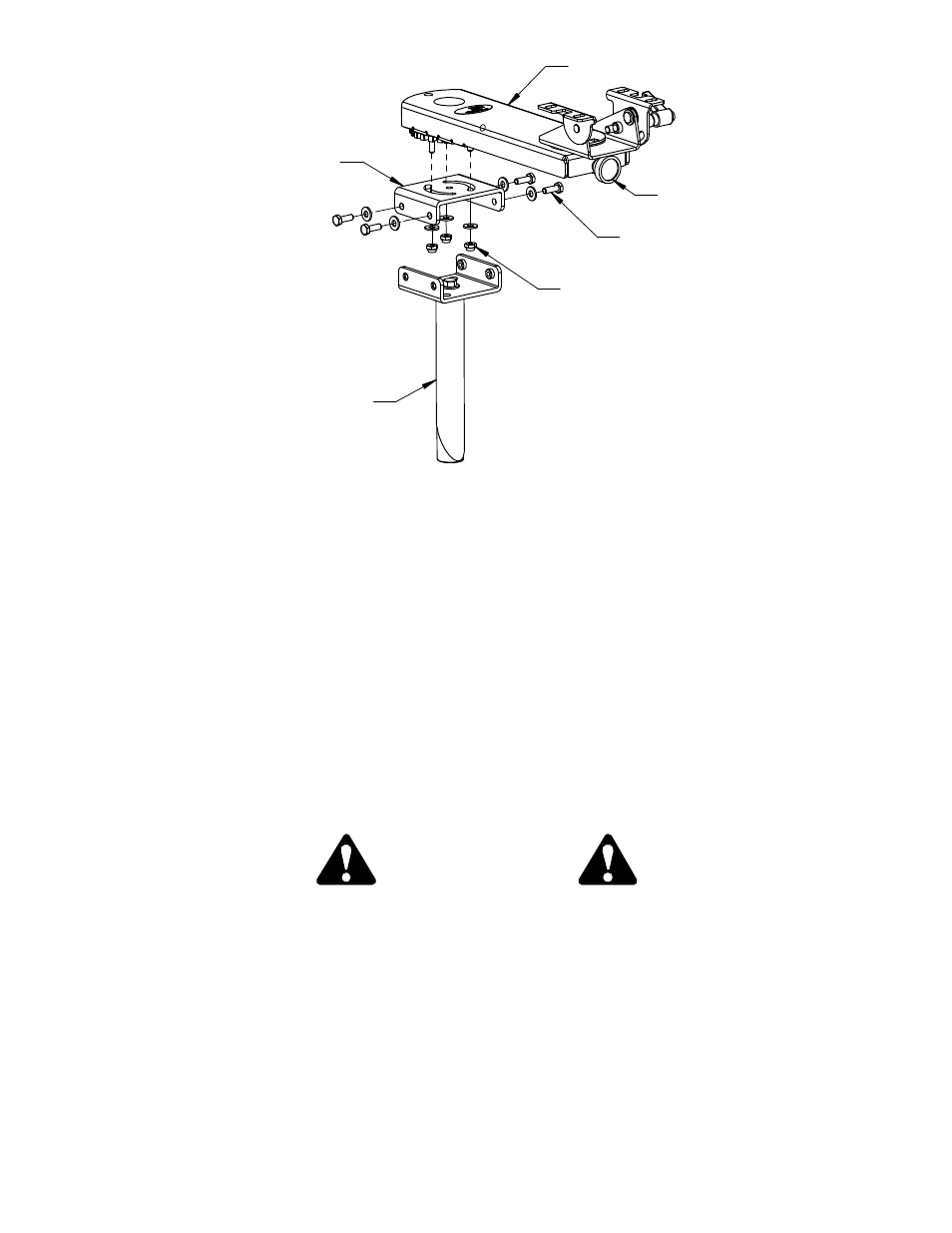

1/4" Bolts and
Figure 1.
CENTER UPPER TOP
Locking Swing Arm
Front Handle
Flat Washers
1/4" Nylok Nuts and
Flat Washers
CENTER UPPER BOTTOM
WARNING
