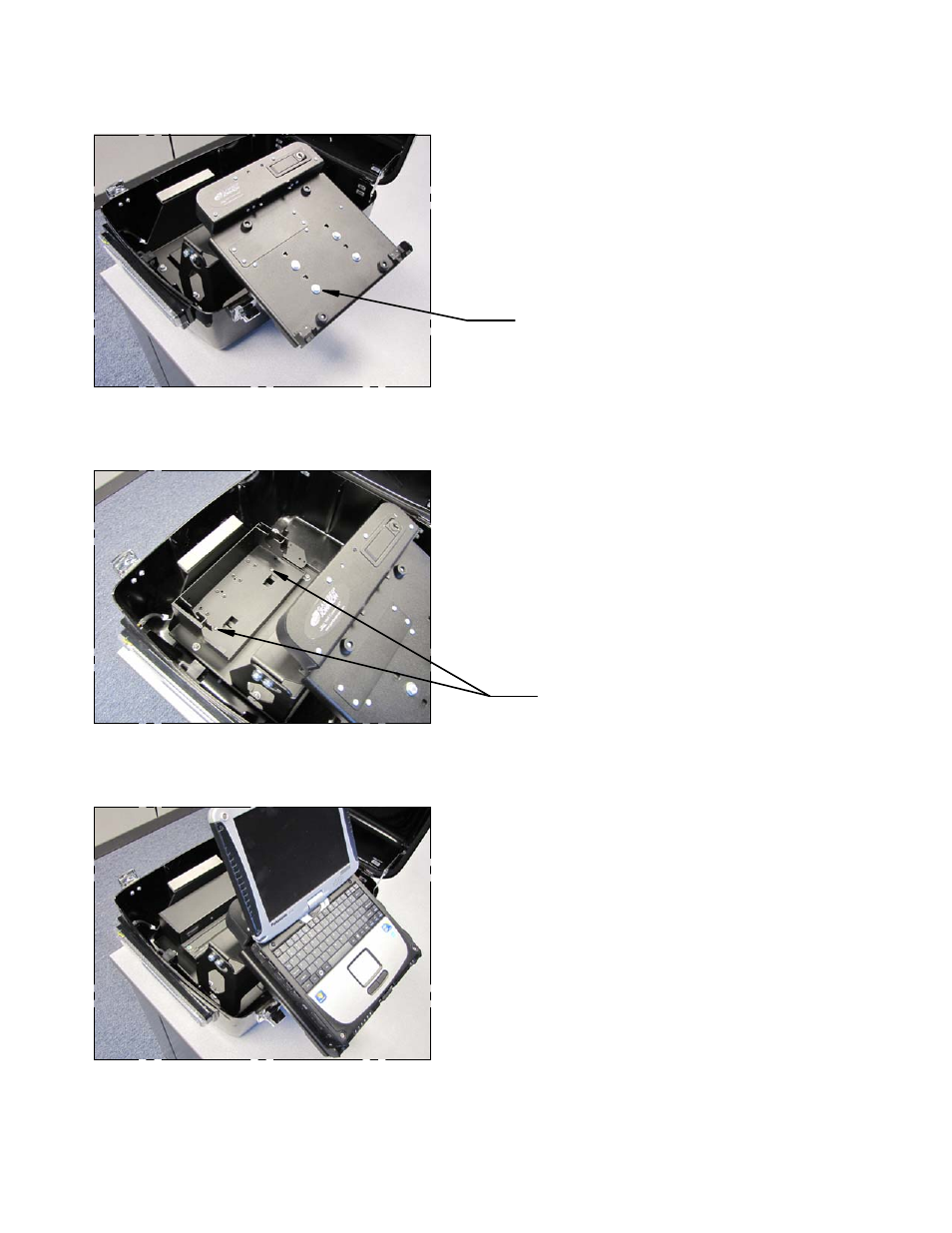

Fig 3 -

Attach the CF19 Cradle or Dock to the

mount using (4) .25-20 x .75 Hex Head Screws

and (4) .25 Flat Washers, supplied in the

Cradle or Dock Hardware Bags.

(4) .25-20 x .75 Hex Head Screws

and .25 Flat Washers

Fig 4 -

If the Brother PocketJet Printer Mount

7160-0035 is being used, attach it to

the mount at this time using

(2) #10-32 x .38 Phillips Pan Head Screws

and (2) #10 Lock Washers

supplied in the Printer Mount Hardware Bag.

Fig 5 -

Insert the Computer and Printer.

(2) #10-32 x .38 Phillips Pan Head

Screws & #10 Lock Washers
