WARNING
•This assembly should not be positioned in the area where the airbag may be deployed.
•DO NOT position the equipment in front of an airbag. Equipment positioned in front of an
airbag may cause serious injury or death if an airbag is activated.
•
If installation of the equipment requires that the equipment be placed in front of an airbag,
the airbag should be deactivated. In order to secure permission for deactivating the airbag
you must contact the National Highway Traffic Safety Administration at 1-800-424-9393 to
gain permission to do so. If you have any questions or need assistance, call
Gamber-Johnson at 1-800-456-6868.
•
High speed vehicle turns may cause parts of the assembly to swivel, interfering with the
driver or other equipment.
7. Determine orientation for the mounting plate. The mounting plate can be installed with either side
facing out depending on the desired direction of rotation (left hand or right hand). Install per Figure 2
for a left hand rotation (starting at notch the slot progresses to the left).
8. Install the mounting plate with the supplied bolt and lock washer. The notch marks the starting
point of the rotation. Install the plate with the notch pointing up or toward the dash. The notch will
correspond with the top of the TabCruzer when in portrait orientation.
9. Using the supplied #8 screws, plastic washers, flat washers and lock nuts, install the TabCruzer to
the mounting plate.
10. Tighten the lock nuts enough to allow for easy rotation of the TabCruzer while keeping it from
rattling or falling under its own weight.
11. For additional stability the assembly can secured to a vertical surface such as the side of the center
console using the supplied plastic mount. Attach the plastic mount to a suitable surface and the
aluminum rod with the included cable tie. Before driving any screws into your car check for the
presence of vehicle systems. Gamber-Johnson recommends that any modifications to your vehicle be
completed by an experienced installer.

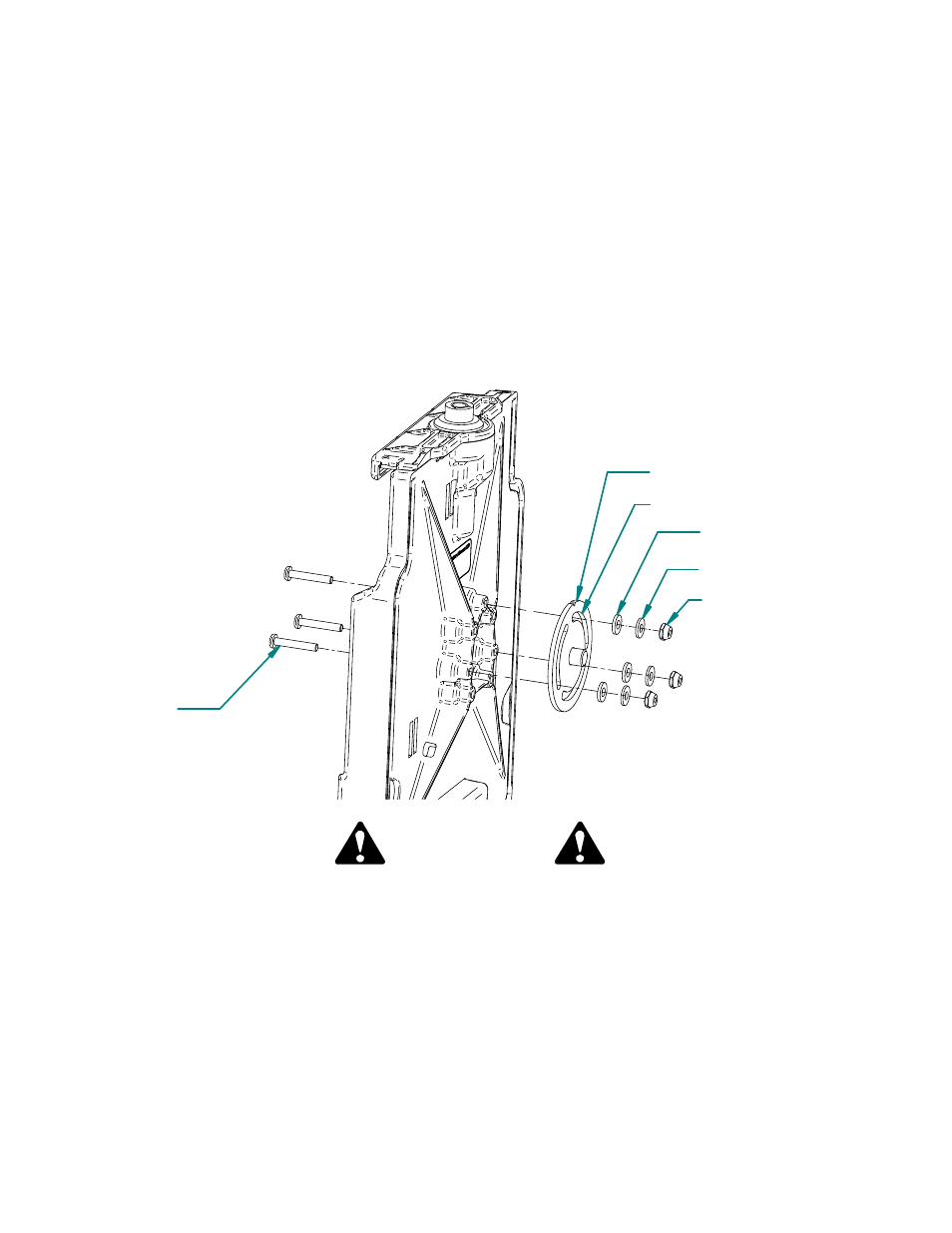

#8-32 SCREWS
PLASTIC WASHERS
STEEL WASHERS
LOCK NUTS
NOTCH UP
LEFT HAND ROTATION
