Feiss OL12001 - Manual

1
Installation Instructions for
Bluffton 1 Light Wall
1.1
WB1718-OL12000-OL12001
W 1718, O 12000, B L
O 12001_ L

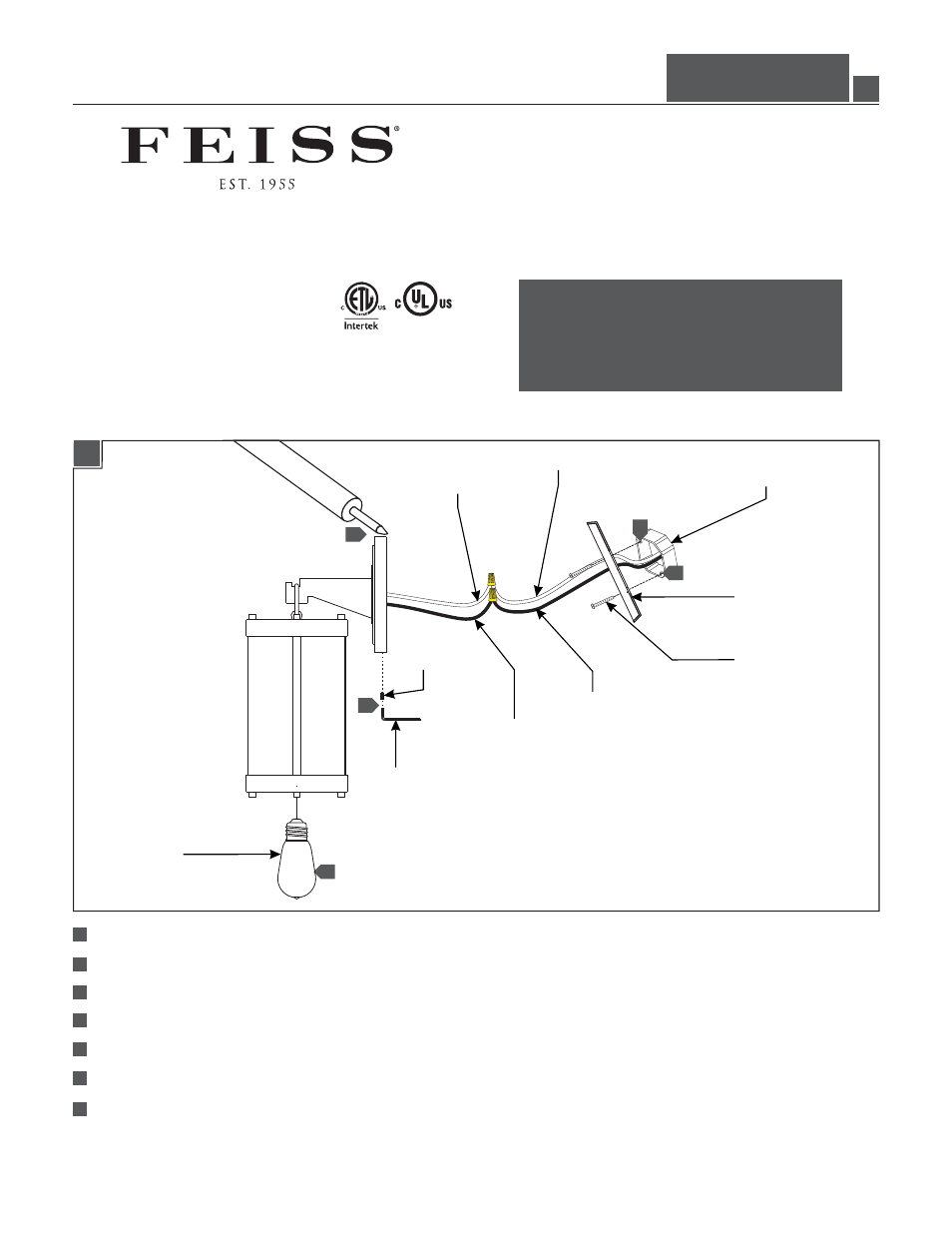

Secure the mounting plate to the electrical box with the two provided mounting plate screws.
Connect the fixture ground wire to a suitable ground in accordance to local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Mount the fixture base onto the mounting plate and secure it with the fixture screws using the Allen wrench.
For wet locations, caulk around the base with waterproof construction sealant.
Screw the lamp into the socket. Refer to the label on the lamp socket for Max Wattage information.
1
2
3
1A
LAMP
4
HOT WIRE
BLACK WIRE
ELECTRICAL BOX
MOUNTING
PLATE
NEUTRAL WIRE
WHITE WIRE
1
1
5
6
5
Wall/Outdoor
G P I : ENERAL RODUCT NFORMATION
This product is listed by one of the following
“ ationally
ecognized esting aboratory” N R T L
Models Ol12000 and Ol12001 are suitable for wet locations.
Model Wb1718 is suitable for damp locations.
This product may be dimmed with a standard incandescent dimmer.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
MOUNTING
PLATE SCREW
ALLEN
WRENCH
7
FIXTURE
SCREW
7
