Feiss OL18010 - Manual

1
Outdoor
G P I : ENERAL RODUCT NFORMATION
This product is listed by one of the following
“ ationally
ecognized esting aboratory” N R T L
This product is suitable for wet locations.
This product may be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
1
2
1A
LAMP
3
SOCKET
1
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
3
FIXTURE
COVER
DECORATIVE CAP
NUT
GLASS PANEL
THREADED PIPE
6
FIXTURE
4
COVER
DECORATIVE CAP
NUT
5

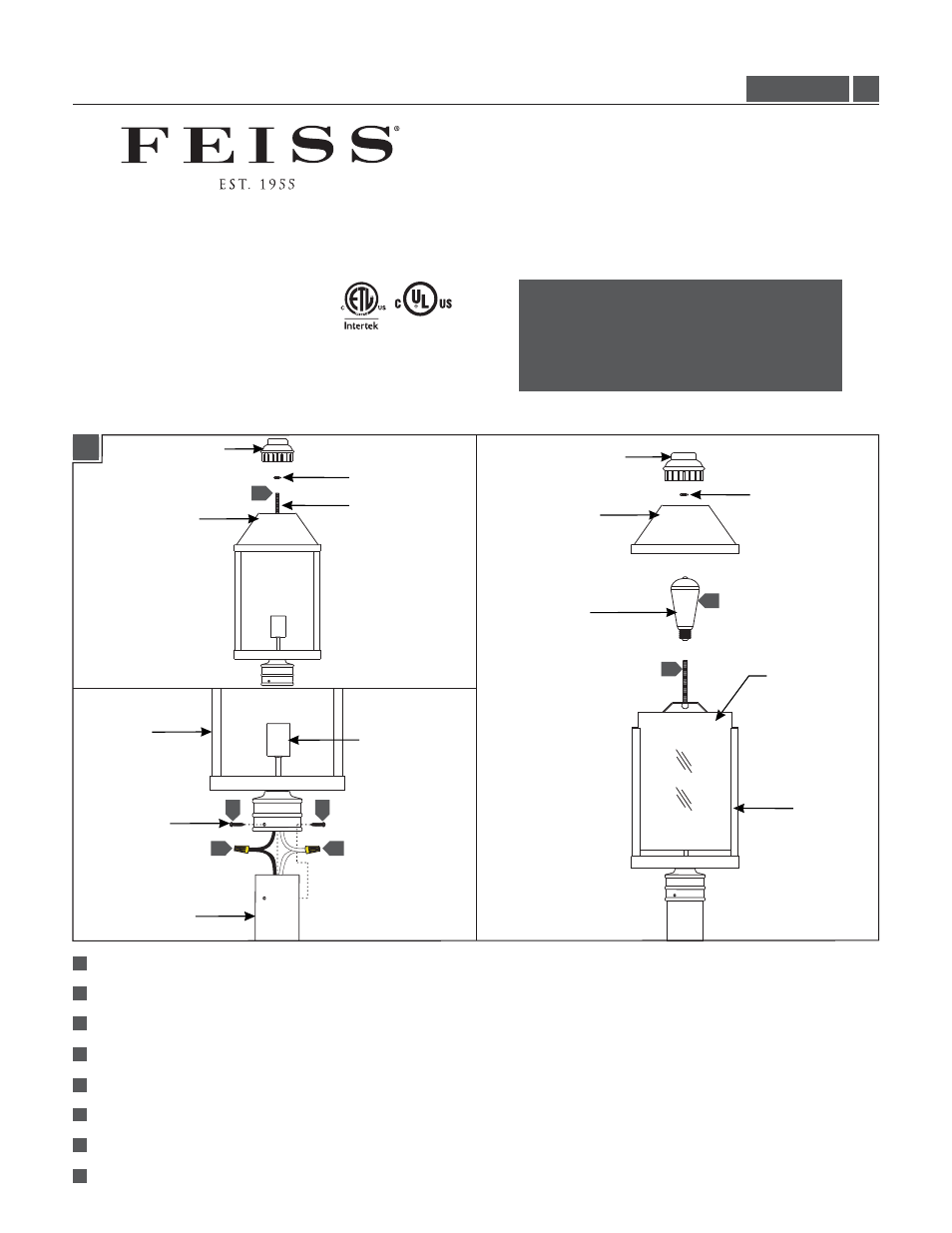

Installation Instructions for
Lumiere' 1 Light Outdoor Post
1.0
OL18010
OL18010_
Temporarily remove the decorative cap, nut, and cover from the threaded pipe.
Connect the fixture to a suitable ground in accordance to local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Secure the fixture to the post with the post screws making sure to neatly tuck in all wiring.
Screw the lamp into the socket. Refer to the label on the lamp socket for Max Wattage information.
Install the glass panels by carefully sliding them into the fixture.
Reinstall the cover, nut, and decorative cap onto the threaded pipe.
POST
POST SCREW
4
6
7
8
5 5
8
