Installation Instructions for
Truman Place 3 Light Outdoor Post
1.0
OL9508-OL9608
Outdoor
OL9508, OL9608-_
1
2
1A
SMALL DECORATIVE CUP
3
4
5

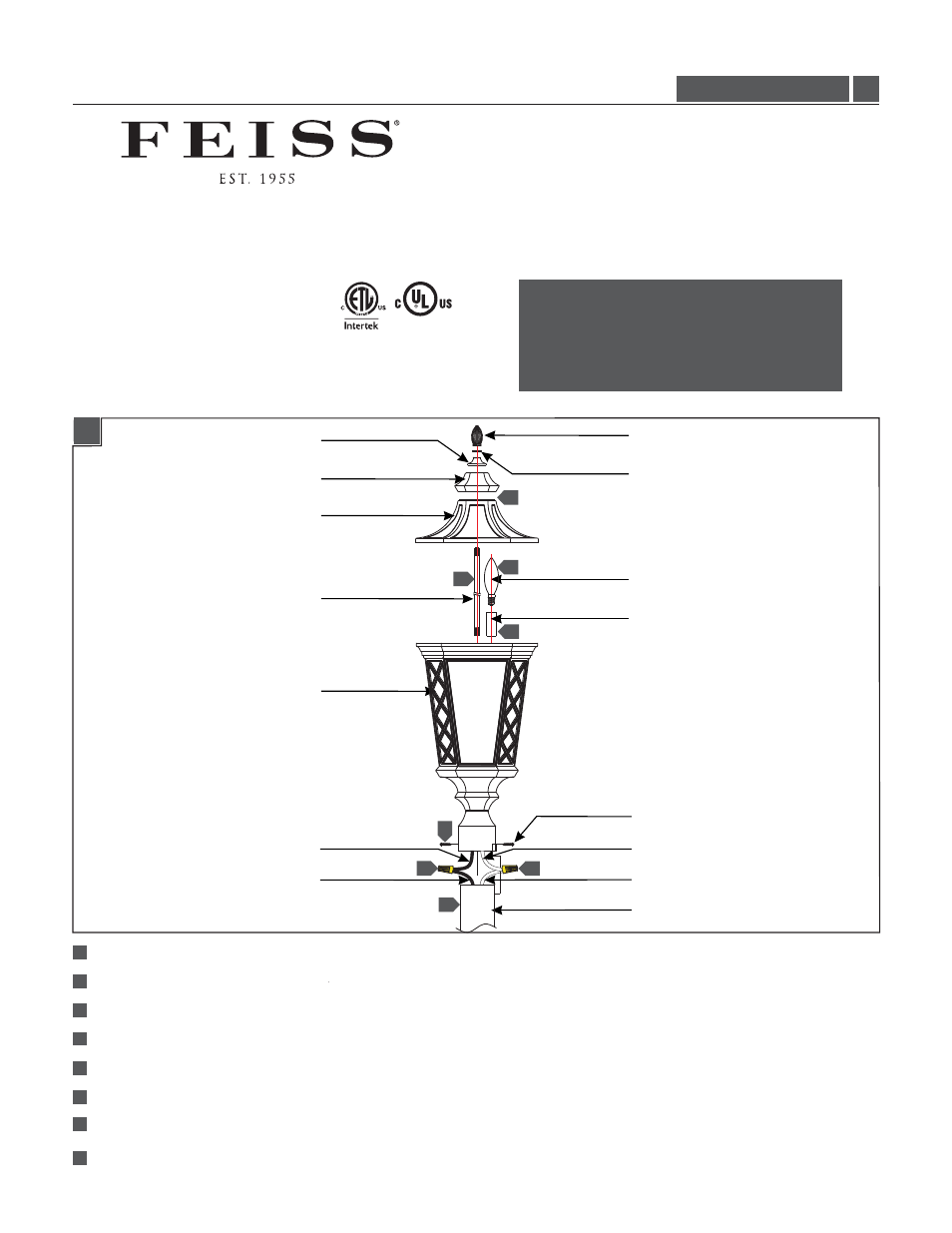

FIXTURE
Connect the fixture to a suitable ground in accordance to local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Secure the fixture to the post with the provided post screws making sure to neatly tuck in all wiring.
Install the candle tubes by slipping them through the sockets.
Install the lamps by screwing them into the sockets. Refer to the label on the lamp socket for Max Wattage information.
Screw the threaded pipe to the fixture.
Place the fixture cover, large decorative cup, small decorative cup, and washer over the threaded pipe, then secure them in
place by tightening the finial.
HOT WIRE
BLACK WIRE
6
G P I : ENERAL RODUCT NFORMATION
This product is listed by one of the following
“ ationally
ecognized esting aboratory” N R T L
This product is suitable for wet locations.
This product may be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
LAMP
NEUTRAL WIRE
WHITE WIRE
POST
3
4
4
2
POST SCREW
6
5
CANDLE TUBE
FIXTURE COVER
LARGE DECORATIVE CUP
WASHER
FINIAL
THREADED PIPE
