Installation Instructions for
River North 1 Light Outdoor Wall Lantern
1.1
OL9801-02-04
Outdoor
OL9801, 02, 04-_
G
P
I
:
ENERAL
RODUCT NFORMATION
This product is listed by one of the following
“ ationally
ecognized
esting aboratory”
N
R
T
L
This product is suitable for wet locations.
This product may be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
Follow enclosed supplement installation instructions for electrical and fixture installation onto house outlet box.
Install the shade by placing it into the fixture and over the socket.
Screw the lamp into the socket. Refer to the label on the lamp socket for Max Wattage information.
Install the frame to the fixture by securing it in place using the fixture screws.
Place the fixture cover and gasket (not included for OL9804) over the threaded nipple and secure it in place by tightening
the finial.

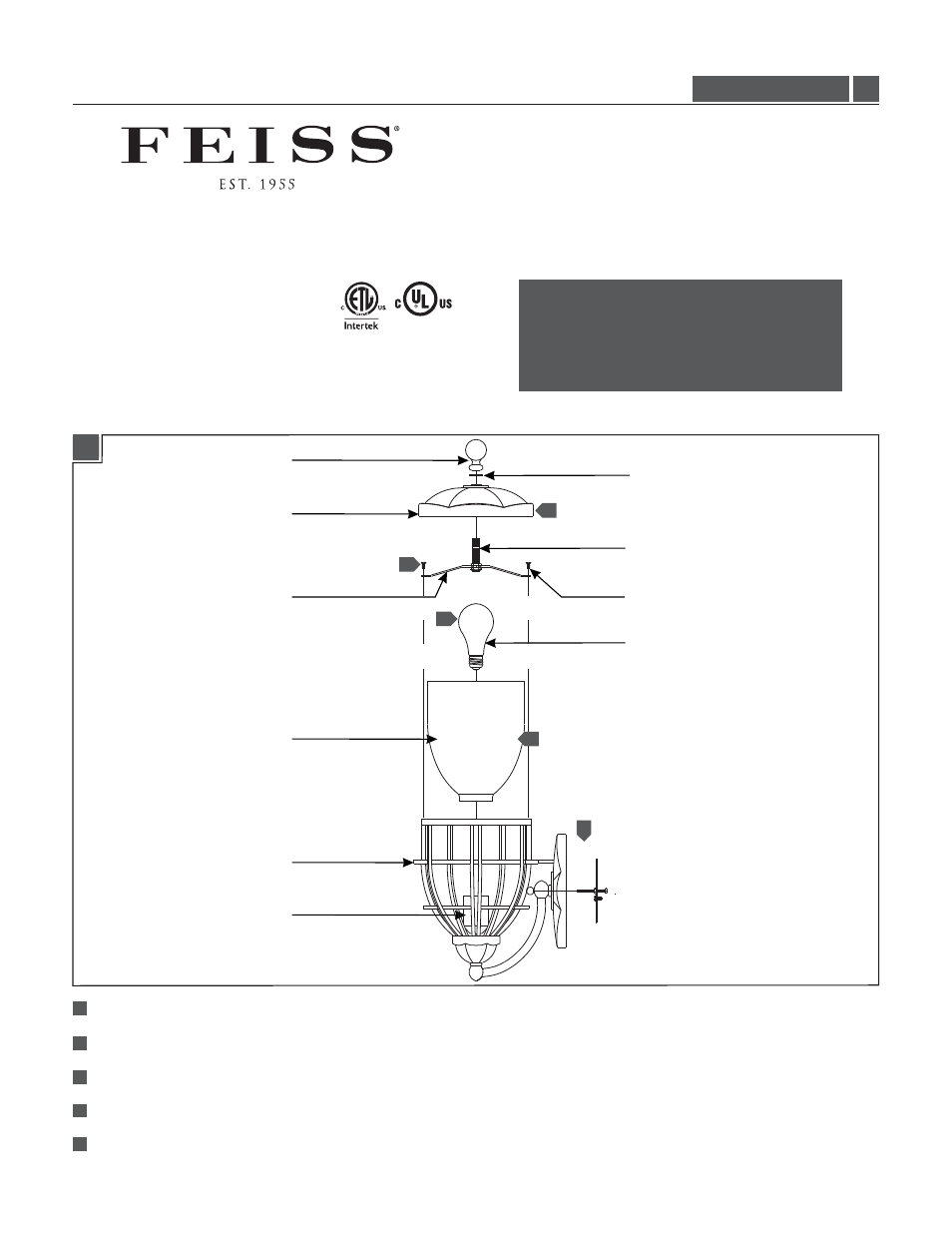

1
2
1A
LAMP
3
3
SHADE
FRAME
SOCKET
1
4
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
THREADED NIPPLE
FINIAL
FIXTURE COVER
FIXTURE SCREW
FIXTURE
5
5
4
2
GASKET
