Installation Instructions for
River North 1 Light Outdoor Post
1.0
OL9807-08
Outdoor
OL9807, 08-_
1
2
1A

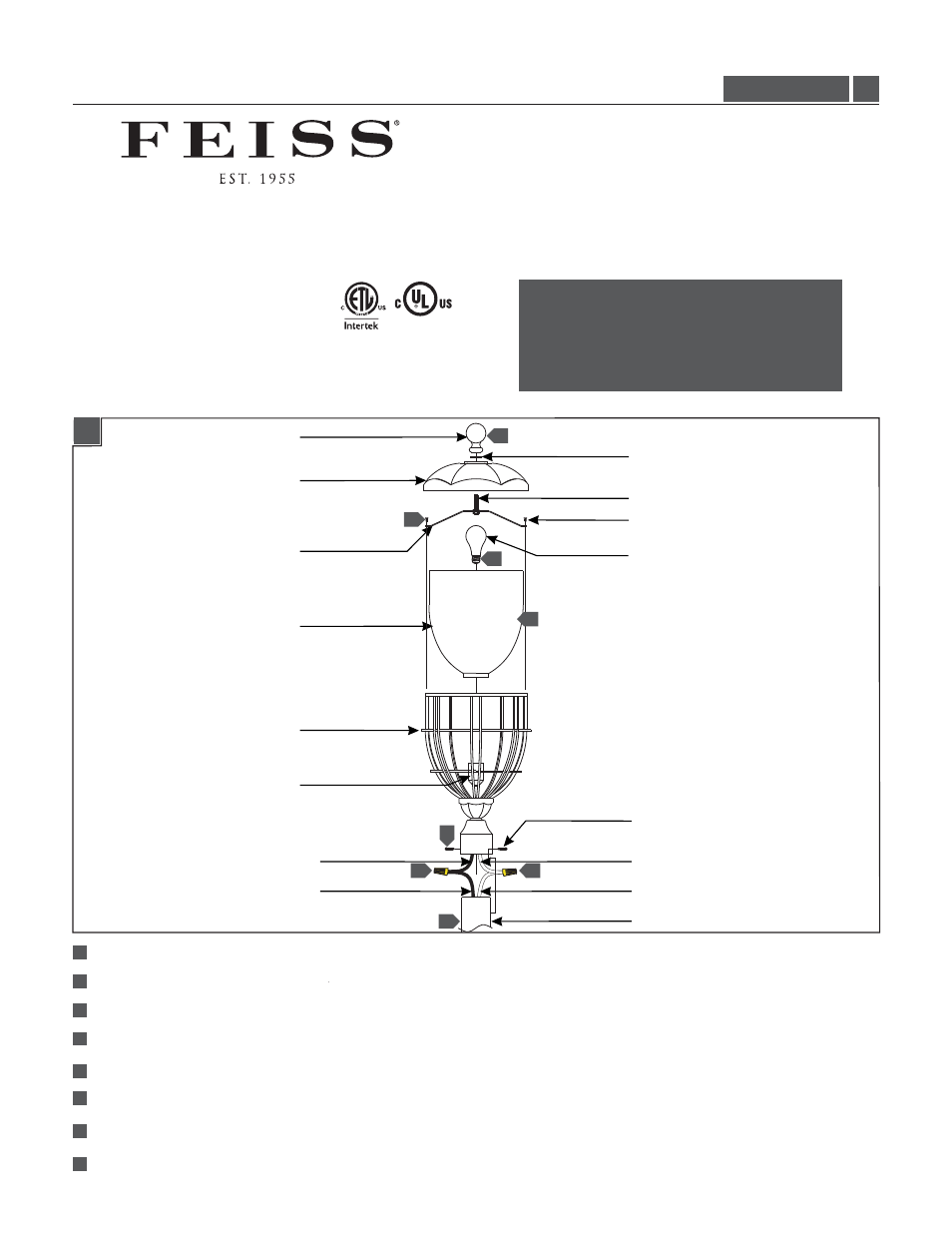

FIXTURE SCREW
SHADE
FIXTURE COVER
3
4
5
FRAME
Connect the fixture to a suitable ground in accordance to local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Secure the fixture to the post with the provided post screws making sure to neatly tuck in all wiring.
Install the shade by placing it into the fixture and over the socket.
Install the lamp by screwing it into the socket. Refer to the label on the lamp socket for Max Wattage information.
Install the frame to the fixture by securing it in place using the fixture screws.
Place the fixture cover and washer over the threaded nipple, then secure them in place by tightening the finial.
HOT WIRE
BLACK WIRE
POST SCREW
NEUTRAL WIRE
WHITE WIRE
FIXTURE
POST
3
4
6
7
4
8
G P I : ENERAL RODUCT NFORMATION
This product is listed by one of the following
“ ationally
ecognized esting aboratory” N R T L
This product is suitable for wet locations.
This product may be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
LAMP
SOCKET
7
2
6
8 FINIAL
WASHER
5
THREADED NIPPLE
