Feiss OL7808 - Manual

IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR
CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly.
Bulbs not included.
1. Electrical installation onto post: If you are replacing an
existing fixture, disconnect and remove the old fixture.
A) Slip post cup over post. Mark position of holes in
post cup on post.
B) Remove post cup and expose the supply wiring
from above post. Drill 1/8" (3mm) diameter pilot holes
in post at places where marked.
C) Connect white fixture wire to white supply wire
from post with wire connector. Connect black fixture
wire to black supply wire from post with wire
connector.
NOTE: Black wire from post may be red, round and
smooth and/or have copper conductor. White wire
from post may be square and ridged and/or have a
silver conductor.
D) Connect fixture ground wire (without plastic
insulation) to ground wire from post (usually with
green insulation) with wire connector.
IMPORTANT: Never connect ground wire to black or
white supply wires.
E) Tuck all wires inside of post.
F) Slip post cup onto post. Align holes in post cup with
holes in post. Secure them together by fastening with
sheet metal screws (enclosed).
2. Slip candle tube onto sockets.
3. Install light bulb (not included). See relamping label at
socket area for type and maximum allowed wattage.

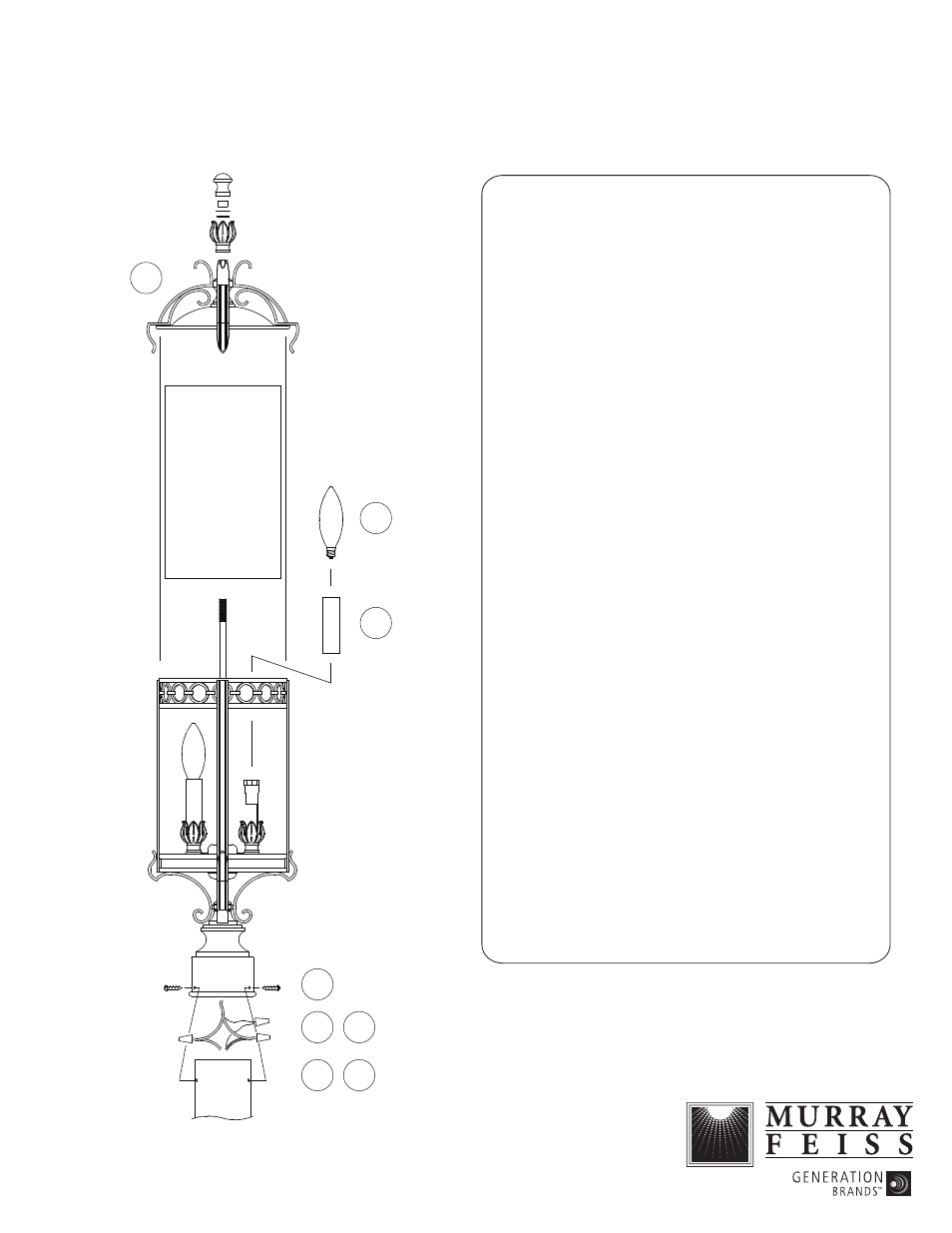

4. Slide glass shade, top cover, upper assembly, rubber
washer, neck, and spacer through threaded pipe. Then
lock them into position by fastening with finial.
Assembly Instructions For
OL7807, OL7808
(E) 12/10
3
2
4
1F
1C
1A
1D
1B
