Feiss P1147 - Manual

(E) 4/08
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR CIRCUIT BREAKER
BOX BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly. Bulb not included.
1. Install stems:
A. Choose desired installation height from dimensions shown in above diagram.
Thread fixture wires through each stems to be used. Note correct position of stems
from left diagram. Screw all stem together until secure.
B. Install bottom end of stem assembly by screwing into top of fixture.
C. Thread fixture wires through canopy and then swivel. Allow canopy to carefully
slide down without scraping the surface of stems. Then install swivel by screwing
onto top end of stem assembly.
2. Follow enclosed supplement installation instructions for electrical and fixture
installation onto house outlet box. If you do not have an outlet box at desired
location to attach the fixture than hire a qualified electrician to create one.
3. A. Install shade onto fitter by fastening with check ring and counter ring.
B. Install bulb (not included). See relamping label located near socket area for type
and maximum allowed wattage.
C. Place glass plate inside of lower ring.
D. Install lower ring onto shade by fastening with cap nut (decorative), from below.

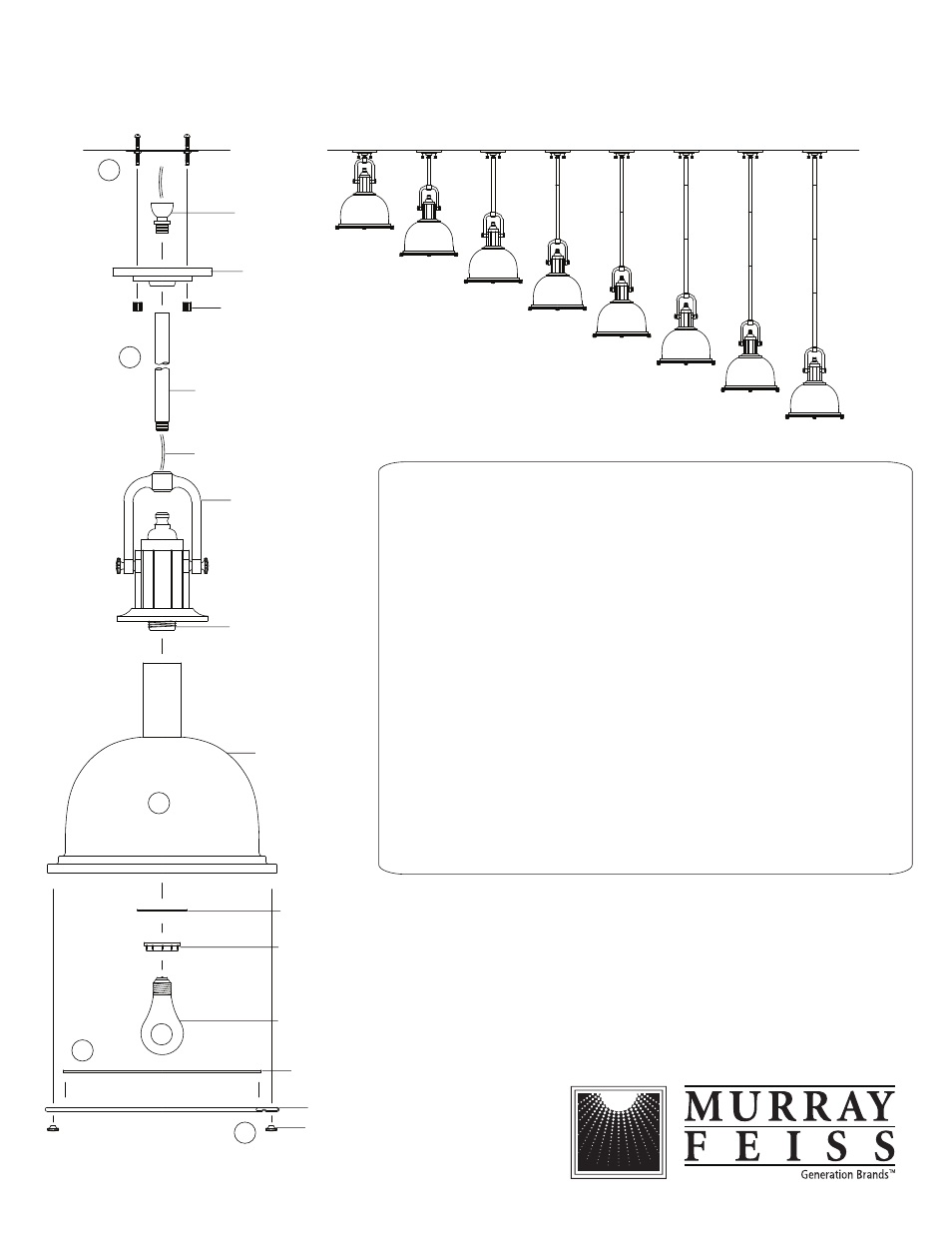

Assembly Instructions For
P1147
Cap Nut
Swivel
Canopy
(fixture plate)
Stem
Lower Ring
Cap Nut
(Decorative)
Shade
Counter
Ring
Socket
Check Ring
Bulb
(not included)
Fixture Wires
Fixture
Glass Plate
29-1/2"
59-1/2"
47-1/2"
41-1/2"
17-1/2"
23-1/2"
53-1/2"
35-1/2"
1
2
3A
3B
3C
3D
