Feiss F2904-4 - Manual

Installation Instructions for
Kandira 4 Light Pendant
1.0
F2940-4
CAUTION - RISK OF FIRE
This product requires installation by a qualified electrician.
Before installing be sure to read all instructions and
TURN THE POWER TO THE ELECTRICAL BOX OFF.
Chandelier
F2904-4_
G P I : ENERAL RODUCT NFORMATION
This product is suitable for dry locations only.
This product may be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.

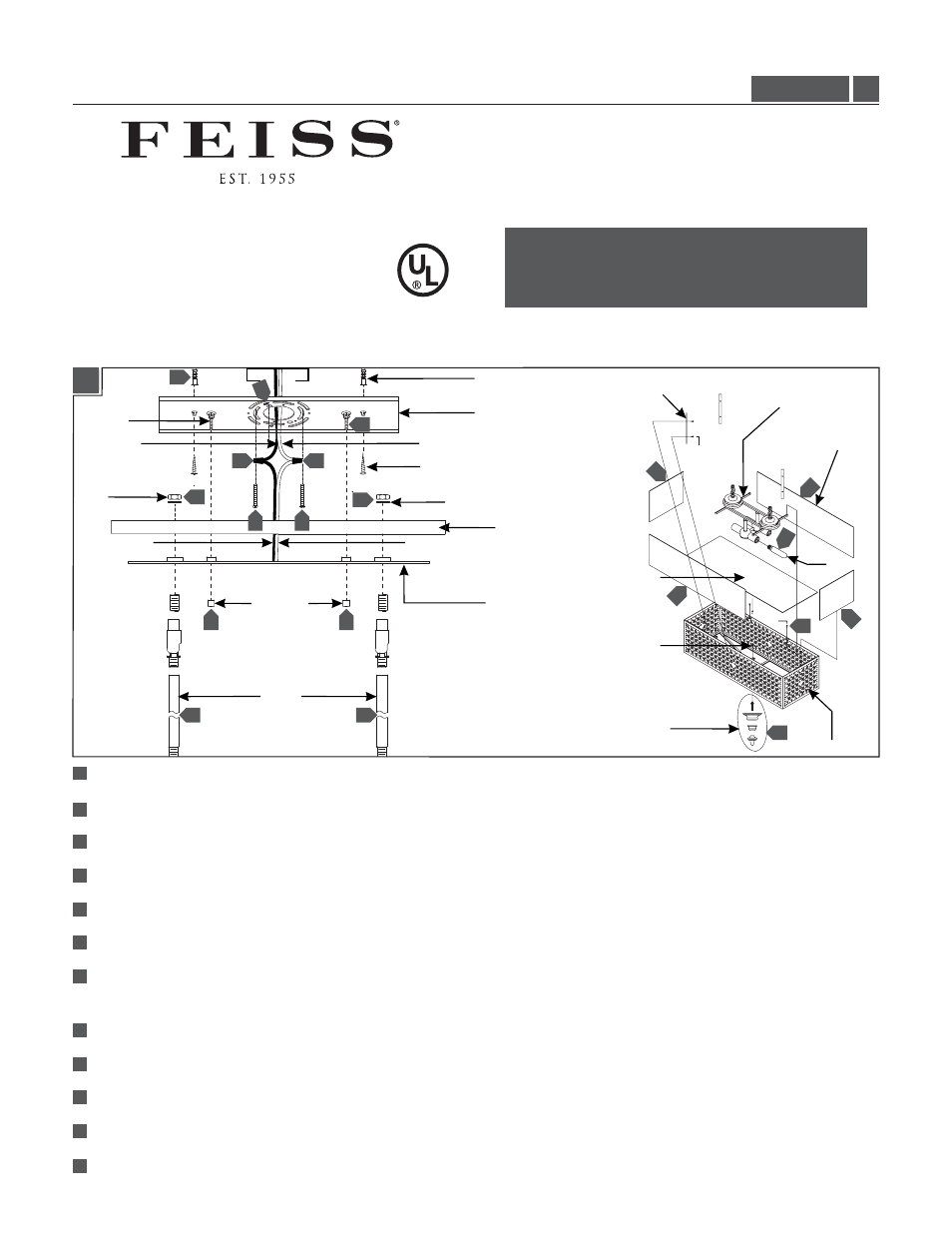

1A
Install the diffuser and side glass to the fixture by securing them with the provided brackets.
Install and secure the socket assembly with the provided screws.
Install finial set to the bottom of the fixture.
Install lamp by screwing it into the socket. Refer to the label on the lamp socket for Max Wattage information.
Secure the mounting plate to electrical box with the two provided mounting plate screws.
Install anchors to the ceiling and secure the mounting plate with the two provided anchor screws.
Determine the height of the fixture with the provided stems and assemble them by screwing them together. Then secure
the stems to the canopy and canopy plate with the provided nuts and washers.
Mount and secure the socket assembly to the stems.
Connect the fixture ground wire to a suitable ground in accordance to local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Feed the fixture wires through the stem, then secure the canopy to the mounting plate rods with the provided ball nuts
(will need assistance).
1
2
3
4
5
STEM
ASSEMBLY
6
7
8
9
NEUTRAL WIRE
WHITE WIRE
HOT WIRE
BLACK WIRE
MOUNTING PLATE
ANCHOR
ANCHOR SCREW
6
10
NUT
WASHER
10 11
BALL NUT
12
CANOPY PLATE
7
ROD
11
1
CANOPY
6 6
9
7
7 7
LAMP
BRACKET
SOCKET ASSEMBLY
FINIAL SET
FIXTURE
SIDE GLASS
DIFFUSER
SCREW
12
1
1
1
1
2
3
4
12
12
