Feiss F2690-6 - Manual

IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly. Bulbs not included.
1. Install stems:
A. Choose desired installation height. Thread fixture wires through each
stems to be used. Note correct position of stems from left diagram. Screw
all stem together until secure.
B. Pass fixtures wires located above the assembled stems through a swivel.
NOTE: Correct position of swivel from left diagram. Install swivel by
screwing onto top end of stem. Install another swivel onto opposite stem
assembly.
C. Pass fixture wires located above swivel and pass through a hole in
canopy. Lock them together by fastening with a lock washer and hex nut
from above. Repeat other side.
2. Install mounting plate:
A. Test install the mounting plate onto ceiling outlet box by fastening with
two screws supplied with the outlet box.
B. Mark with pencil the two holes on mounting plate.
C. Remove mounting plate.
D. IF SHEET ROCK CEILIGNG: Drill marked holes using 3/8" drill bit.
IF MARKED HOLES FALL DIRECTLY BELOW WOODEN CEILING
BEANS: Drill marked holes using 1/8" drill bit.
IF CONCRETE CEILING: Drill marked holes using 3/16" drill bit (for
masonry or concrete type).
NOTE: If in doubt what type of ceiling then consult a qualified contractor
or electrician for installation.
E. Before fastening the mounting plate, pass supply wires and ground wire
from ceiling outlet box through center hole in mounting plate.
F. IF SHEET ROCK CEILING: Insert long machine screws into holes in
mounting plate. Attach butterfly anchors by screwing onto protruding
screws as shown on diagram. Pinch together the ends of butterfly anchors
and push into drilled holes until anchors spring open inside of ceiling. While
gently pulling mounting plate away from ceiling, tighten screws with a screw
driver.
IF MARKED HOLES FALL DIRECTLY BELOW WOODEN CEILING
BEANS: Insert sheet metal screws through holes in mounting plate. Fasten
screws directly into drilled holes.
IF CONCRETE CEILING: Insert plastic anchors into drilled holes. Insert
sheet metal screws through holes in mounting plate. Fasten screws into
plastic anchors.
3. Connect electrical wires:
A. Cut any excess fixture wires and ground wire leaving only about 8" (20
cm) length from top of canopy. Then split fixture wires (with plastic
insulation) and strip off 3/4" (19 mm) of plastic insulation from each end.
B. Connect fixture wires (with plastic insulation):
Connect fixture wires with tracer (square and ridged) to white wire from
outlet box. Connect fixture wires without tracer (round & smooth) to
black wire from outlet box.
NOTE: Black outlet box wire may be red, round and smooth and/or have
copper conductor. White outlet box wire may be square and ridged and/or
have a silver conductor.
C. Connect ground wire:
Connect fixture ground wire to supply ground wire (usually with green
insulation) with wire connector. Note: If there is no supply ground wire at
outlet box then attach fixture ground wire securely onto green grounding
screw located at mounting plate.
IMPORTANT: Never connect ground wire to black or white supply wires
(from outlet box).
4. Install canopy:
While carefully tucking all electrical wires inside of canopy, install the
canopy onto the mounting plate by fastening with two cap nuts.
5. Install the glass panels onto the fixture with the thumb screws and washers
as shown.
6. Install shade by fastening with spacer tube and counter ring.
7. Install light bulb (not included). See relamping label at socket area for type
and maximum allowed wattage.

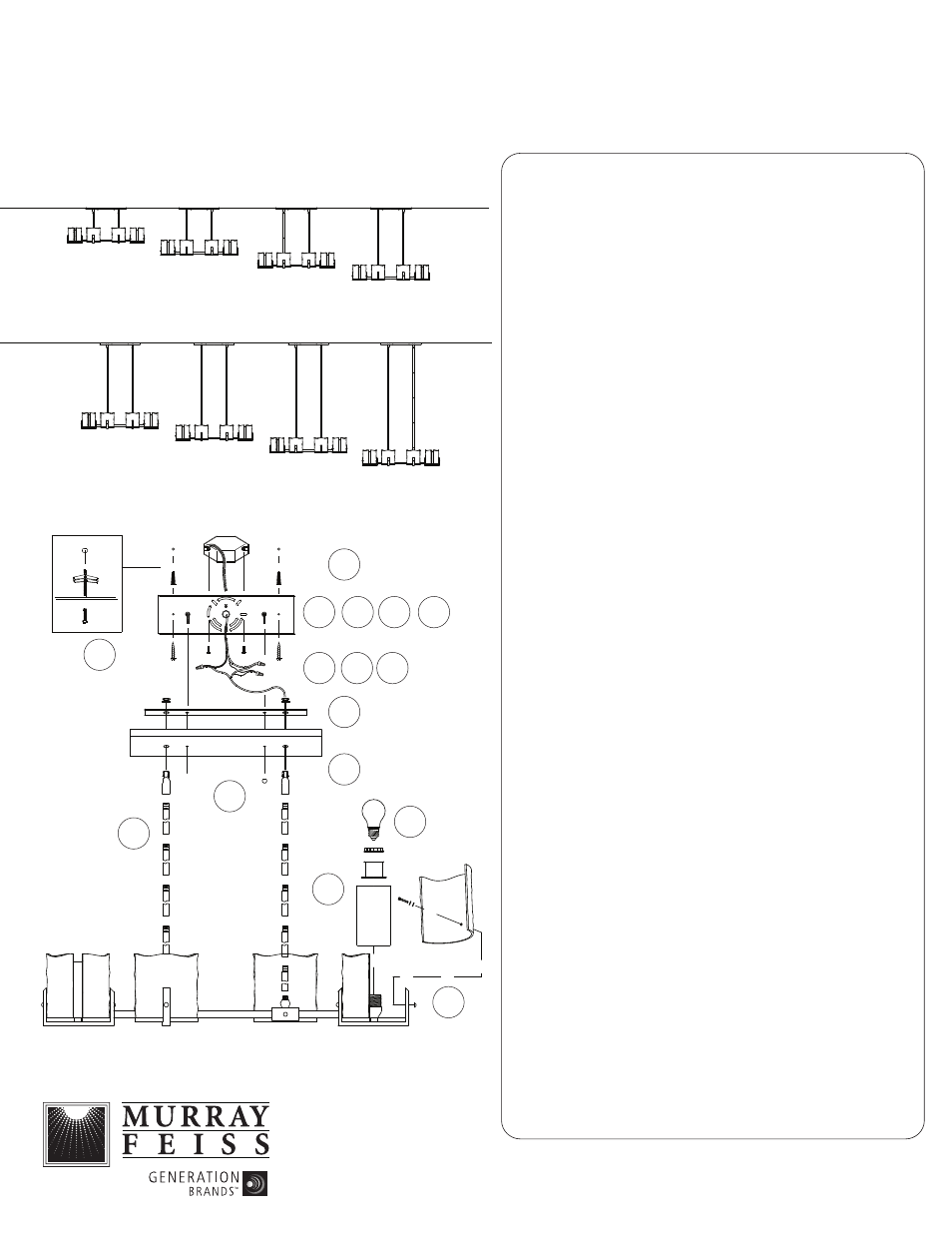

Assembly Instructions For
F2690/6
(E) 5/11
2D
2A 2B 2C 2E
2F
3A 3B 3C
1C
1B
1A
4
6
7
5
17"
23 "
29 "
35 "
59 "
52 "
47 "
41 "
