IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR CIRCUIT BREAKER BOX BEFORE STARTING
INSTALLATION
Carefully unpack and identify all parts before assembly. Bulbs not included.
1. A. Install the brackets to the outside corners of the large shade.
B. Install the large shade by placing on top of main frame.
C. Install large trim by placing on top of large shade.
D. Install the brackets to the inside corners of the small shade.
E. Install the small shade by placing on top inside of main frame.
F. Install small trim by placing on top of small shade.
2. A. Snap wire connectors from arm and main frame together. See fig. 1.
B. While carefully tucking wire connectors inside of square tube of main frame, install
arm onto main frame by fastening with screw. Repeat other arms without wires.
3. Install bulbs (not included). See relamping label located near socket area for type and
maximum allowed wattage.
4. Install stems:
A. Choose desired installation height from dimensions shown in above diagram.
Thread fixture wires through each stems to be used. Note correct position of stems
from left diagram. Screw all stem together until secure.
B. Install bottom end of stem assembly by screwing into top of fixture.
C. Thread fixture wires through canopy, plastic ring and then swivel. Allow canopy to
carefully slide down without scraping the surface of stems. Then install swivel by
screwing onto top end of stem assembly.
5. Follow enclosed supplement installation instructions for electrical and fixture
installation onto house outlet box. If you do not have an outlet box at desired
location to attach the fixture than hire a qualified electrician to create one.

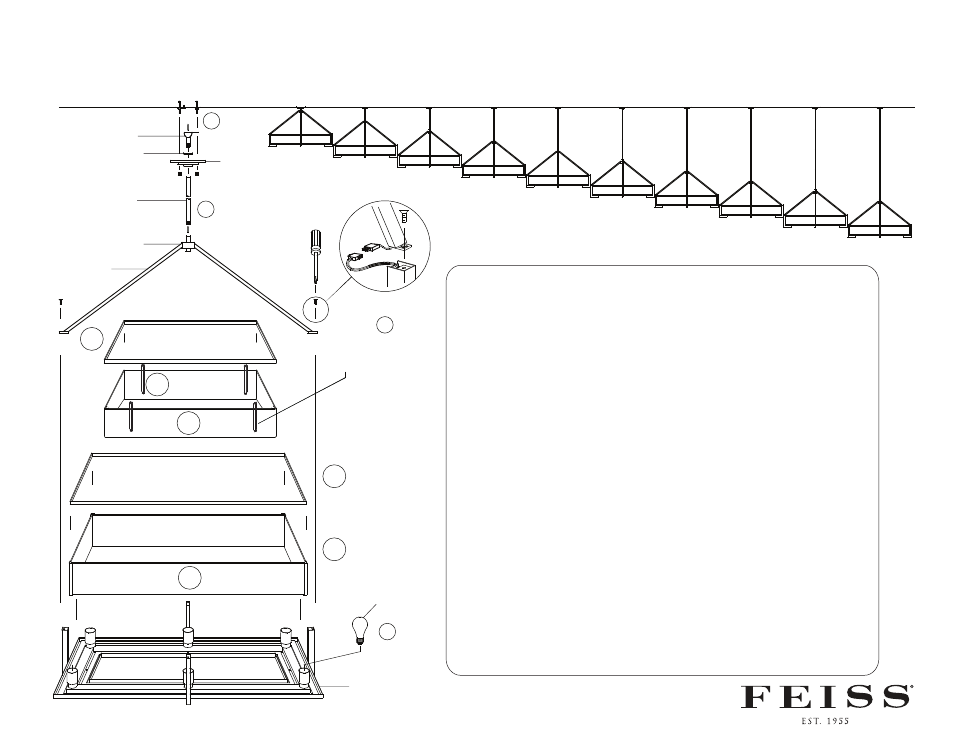

Assembly Instructions For
F2400/6
Canopy
(Fixture Plate)
Fixture
Arm
Stem
Fig. 1
Swivel
Bulb
(not included)
10/13
Main Frame
78-3/4"
66-3/4"
72-3/4"
54-3/4"
48-3/4"
42-3/4"
60-3/4"
36-3/4"
30-3/4"
24-3/4"
Bracket
3
2
1F
1D
1C
1A
4
5
Plastic Ring
1E
1B
