ASSEMBLY INSTRUCTIONS FOR F2008/8+4+4
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE
OR CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
1. Carefully remove all parts from box and
remove wrappings. NOTE: DO NOT
YET REMOVE WRAPPINGS
SURROUNDING ARMS. Carefully
lay parts on a non-abrasive surface and
identify all parts before assembly. Bulb
not included.
2. Spread open all arms so they are equally
spaced apart to each other.
3. A. Install arms onto top of upper column by
fastening with short screws.
B. Install the upper column onto top section
of mid tier arms by fastening with ball cap
nuts.
C. Install cover by slipping and letting it sit
on top of the center column.
D. Install fixture loop by screwing onto
threaded pipe which is protruding above the
cover.
E. Remove all wrappings from arms.
4. Follow enclosed supplement installation
instructions for electrical and fixture
installation onto house outlet box. If
you do not have an outlet box at desired
location to attach the fixture than hire a
qualified electrician to create one.
5. Screw short threaded pipe into bottom
coupler. Then slip lower font through the
pipe and secure by fastening with a finial.
6. Install side glass shade onto fitters by
fastening with counter ring.
7. Install bulbs (not included). See relamping
label located near socket area for type and
maximum allowed wattage.
8. Install center glass shade onto center font by
fastening with counter ring.
9. Install a candelabra base of 25 Watt
maximum bulb (not included) into center
socket.
10. Assemble glass lid and font with large
washer and hex nut.
11. Sit lid gently on top of center glass shade.

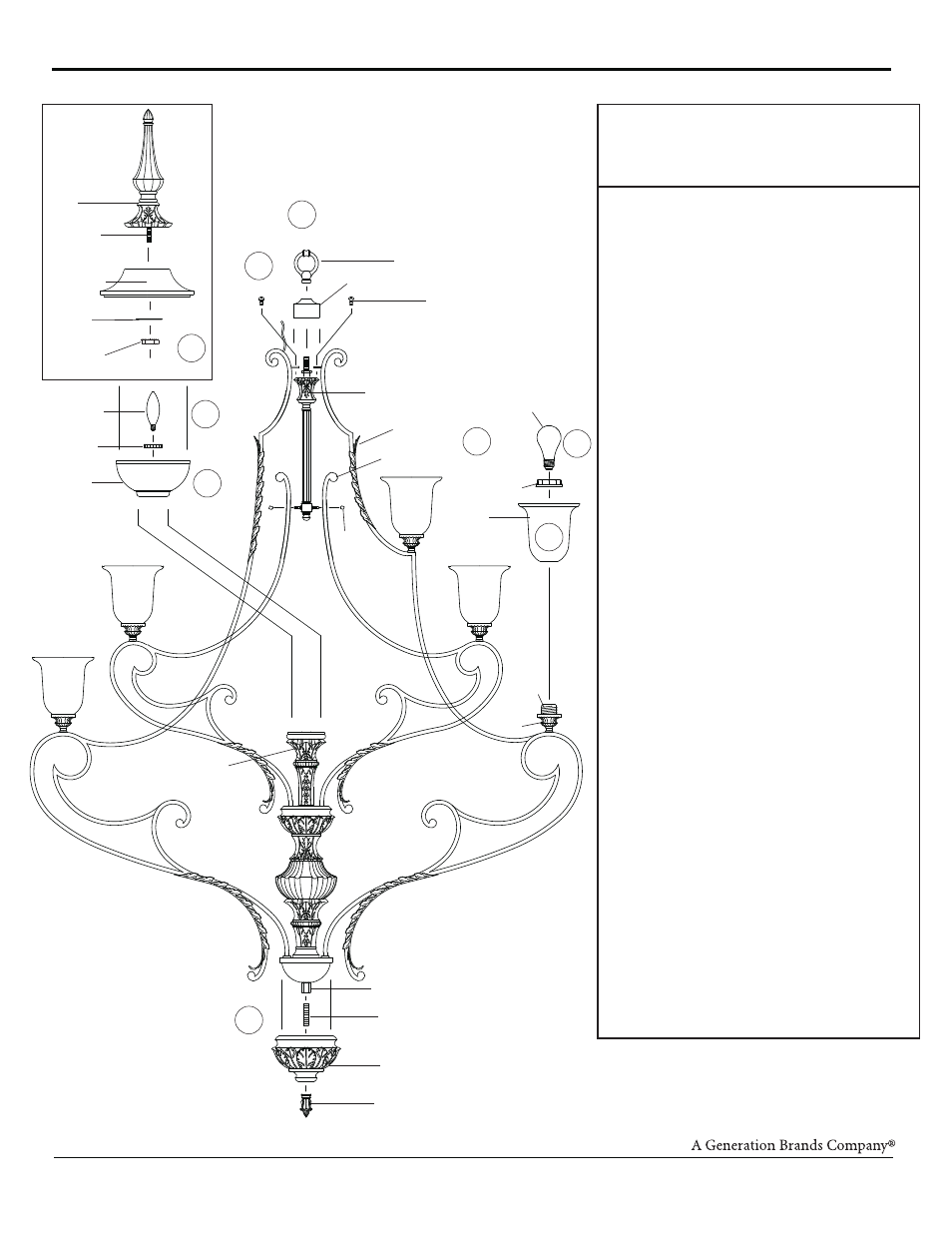

Fixture Loop
Upper Column
Cover
Bottom Coupler
Short Threaded Pipe
Lower Font
Finial
Bulb
(not included)
Bulb (not
included)
Counter Ring
Counter
Ring
Side
Glass
Shade
Center
Glass Shade
Fitter
Upper Tier Arm
Mid Tier Arm
Ball
Cap
Nut
Socket
Center Font
Short Screws
(E) REV 9/13/06
M U R R A Y F E I S S ©MURRAY FEISS IMPORT LLC.
4
3
9
8
2 7
6
5
Glass Lid
Font
Hex Nut
Large
Washer
10
Short
Threaded
Pipe
