Feiss F2081-3 - Manual

(E) 5/19/06
ASSEMBLY I NSTRUCTI ONS FOR F2081-3
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE
OR CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before
assembly. Bulb not included.
1. Install upper column by fastening with short screws
onto ring located at top of main frame. Gently tuck
any slack of wires inside of rectangular cover, which
is located at bottom of the upper column, before
fastening.
2. Install glass panels:
A. Take one glass panel and carefully slip through
inside of main frame. Position it so both side edges
of the panel are located hidden behind vertical ribs of
the main frame.
B. Lock the glass panel by bending tabs located at
top and bottom of main frame.
C. Repeat other glass panels.
3. Install stems:
A. Choose desired installation height from any
combination of stems provided. NOTE: Additional
stems can be purchased to increase installation height.
Do not add more stems than will allow 6" (15 cm)
of fixture wires above canopy. Thread fixture wires
through each stems to be used. Screw stems together
until secure. Screw stem assembly into top of upper
column until secure. NOTE: This fixture can be
installed without any stems for direct mount
onto canopy.
B. Screw swivel securely onto top end of stem
assembly (or top end of upper column for without
stem installation).
4. Follow enclosed "Multiple Standard Installation
Instructions" for electrical and fixture installation
onto ceiling junction box.
5. Install bulb (not included). See relamping label
located at socket area for type and maximum
allowed wattage.
6. Install the center pipe by screwing onto bottom of
main frame. Note correct position of center pipe
at illustration.
7. Install glass plate by slipping through the already
installed center pipe and then fastening with a finial.
IMPORTANT: Do not over tighten.
M U R R A Y F E I S S
©MURRAY FEI SS I MPORT LLC. A Quality Home Brands Company®
4
3
2
1
5
6
7

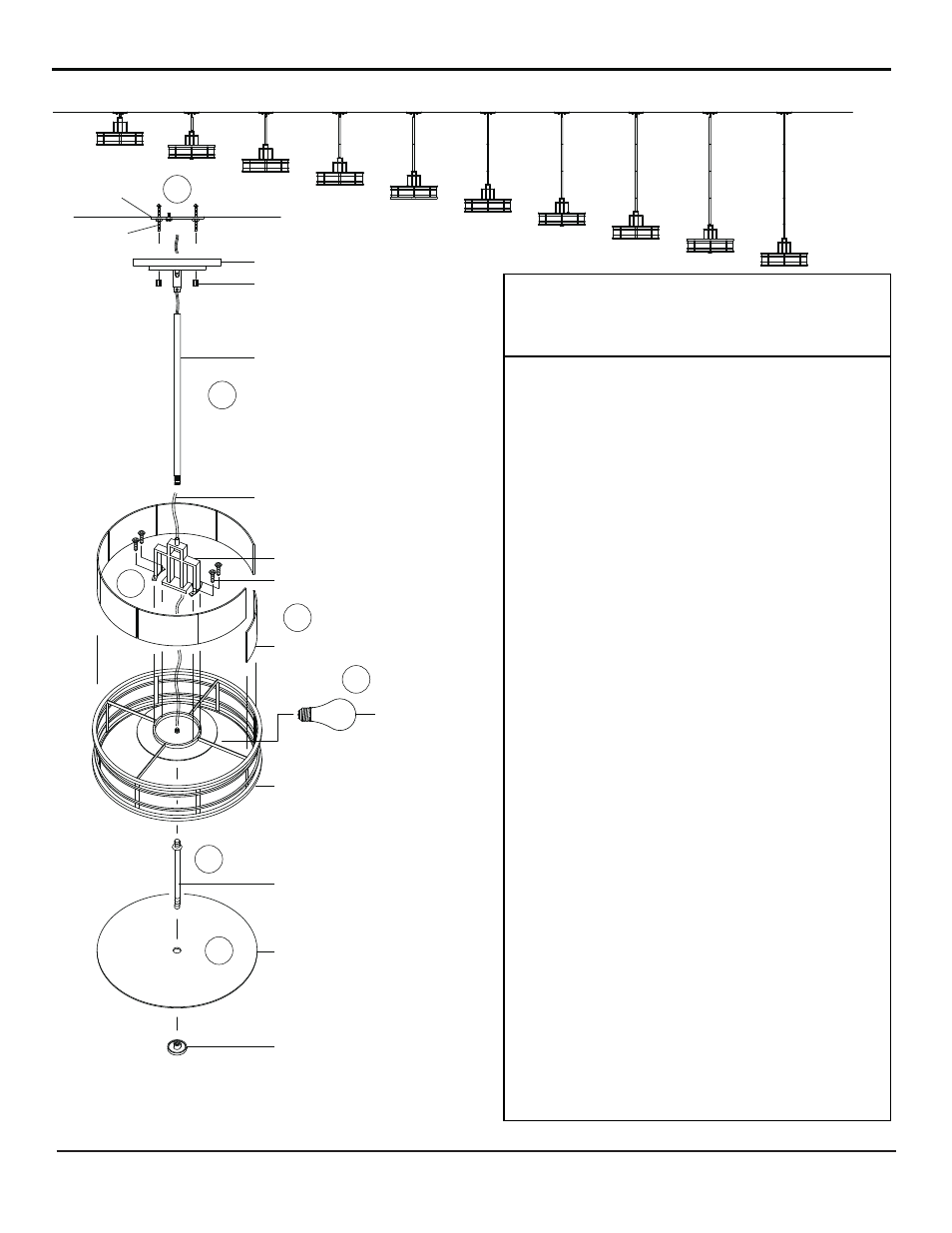

15" 21" 27" 33" 39" 45" 51" 57" 63" 69"
Mounting Plate
Machine Screws
Canopy (fixture plate)
Cap Nuts
Stems
Fixture Wires
Upper Column
Short Screws
Glass Panel
Bulb
(not included)
Main Frame
Center Pipe
Glass Plate
Finial
