Feiss F2697-3 - Manual

IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR
CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly. Bulbs
not included.
1. A. Install a hex nut onto one end of long threaded pipe leaving
about 3/8” (10 mm) of thread exposed.
B. Install inner shade onto bottom of socket assembly by
fastening with a lock washer and threaded pipe. Tighten hex
nut.
2. Install glass plate onto bottom of inner shade by fastening with
a round washer and lower column. IMPORTANT: DO NOT
OVER TIGHTEN.
3. A. Hook top of arm onto center column.
B. Then install bottom ends of arm by fastening onto
corresponding holes on top of main frame. Use enclosed hex
key to tighten set screws.
C. Repeat other arms.
4. Install light bulbs (not included). See relamping label located at
socket area for type and maximum allowed wattage.
5. Follow enclosed supplement installation instructions for
electrical and fixture installation onto house outlet box. If you
do not have an outlet box at desired location to attach the
fixture then hire a qualified electrician to create one.
6. Hang glass drop at bottom of finial.
NOTE: To replace broken drop or pin, gently bend open pin,
remove broken drop or pin, hook new one, then close back pin.
Avoid bending pin into sharp angle.

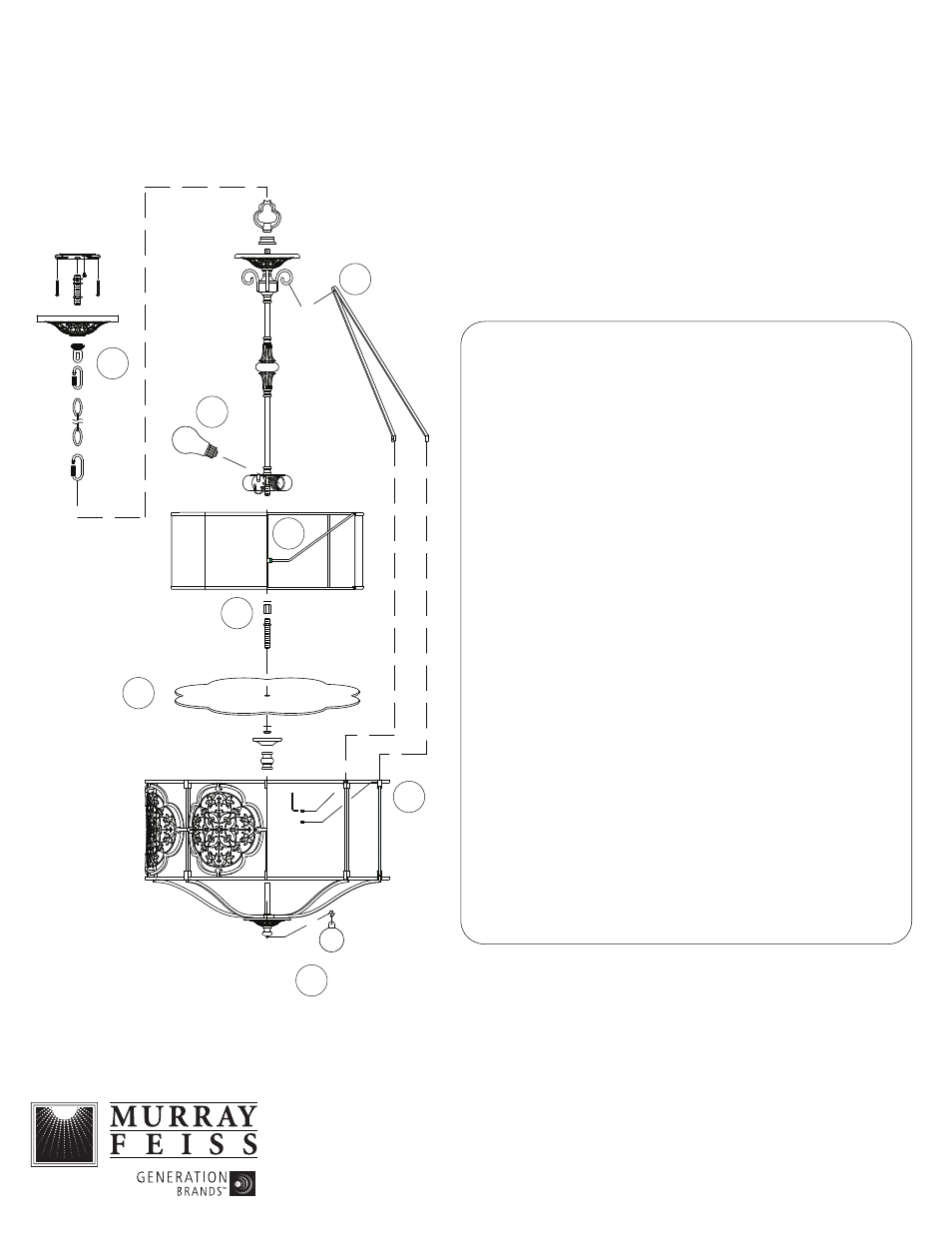

Assembly Instructions For
F2697/3
(E) 5/11
1A
6
3A
3B
1B
5
4
2
