ASSEMBLY INSTRUCTIONS FOR F2218/3
IMPORTANT
TURN OFF THE POWER AT THE MAIN
FUSE OR CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Chain
Adjustable
Chain link
Adjustable
Chain link
Mounting Plate
Ball Cap Nut
Fixture Plate
Fixture Wire
Mounting Screws
Carefully unpack and identify all parts
before assembly. Bulbs are not included.
1. Attach Chains:
A. Open adjustable chain links by turning
small round tube at one side.
B. Hook chain onto open adjustable chain
link. Then attach adjustable chain link
onto loop located at fixture plate. Close
adjustable chain link by turning back
small round tube.
C. Repeat other side.
D. At this point determine the desired
length of chains to hang. Remove any
unwanted chain links. Additional chains
can be purchased through your local
Murray Feiss retailer.
E. Hook another open adjustable chain
link at bottom of each chain. Then attach
adjustable chain links onto loop located at
top of fixture arm curls. Close adjustable
chain links by turning back small round
tube.
2. Take ground wire (without plastic
insulation) and weave through above
chain links. Then thread through hole in
fixture plate loop. Repeat with fixture
wires (with plastic insulation).
3. Follow enclosed supplement installation
instructions for electrical and fixture
installation onto house outlet box. If you
do not have an outlet box at desired
location to attach the fixture than hire a
qualified electrician to create one.
4. Install shade onto fitters by fastening
counter ring onto threaded socket.
5. Install bulbs (not included). See
relamping label located at socket area for
type and maximum allowed wattage.

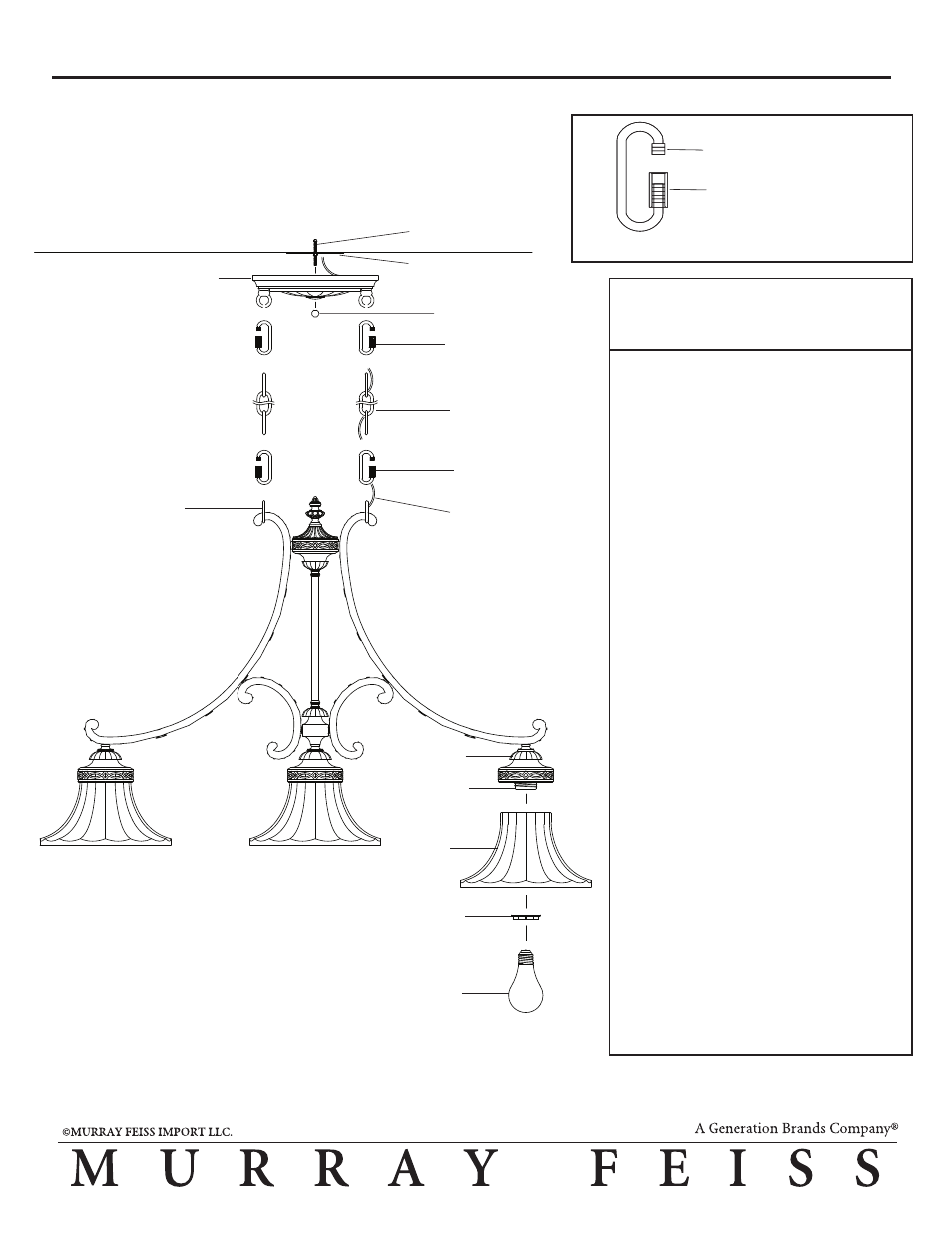

Fixture Loop
Twist to open or close
chain link.
Threaded Chain Link
Fitter
Shade
Counter Ring
Bulb
(not included)
Socket
Diag. A
