Feiss F2222-4 - Manual

(E) 4/07

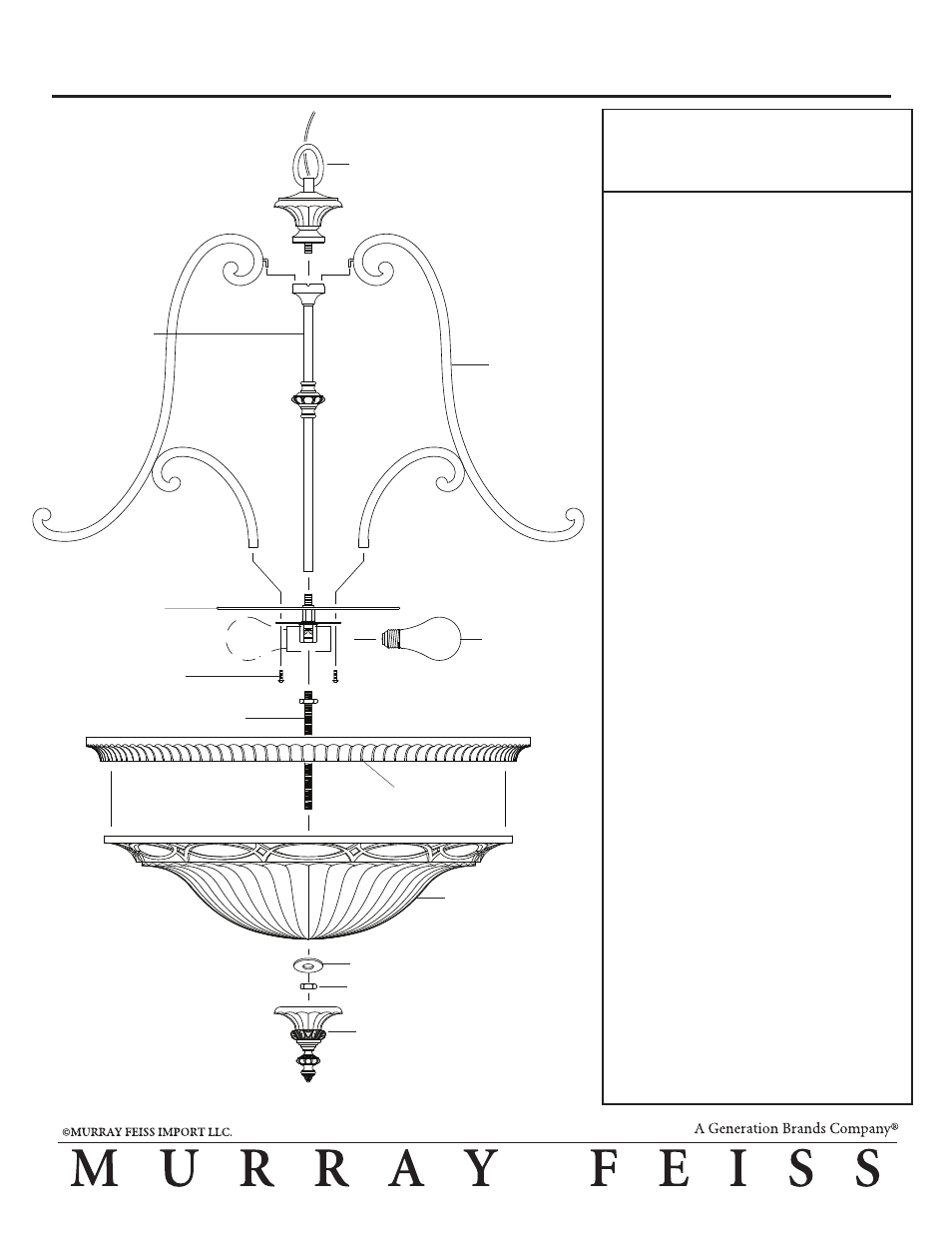

ASSEMBLY INSTRUCTIONS FOR F2222/4
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE
OR CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Socket
Assembly
Bulb
(not included)
Fixture Loop
Center Column
Glass Shade
Carefully unpack and identify all parts
before assembly. Bulbs are not
included.
1. Thread fixture wires through center
column. Install center column by
screwing onto top of socket assembly.
2. Install arms:
A. Take one arm and hook onto top
section of center column. Make certain
arm is hooked onto a notch.
B. Then install bottom end of arm onto
plate located at socket assembly by
fastening with a screw from the bottom.
C. Repeat others. Note: make certain
top and bottom section of each arm is
aligned in correct angle.
3. Thread fixture wires exiting above
center column through fixture loop.
Install loop by screwing onto center
column.
4. Install a hex nut onto one end of long
threaded pipe leaving about 3/8" (10
mm) thread exposed. Screw same end
of threaded pipe into bottom of socket
assembly. Tighten hex nut.
5. Follow enclosed supplement
installation instructions for electrical
and fixture installation onto house
outlet box. If you do not have an outlet
box at desired location to attach the
fixture than hire a qualified electrician
to create one.
6. Install light bulbs (not included). See
relamping label located near socket
area for type and maximun allowed
wattage.
7. Sit decorative pan on top of glass shade.
Then while holding securely onto the
glass shade, slide through the installed
threaded pipe until pan touches bottom
end of arms. Secure into position by
fastening with a flat washer and hex
nut. Afterward install finial by
screwing onto protruding threaded pipe.
Pan
Flat Washer
Hex Nut
Finial
Arm
Screws
Long Threaded Pipe
