(E) 4/07

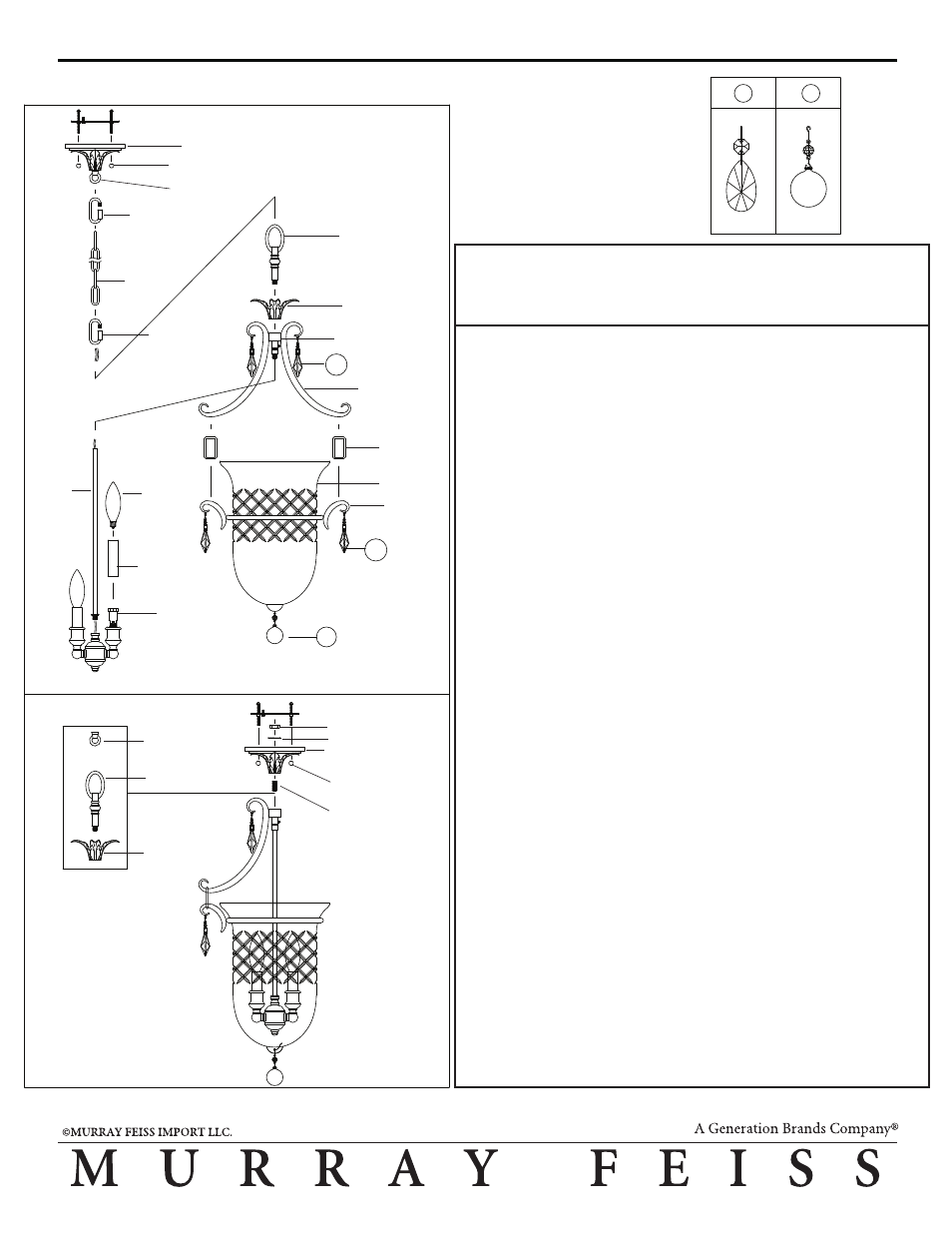

ASSEMBLY INSTRUCTIONS FOR F2227/3

IMPORTANT

TURN OFF THE POWER AT THE MAIN FUSE

OR CIRCUIT BREAKER BOX

BEFORE STARTING INSTALLATION

Carefully unpack and identify all parts before assembly. Bulbs are not included.

1. Install center pipe by screwing socket assembly. Note correct position of

center pipe from left diagram. Install top end of center pipe by screwing

securely onto swivel.

2. This fixture can be mounted onto ceiling either as chain hung or flush mount:

CHAIN HUNG INSTALLATION- Fig. 1:

A. Thread fixture wires through upper leaf and fixture loop. Then lock all

together by fastening fixture loop.

B. At this point, determine the desired length of chain to hang. Remove any

unwanted links with chain pliers.

C. This fixture is supplied with 2 adjustable chain links. These links are

opened and closed by twisting cylinder on chain link. One adjustable chain

link should be installed onto canopy loop. And another adjustable chain link

installed onto the fixture loop. The standard chain should be installed in

between these 2 adjustable chain links.

D. Take ground wire and weave through above chain links, then thread

through center hole in canopy loop. Repeat with fixture wire (wire with

plastic insulation).

FLUSH INSTALLATION- Fig. 2:

A. Remove and discard fixture loop and upper leaf.

B. Remove and discard canopy loop from canopy.

C. Take canopy threaded pipe and screw into top of fixture.

D. Thread fixture wires through canopy leaf, canopy, lock washer, and hex

nut. Lock all together on top of fixture by tightening hex nut onto protruding

threaded pipe.

3. Cut excess wires leaving only 6" (15 cm) length of wires above canopy. Split

fixture wire into two strands. Then strip off 3/4"(19mm) of outer plastic

insulation.

4. Follow enclosed supplement installation instructions for electrical and fixture

installation onto house outlet box. If you do not have an outlet box at desired

location to attach the fixture than hire a qualified electrician to create one.

5. Slip candle tube over sockets.
6. Install bulbs (not included). See relamping label located near socket area for

type and maximum allowed wattage.

7. Install shade:

A. Install ring by hooking onto bottom curl of each arms.

B. Slip shade over the frame.

C. Grabbing firmly onto the frame, lift and hook the frame onto the rings.
8. Hang all crystal glass parts as shown on drawing. NOTE: To replace broken

crystals extras are included in hardware bag. Replace by gently bending open

pin, remove broken crystal, hook new one, then close back pin. Avoid

bending pin into sharp angle.

Fixture Loop

Fixture Loop

Chain

FIG.1

CHAIN HUNG

INSTALLATION

FIG.2

FLUSH MOUNT

INSTALLATION

Upper Leaf

Upper Leaf

Swivel

Center

Pipe

Canopy (Fixture Plate)

Canopy

(Fixture Plate)

Ball Cap Nut

Ball Cap Nut

Canopy Loop

Canopy

Loop

Hex Nut

Canopy

Threaded Pipe

Candle Tube

Adjustable

Chain Link

Adjustable

Chain Link

Bulb

(not

included)

Socket

Lock Washer

2

1

1

2

1

Arm

Ring

Frame

Shade
