IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE
OR CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly.
Bulbs not included.
1. This fixture can be mounted onto ceiling either as
chain hung or flush mount:
CHAIN HUNG INSTALLATION- Fig. 1:
A. Pass fixture wires through fixture loop. Then install
fixture loop by screwing on top of fixture.
B. At this point, determine the desired length of chain
to hang. Remove any unwanted links with chain pliers.
C. This fixture is supplied with two adjustable chain
links. These links are opened and closed by twisting
cylinder. One adjustable chain link should be installed
onto loop on top of column and the other should be
installed onto canopy loop. The standard chain should
be installed in between these two adjustable chain links.
D. Take ground wire (without plastic insulation) and
weave through above chain links, then thread through
center hole in canopy loop. Repeat with fixture wires
(with plastic insulation).
FLUSH INSTALLATION- Fig. 2:
E. Remove and discard fixture loop and canopy loop.
F. Thread fixture wires through canopy and hex nut.
Lock all together on top of fixture by tightening hex
nut onto protruding threaded pipe.
2. Install candle tube onto fitter.
3. Install light bulb (not included). See relamping label at
socket area for type and maximum allowed wattage.
4. Place shade onto bulb.
5. Follow enclosed supplement installation instructions
for electrical and fixture installation onto house outlet
box. If you do not have an outlet box at desired
location to attach the fixture then hire a qualified
electrician to create one.
Assembly Instructions For
F2641/3
(E) 12/10
3
2
1A
1B
1C
1E
1E
1F
1D
5
5
4

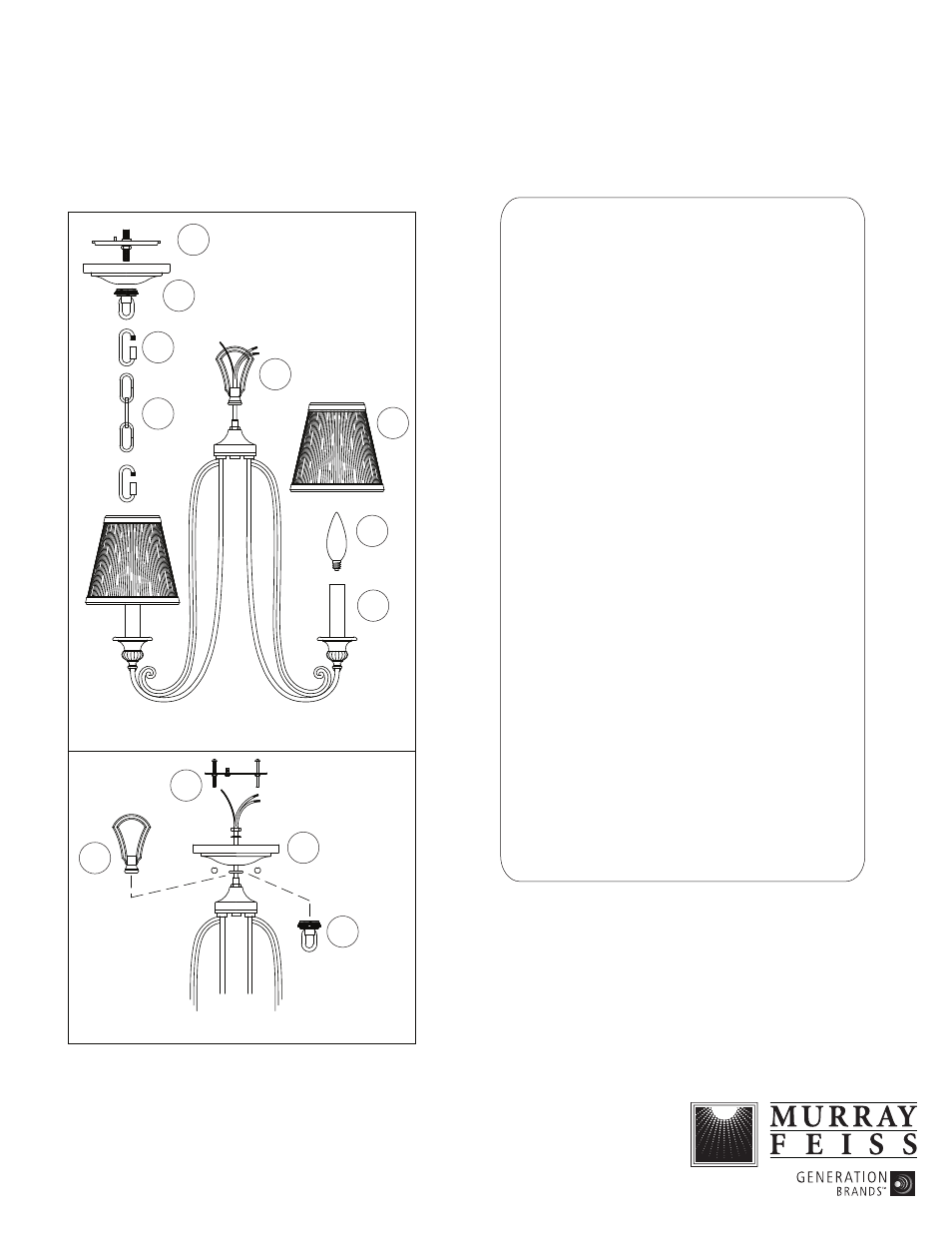

FIG. 1
CHAIN SUSPENDED
INSTALLATION
FIG. 2
FLUSH INSTALLATION
