ASSEMBLY INSTRUCTIONS FOR F1837/3
M U R R A Y F E I S S
©MURRAY FEISS IMPORT CORP.
Machine Screw
Small Hex Nut
Ball Cap Nuts
Canopy
Threaded
Chain Link
Threaded
Chain Link
Chain
Fixture Loop
Mounting
Plate
Canopy Loop
Bulb
(not included)
Counter Ring
Glass Shade
Top Threaded Pipe
Fixture Wire
& Ground Wire
Fixture Loop
Counter Ring
Socket
Fitter
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE
OR CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all
parts before assembly. Bulbs are
not included.
1. Thread top threaded pipe into coupler inside
top font. Carefully thread fixture wire through
top threaded pipe, cover and fixture
loop. Screw fixture loop onto top threaded
pipe until secure.
2. Remove counter rings from sockets.
3. Install shades onto fitters by fastening
counter rings onto threaded sockets.
4. Install bulbs (Not included). See relamping
label located at socket area for type and
maximum allowed wattage.
5. Follow enclosed “Chain Suspended
Fixture Installation Instructions” for
electrical and fixture installation onto ceiling
outlet box.
6. This fixture is supplied with 2 threaded
chain links. These links are opened and
closed by twisting cylinder on chain link.
One threaded chain link should be installed
onto the fixture loop and the other should be
installed onto the canopy loop. The standard
chain should be installed in between these 2
threaded chain links.
Top Font
Cover

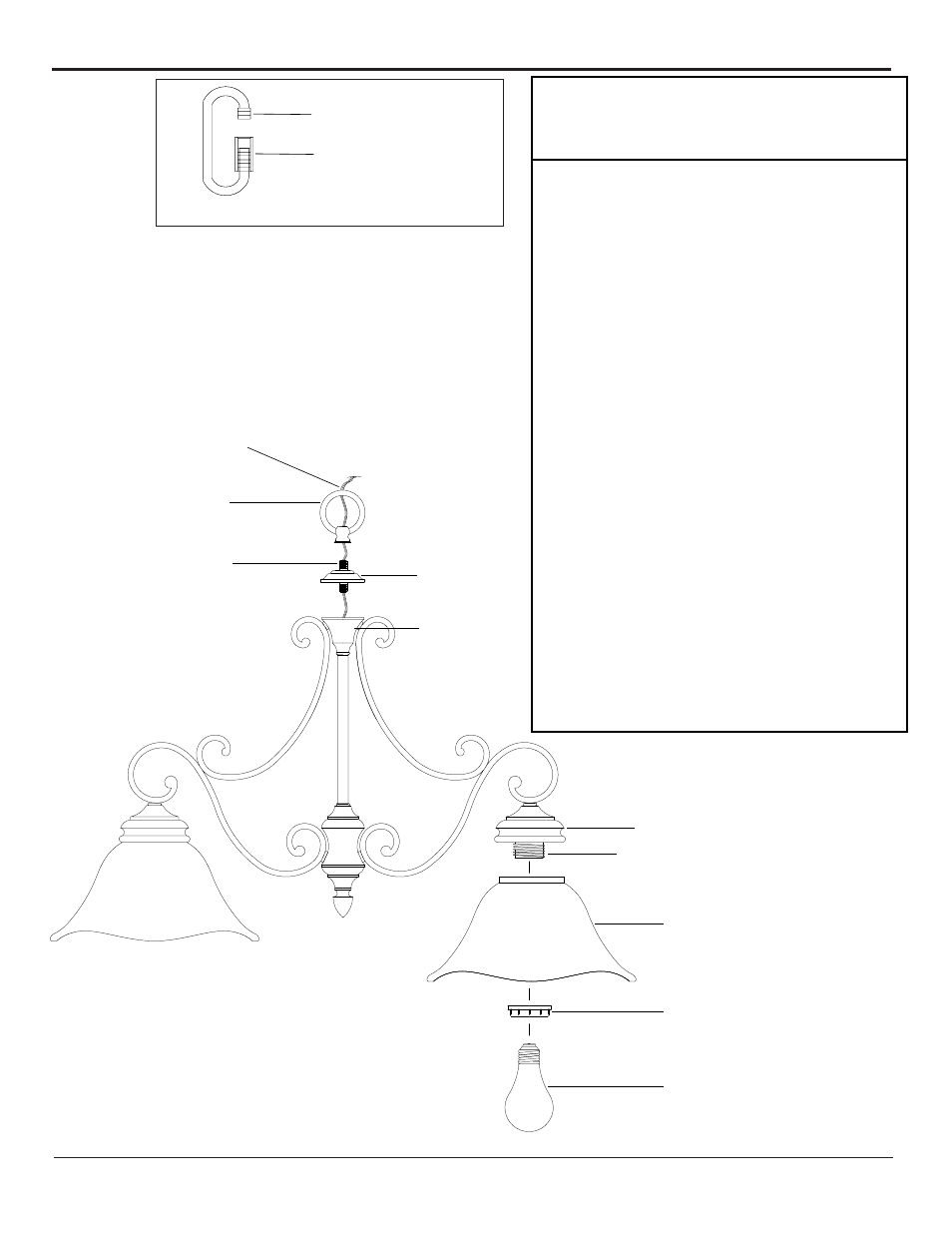

Fig. 1
Twist to open or close
chain link.
Threaded Chain Link
