Installation Instructions for
G P I : ENERAL RODUCT NFORMATION
This product is listed by one of the following
“ ationally
ecognized esting aboratory” N R T L
This product is suitable for damp locations.
This product may be dimmed with a standard incandescent dimmer.
This instruction shows a typical installation.
Secure the mounting plate to the electrical box with two mounting plate screws.
Connect the fixture to a suitable ground in accordance to local electrical codes.
Connect the white fixture wire to the neutral power line wire with a wire nut.
Connect the black fixture wire to the hot power line wire with a wire nut.
Place the fixture base onto the mounting plate studs and secure them in place by tightening the ball nuts.
Place the shade and spacer over the socket, then secure them in place by tightening the collar nut.
Screw the lamp into the socket. Refer to the label on the lamp socket for Max Wattage information.
1
2
1A
3
CAUTION - RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
4
1
1
6
7
5
MOUNTING PLATE

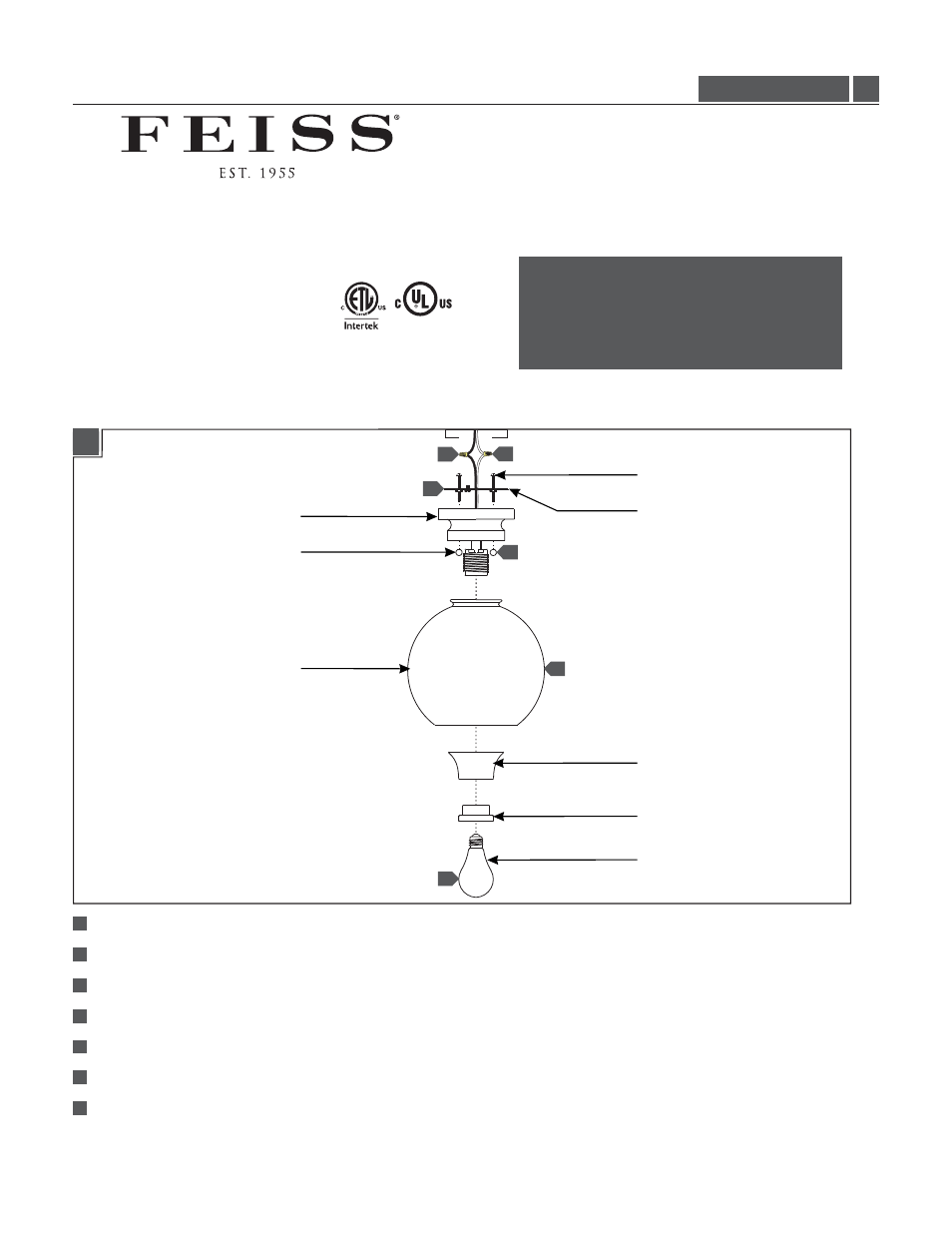

Tabby 1 Light Flush Mount
1.0
F 403-FM407 M
Ceiling
F 403, FM407_ M
LAMP
FIXTURE BASE
7
SPACER
SHADE
5
4 3
1
6
COLLAR NUT
BALL NUT
MOUNTING PLATE STUD
