Feiss VS14503 - Manual

(E) 10/08
Assembly Instructions For
VS14503
Bulb
(not included)
Socket
Fixture
Plate
Shade
Glass Dome
Fitter
Headless Screw
Hex Key
(supplied)
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR
CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before assembly.
Bulb not included.
1. Install mounting plate (see fig. 1):
A. Take supply wires from outlet box and carefully pass
them through center hole of mounting plate. Note: the
flat surface of mounting plate must face the outlet box
and the angled rim side facing toward you.
B. Install mounting plate onto the outlet box using two
screws supplied with outlet box.
C. Spread electrical wires so that black wires are on
one side of the outlet box and the white wires are on
the other side.
2. Connect electrical wires (see fig. 1):
A. Connect fixture wires (with plastic insulation)
Connect fixture wire without tracer (round and
smooth) to black (or red) supply wire. Connect fixture
wire with tracer (square and ridged) to white supply
wire. Wrap with electrical tape to secure wire
connector and wires together.
B. Connect ground wire: Connect fixture ground wire
to supply ground wire (usually with green insulation)
with wire connector. Note: If there is no supply ground
wire at outlet box then attach fixture ground wire
securely onto green grounding screw located at
mounting plate. See fig. 2.
IMPORTANT: Never connect ground wire to black or
white supply wires.
3. Install fixture plate (see fig. 1): While carefully tucking
all electrical wires inside of fixture plate, install the
fixture plate onto the mounting plate by fastening with
a head less screw. Use provided hex key to tighten.
4. A. Install bulb (not included). See relamping label
located near socket area for type and maximum
allowed wattage.
NOTE: Make certain not to handle lamp with bare
hand since this will cause lamp to shatter at high heat.
Handle with clean soft cloth.
B. Install glass dome by screwing onto socket.
5. Install shade by sliding into slot in fitter.

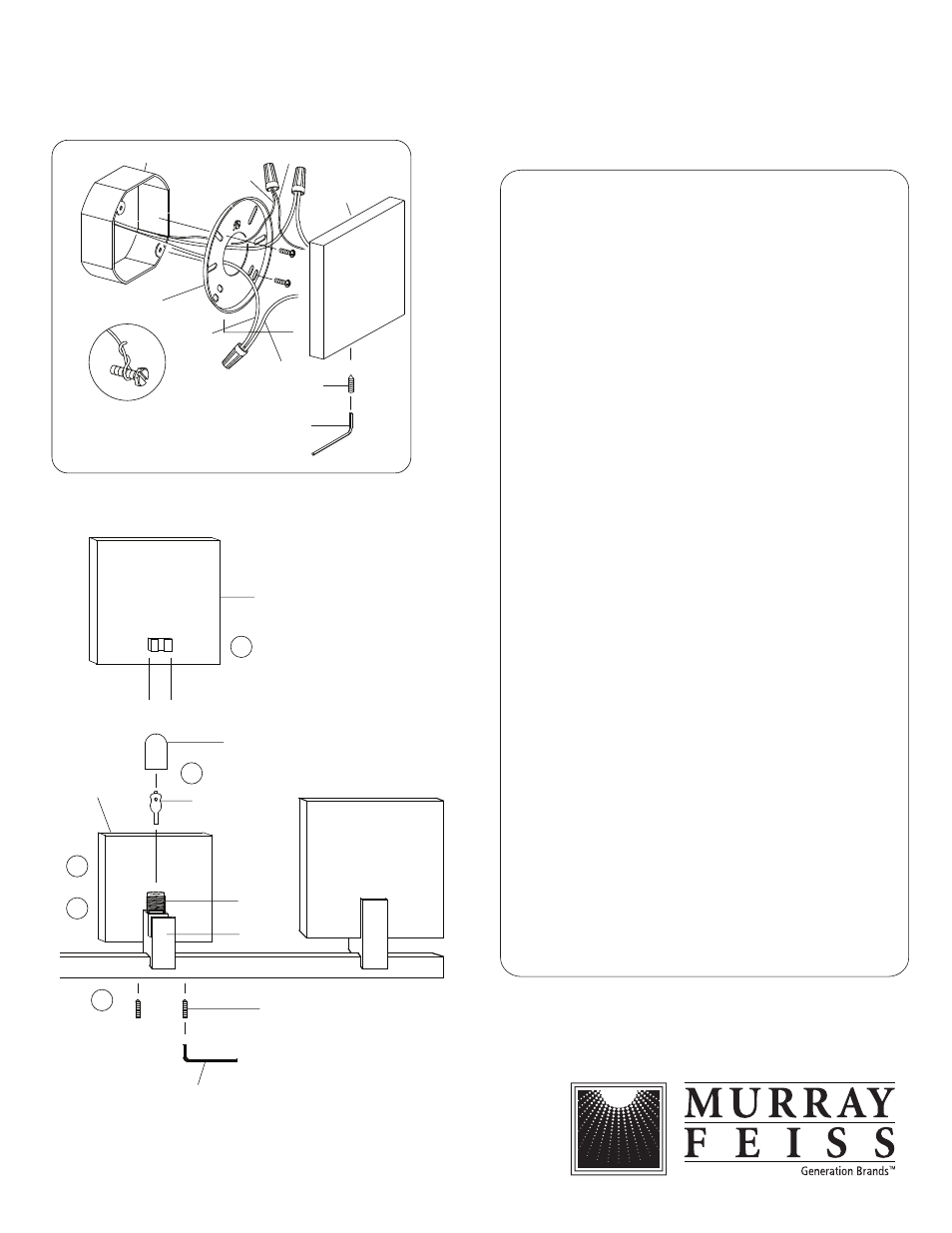

FIG. 1
FIG. 2
Fixture Wire
Fixture Ground Wire
Supply
Ground Wire
Supply
Wire
Fixture
Plate
Hex Key
Head less Screw
Mounting Plate
Outlet Box
2
1
3
4
5
