Assembly Instructions For
4
5
3
1 2
IMPORTANT
TURN OFF THE POWER AT THE MAIN FUSE OR
CIRCUIT BREAKER BOX
BEFORE STARTING INSTALLATION
Carefully unpack and identify all parts before
assembly. Bulbs not included.

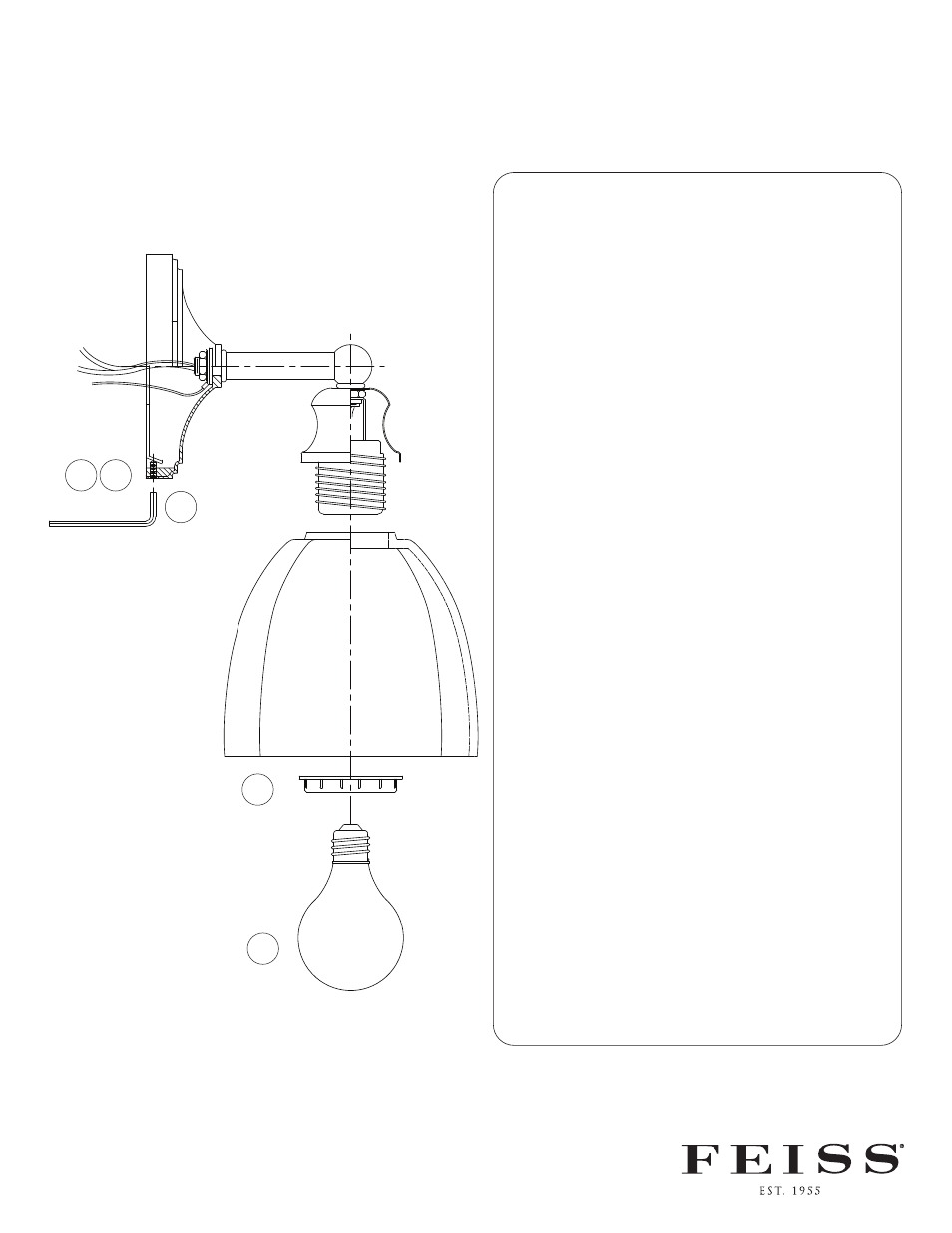

1. Install mounting plate :
A. Take supply wires from outlet box and
carefully pass them through center hole of
mounting plate. Note: The flat surface of
mounting plate must face the outlet box and
the angled rim side facing toward you.
B. Install mounting plate onto the outlet box
using two screws supplied with outlet box.
C. Spread electrical wires so that black wires
are on one side of the outlet box and the white
wires are on the other side.
2. Connect electrical wires :
A. Connect white fixture wire(s) to white
supply wire from outlet box with wire
connector. Connect black fixture wire(s) to
black supply wire from outlet box with wire
connector.
NOTE: Black outlet box wire may be red, round
and smooth and/or have copper conductor.
White outlet box wire may be square and
ridged and/or have a silver conductor.
B. Connect fixture ground wire (without plastic
insulation) to ground wire from outlet box
(usually with green insulation) with wire
connector.
Note: If there is no supply ground wire at
outlet box then attach fixture ground wire
securely onto green grounding screw located at
mounting plate.
IMPORTANT: Never connect ground wire to
black or white supply wires (from outlet box).
3. Install fixture plate. While carefully tucking all
electrical wires inside of fixture plate, install
the fixture plate onto the mounting plate by
fastening with set screw. Use an allen key to
tighten.
4. Install shade onto fitters by fastening with
counter ring.
5. Install light bulb (not included). See relamping
label at socket area for type and maximum
allowed wattage.
VS23001, VS23002, VS23003, VS23004
(E) 5/2012
