EUCHNER Identsystem CIS3A-Mini
084727-01-02/03 Subject to technical modification Page 20 / 22
Bestell-Nr.
077940

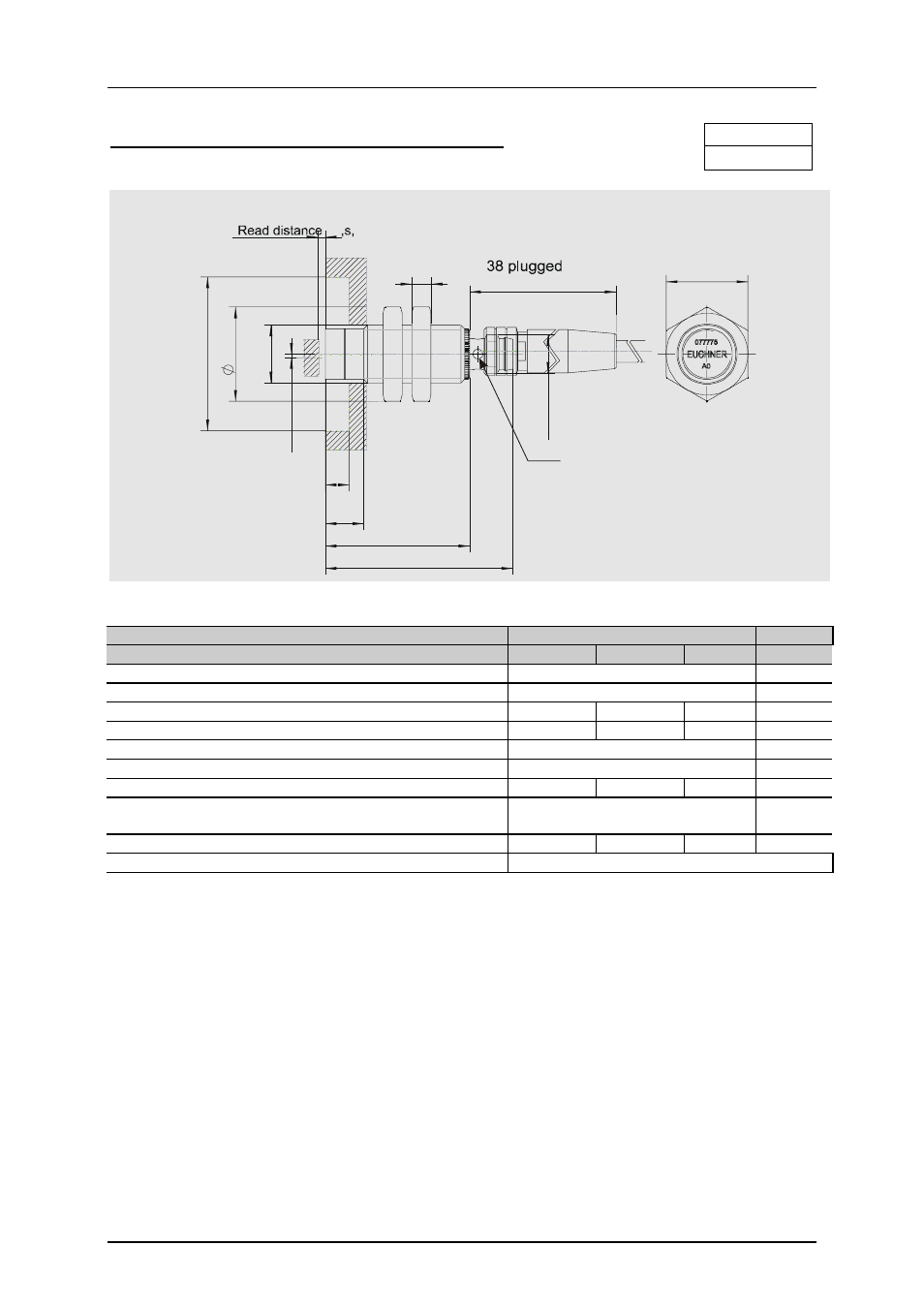

9 Technical data of the read/write head CIT3
Notes on installation
· The length of the connection cable for the read head must not be increased (inline connection
not permitted).
all dimensions in mm
Technical data
Parameter Value Unit
min. nom. max.
Housing Brass, nickel plated
Environmental protection IP 65
Operating temperature 0 +50 °C
Storage temperature -25 +70 °C
Installation method non flush
Operating voltage U
B
via CIA3SX
Dynamic data transmission to CIA3SX 2 kBit/s
Connection 4-pole M8 plug connector
(shielded)
Cable length 5 15 m
LED indicators ACTIVE-LED yellow: Data carrier active
17
5
32 19,
7
C
e
nt
e
r o
ffs
e
t
,m
,
50 unplugged
M1
2x
1
8
30
39
M
LED
8x
1
4
1)
1) 1)
Free zone
