EUCHNER Identsystem CIS3A-Mini
084727-01-02/03 Subject to technical modification Page 19 / 22
Bestell-Nr.
077910

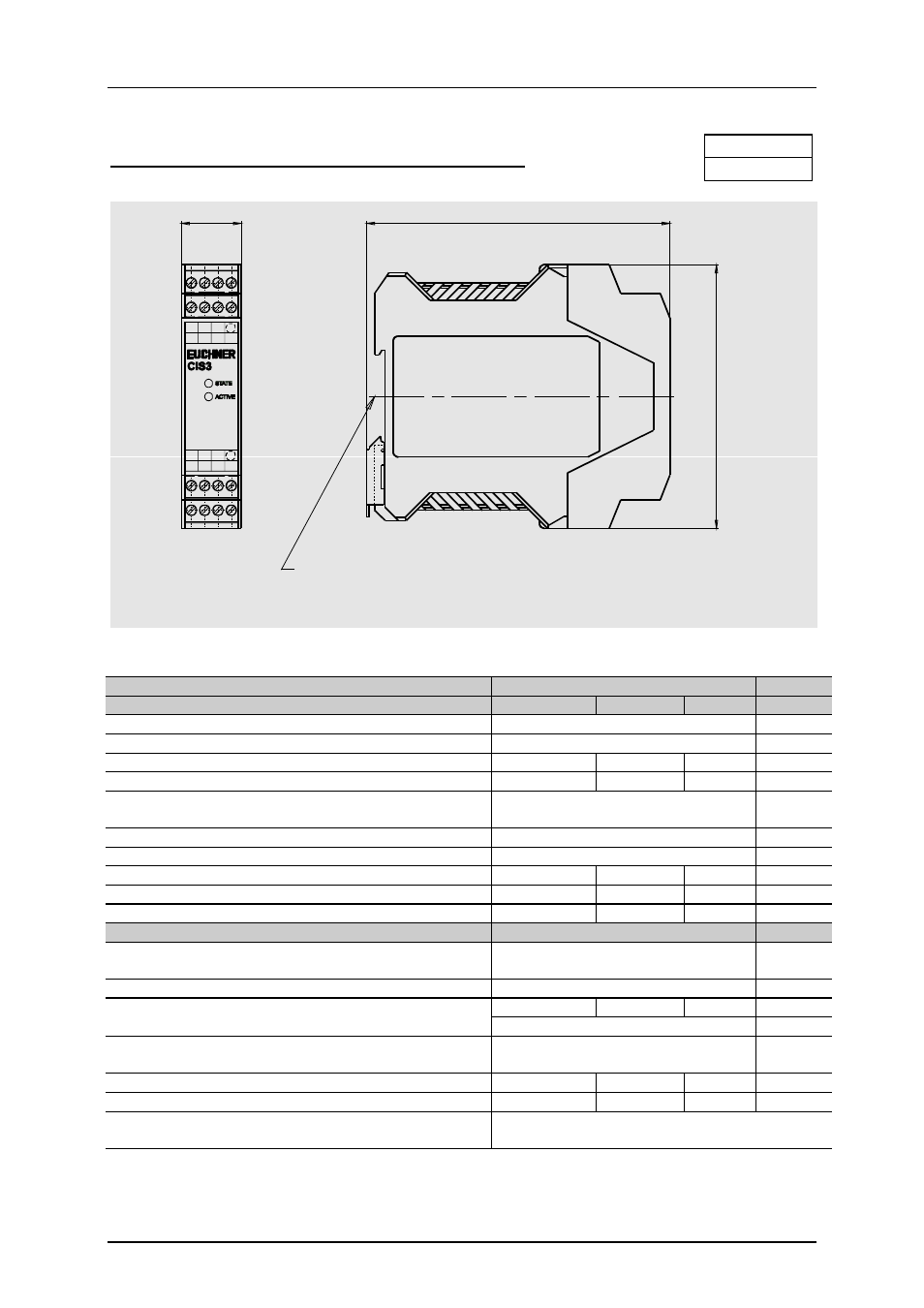

8 Technical data of the evaluation unit CIA3SX
* The ACTIVE-LED lits yellow, if an operating data carrier is in the active range
all dimensions in mm
35 mm rail according
to DIN 46277
Technical data
Parameter Value Unit
min. nom. max.
Housing Plastic (PA 6.6)
Environmental protection IP 20
Operating temperature 0 +55 °C
Storage temperature -25 - +70 °C
Installation method 35 mm rail in accordance with
DIN 46277
Number of read/write heads 1 read/write head
Connection type Plug-in screw terminals
Connection terminals 0,14 - 2,5 mm 2
Operating voltage U
B
(regulated, residual ripple < 5%) 20 24 25 V=
Permanent power consumption (without load) - 120 140 mA
Interface, data transfer
Interface to the host control
serial RS232 / RS422
(selectable via DIP switch)
Data transfer protocol 3964R
9,6 28,8 kBaud Baud rate
(selectable via DIP switch)
Data format 1 start bit, 8 data bits, 1 parity bit
(even parity), 1 stop bit
Cable length RS232 5 m
Cable length RS422 1000 m
LED indicators STATE-LED green: “Power On" (in operation)
ACTIVE-LED* yellow: "Data carrier active"
114 22,5
99
A B A1 B1
0V TxD RxD
24V 0V
H1 H2 LED
0V OUT
S2
S1
