Operating Instructions Read Heads/Actuators for Evaluation Units CMS
EUCHNER GmbH + Co. KG Kohlhammerstraße 16 D-70771 Leinfelden-Echterdingen Tel. +49/711/75 97-0 Fax +49/711/75 33 16 www.euchner.de [email protected]
Subject to technical modifications; no r
esponsibility is accepted for the accuracy of this information.
© EUCHNER GmbH + Co. KG
1
02384-03-07/11 (translation of the original operating instructions)
X Y
Z
Alignment
marking
Approach
direction
X Y
Z
Approach
direction
Alignment
marking
X Y
Z
Approach
direction Alignment
marking
Design CMS-.-A...
Design CMS-.-B...
Design CMS-.-C... / CMS-.-E...

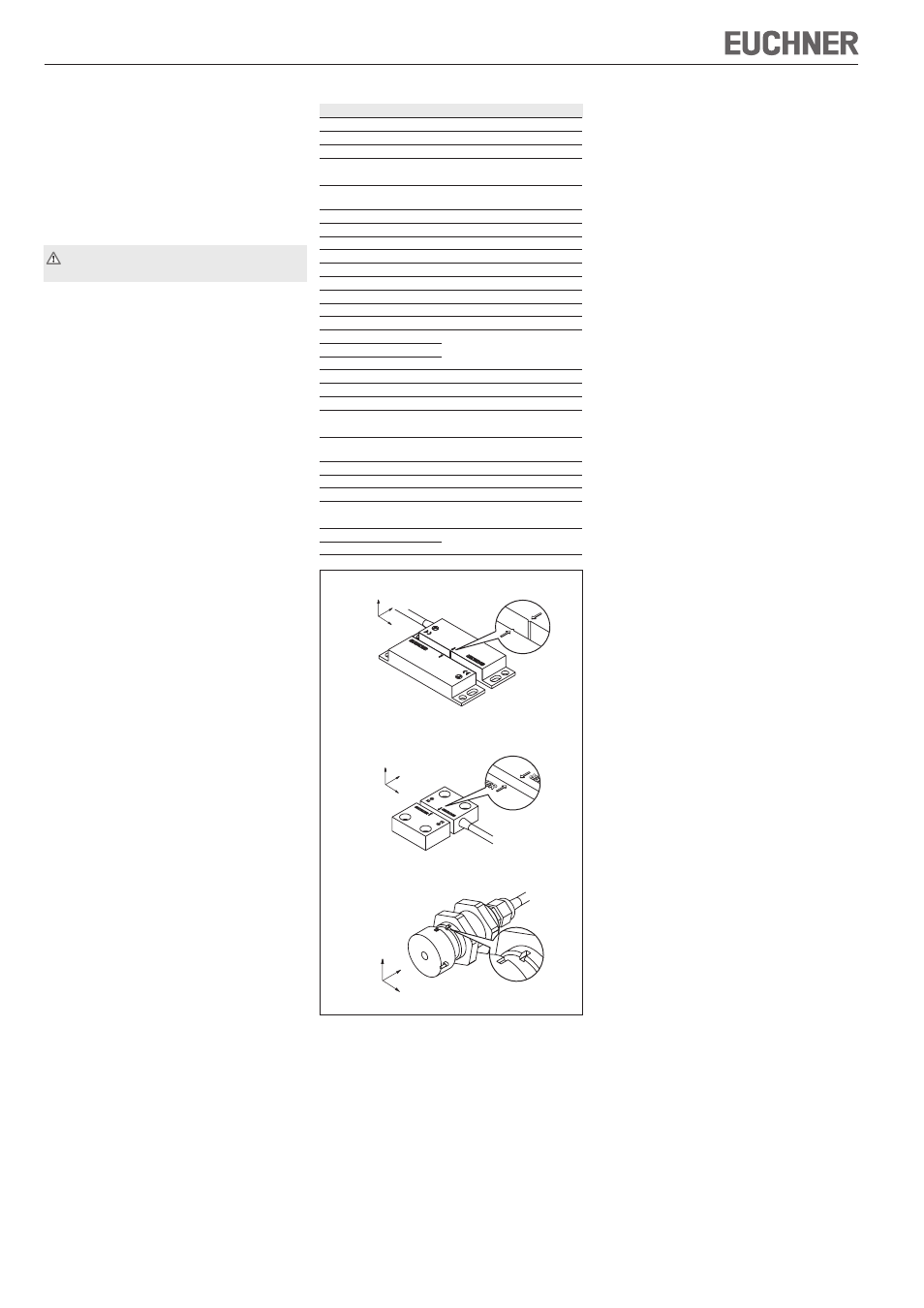

Figure 1: Alignment of read head and actuator
Technical data
Parameter Value
Read heads
Housing material
Reinforced PPS
Ambient temperature -20 ... +60 °C
Degree of protection
acc. to EN 60529
IP 67
Installation position Any, alignment with actuator should
be kept in mind (markings)
Connection M8 plug connector
Switching voltage 24 V
Switching current I
e
max. 0.5 A
Method of operation Magnetic, reed contact
Mechanical life 100x10 6 operating cycles
Vibration resistance 10 ... 55 Hz, amplitude 1 mm
Shock resistance 30 g / 11 ms
EMC compliance According to EN 60947-5-3
Center offset m from actuator ± 2.5 mm at a distance of s = 3 mm
Switch-on distance s
ao
See table listing
Switch-off distance s
ar
combination options
Switching contacts
Actuator
Housing material
Reinforced PPS
Ambient temperature -20 ... +60 °C
Degree of protection
acc. to EN 60529
IP 67
Installation position Any, alignment with read head
should be kept in mind (markings)
Method of operation Magnetic
Vibration resistance 10 ... 55 Hz, amplitude 1 mm
Shock resistance 30 g / 11 ms
Center offset m
from read head
± 2.5 mm at a distance of s = 3 mm
Switch-on distance s
ao
See table listing
Switch-off distance s
ar
combination options
Service and inspection
Remove iron swarf from the read head and actuator
at regular intervals.
Only use solvent-free detergents for cleaning the
actuators and read heads!
Regular inspection of the following is necessary
to ensure trouble-free long-term operation:
Perfect switching function
Secure attachment of the components
Loose connections.
In the event of damage or wear and tear, the
damaged system component must be replaced.
Liability coverage is void under the
following circumstances:
incorrect use
non-compliance with safety regulations
installation and electrical connection not
performed by authorized personnel
failure to perform functional checks.
