Operating Instructions Safety Switch CES-AH-C03-AH-SM
19

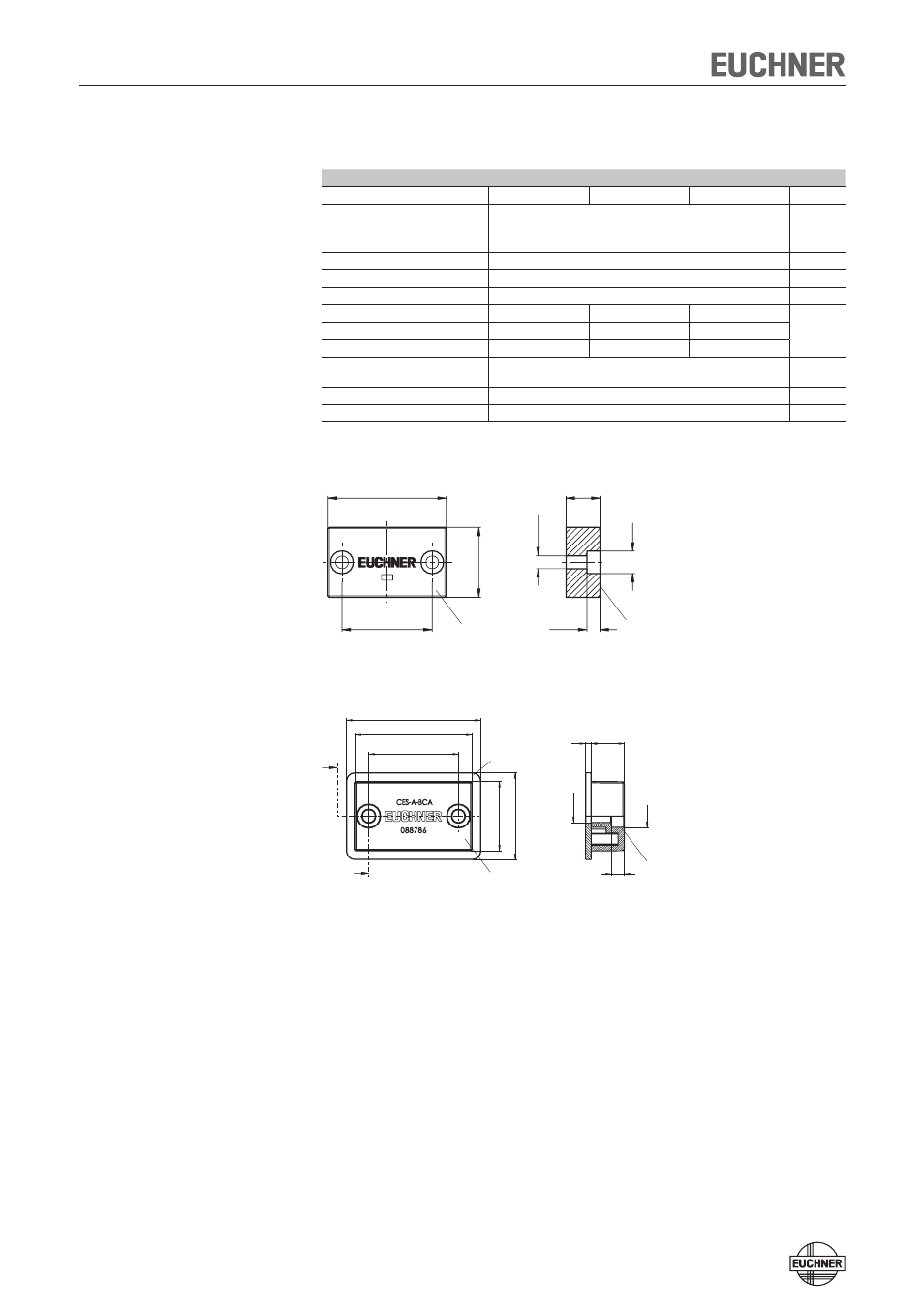

Technical data for actuator CES-A-BBA/CES-A-BCA
Parameter Value Unit
min. typ. max.
Housing material
- CES-A-BBA Fortron, reinforced thermoplastic, fully encapsulated
- CES-A-BCA Plastic PE-HD without reinforcement, fully encapsulated
Flat seal material (CES-A-BCA only) Fluororubber 75 FPM 4100
Dimensions 42 x 25 x 12 mm
Weight 0.02 kg
Ambient temperature
°C - CES-A-BBA - 25 - + 70
- CES-A-BCA - 25 - + 50
Degree of protection acc. to EN
IEC 60529
IP67/IP69K
Installation position Active face opposite read head
Power supply Inductive via read head
Dimension drawing CES-A-BBA
Dimension drawing CES-A-BCA
CES-A-B 071840
25
ш8 ш4
,5
42
32 ±0,1
12
4,6
Active face Active face
2 safety screws M4 x 14
included
42
32
± 0,10
25 31
48
∅
4,
5
∅
8
2 12
4,6
Active face
Active face
2 safety screws M4 x 14
included
Flat seal
